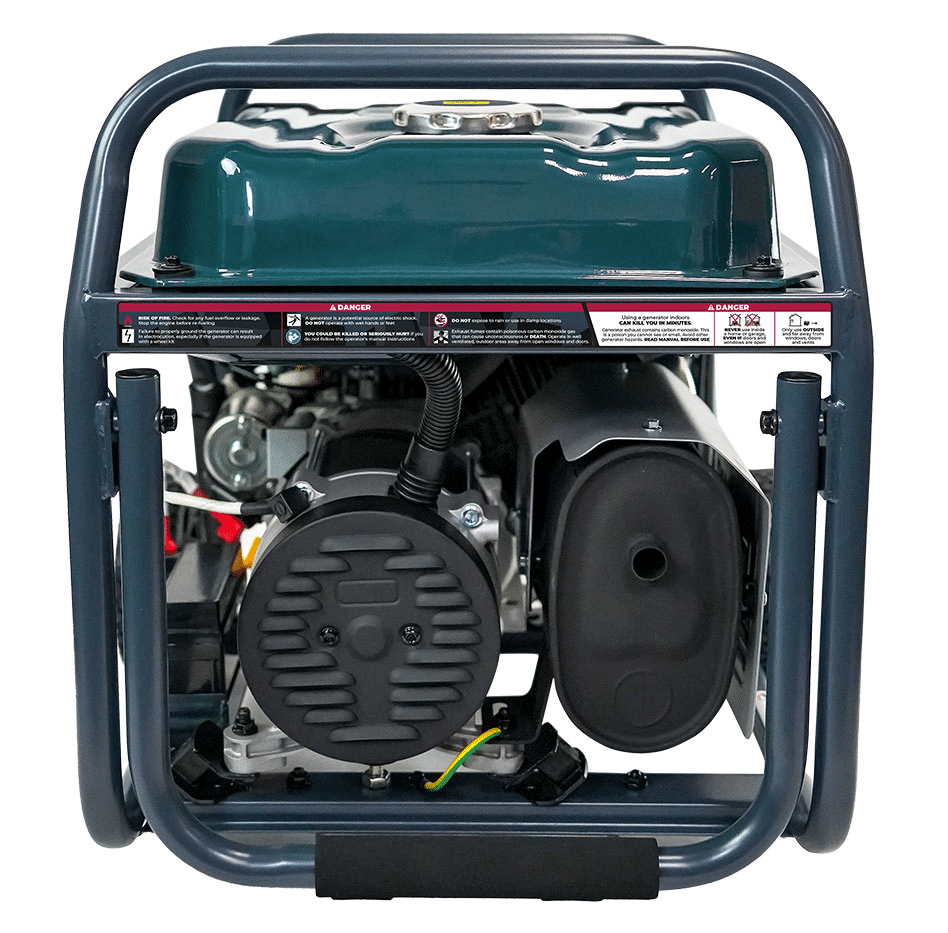

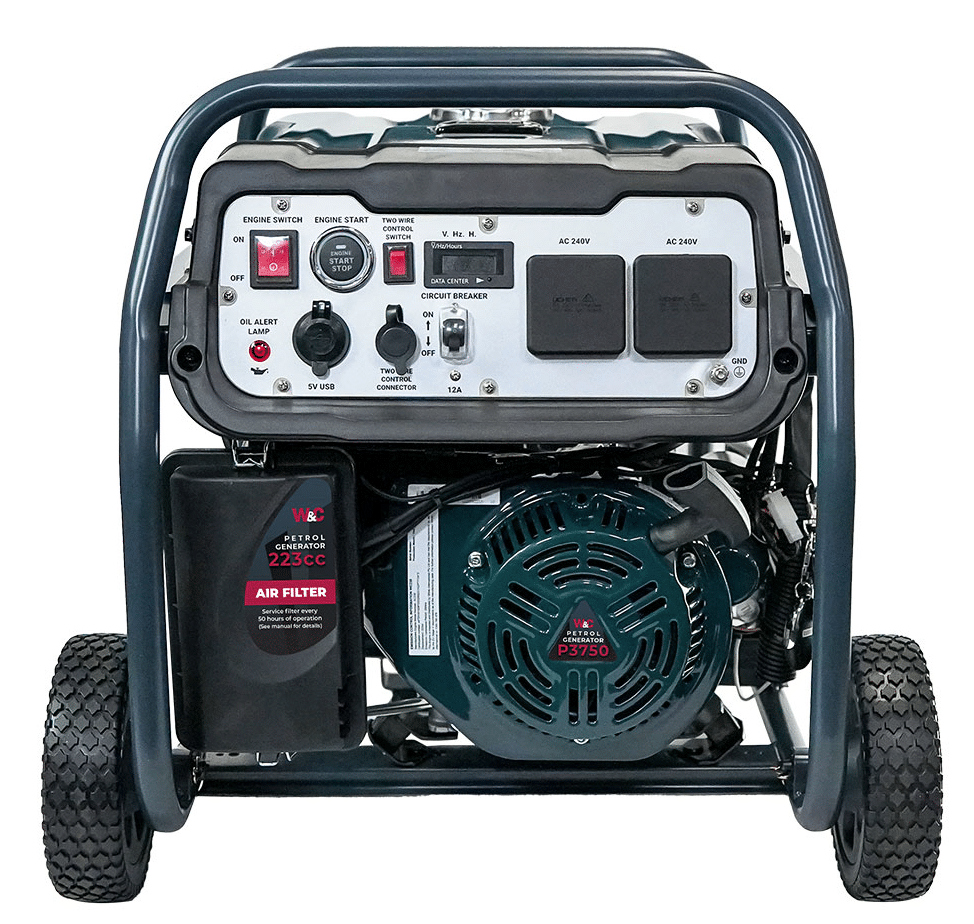

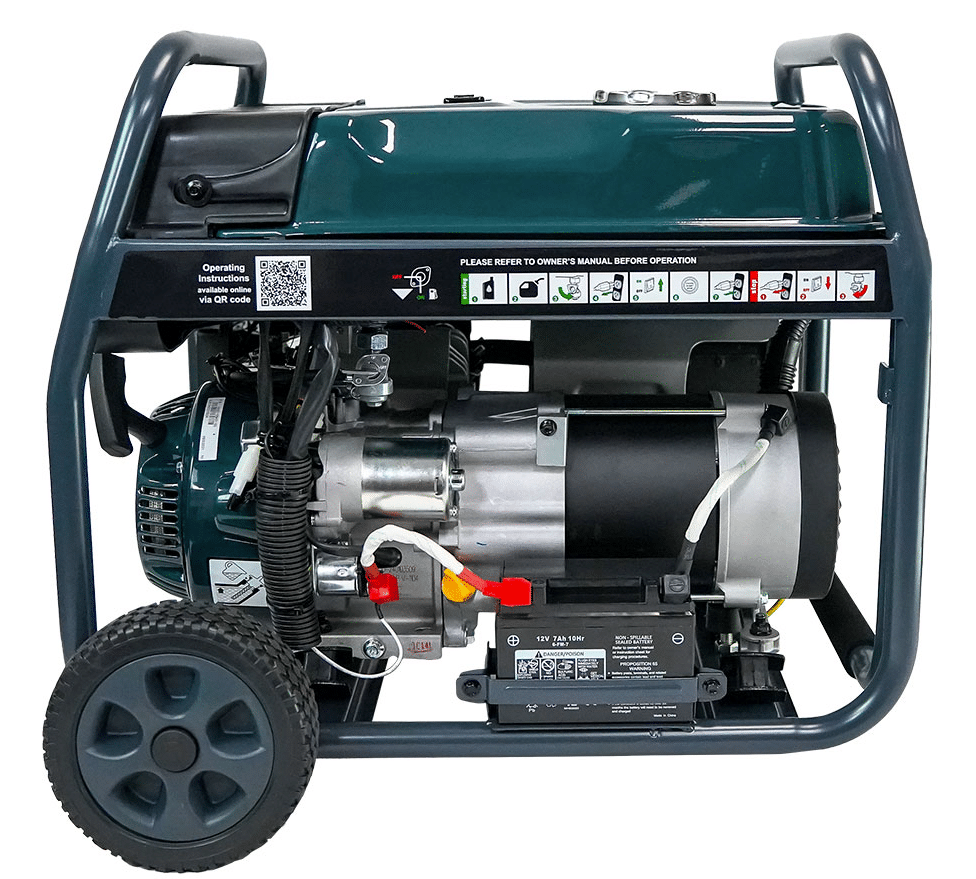

Welling & Crossley Portable Generator
(811625)
The Welling and Crossley P3750 is an AVR (automatic voltage regulated) generator with E-start. Supplied with transport kit (handles and wheels), this generator is Euro 5 emissions compliant. The generously sized fuel tank and economical motor allows longer run times. The WC-P3750 packs a lot of power in a compact footprint.
Applications
- Work sites to power small to medium tools and lights
- Home backup power for essential appliances
- Outdoor events for lights, sound systems etc
- Mobile businesses or market stalls for powering small appliances
Features
- Euro 5 emission compliant petrol electric start engine with long-range fuel tank for longer run times.
- Automatic Voltage Regulator for stable power output.
- Steel frame with fold-out wheelbarrow kit (wheels & handles) included for easy transportation and mobility, even on rough terrain
- 2 x IP44 Outlets (single phase – 15 Amp)
- USB A and USB C outlets
- Recoil, Push-button electric, Wireless remote or 2 wire remote starting
- 4-Stroke, air cooled, OHV engine
- Large 15L fuel tank
- Digital V/F/T Display (Volts, Frequency, Time)
- Low oil alarm, overload alarm, output indicator
2 year Welling and Crossley Warranty (battery excluded)
**Optional Large Dust Cover $99.00
Keep your generator protected from dirt and moisture with a handy cover.
- Convenient pocket
- Drawstring to ensure a tight fit
- Access holes to allow easy handling and securing
- Available in 2 sizes to fit most generators
Dimensions (LxWxH): 820 x 550 x 560mm
Technical Data
ALTERNATOR RATING | 3.75kVa with AVR |
POWER FACTOR | 1.0 |
MAX. AC OUTPUT | 3200W |
RATED AC OUTPUT | 2800W |
RATED MOTOR SPEED | 3000rpm |
RATED VOLTAGE | 230/240V AC 1 Ph / 50Hz |
ENGINE MODEL | WC-230: Euro 5 emissions compliant |
ENGINE TYPE | 4 stroke, OHV, air cooled. Transistor ignition |
DISPLACEMENT | 223cc |
OIL | SAE10W-30 |
SPARK PLUG | Champion RN9YC |
DECIBELS @ 7M DISTANCE | 97 dBA |
FUEL TYPE | Petrol – 91 octane unleaded. |
FUEL TANK CAPACITY | 15L |
FUEL CONSUMPTION | Approx 0.6 L/Hr @ 1/4 load |
PACKAGING (LXWXH) | 605 x 470 x 507mm |
DIMENSIONS | L:600mm W:580mm H:560mm |
Weight: 45KG
