BIA-1VMS3/11T-DRIVE – VMS Electronic Drive Kit
BIA-1VMS3/11T-DRIVE – VMS Electronic Drive Kit - Image 2

BIA-1VMS3/11T-DRIVE – VMS Electronic Drive Kit

Free Delivery Australia Wide

The Bianco NXT Summit Series vertical multi-stage pumps are an efficient solution for various fluid transfer applications – particularly in water supply, irrigation and industrial processes.

BIA-1VMS3/11T-DRIVE – VMS Electronic Drive Kit

$4,100.00

SKU: BIA-1VMS3/11T-DRIVE Categories: , , , ,

BIA-1VMS3/11T-DRIVE – VMS Electronic Drive Kit

BIA-1VMS3/11T-DRIVE

(18L 25Bar)

Incudes BIA-DRIVE3-22 Controller

The Bianco NXT Summit Series Drive Controller Kits are an all in-one solution designed to achieve advanced control, enhanced protection and optimal energy efficiency with the Bianco NXT range of Variable Frequency Drives. Featuring the latest touch screen technology and an intuitive user friendly menu, these kits provide easy access to all the information you need. SUMMIT SERIES VMS solutions are designed for performance, reliability and ease of use.

Product Details

The NXT DRIVE Series are a range of pump-specific Variable Frequency Drives designed for the Australasian market with both the end-user and the technician in mind. Featuring a full colour touch screen interface for clear concise system information, fault codes and protection notices with a handy setup wizard so you’re always in control. NXT DRIVE is both simple to set up and to use. Perfect for achieving instant pressure management of a single pump with advanced control, enhanced protection and optimal energy efficiency

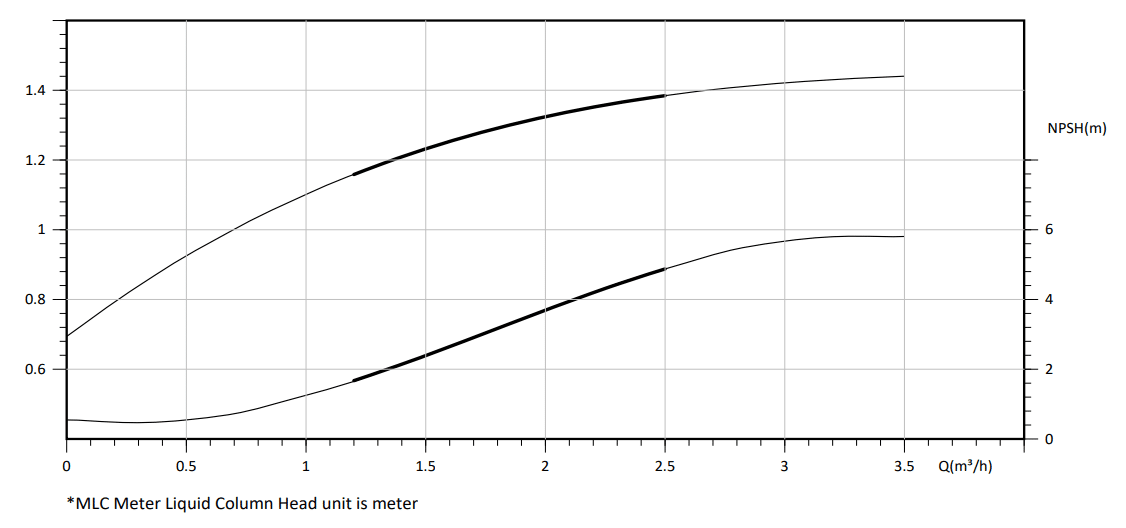

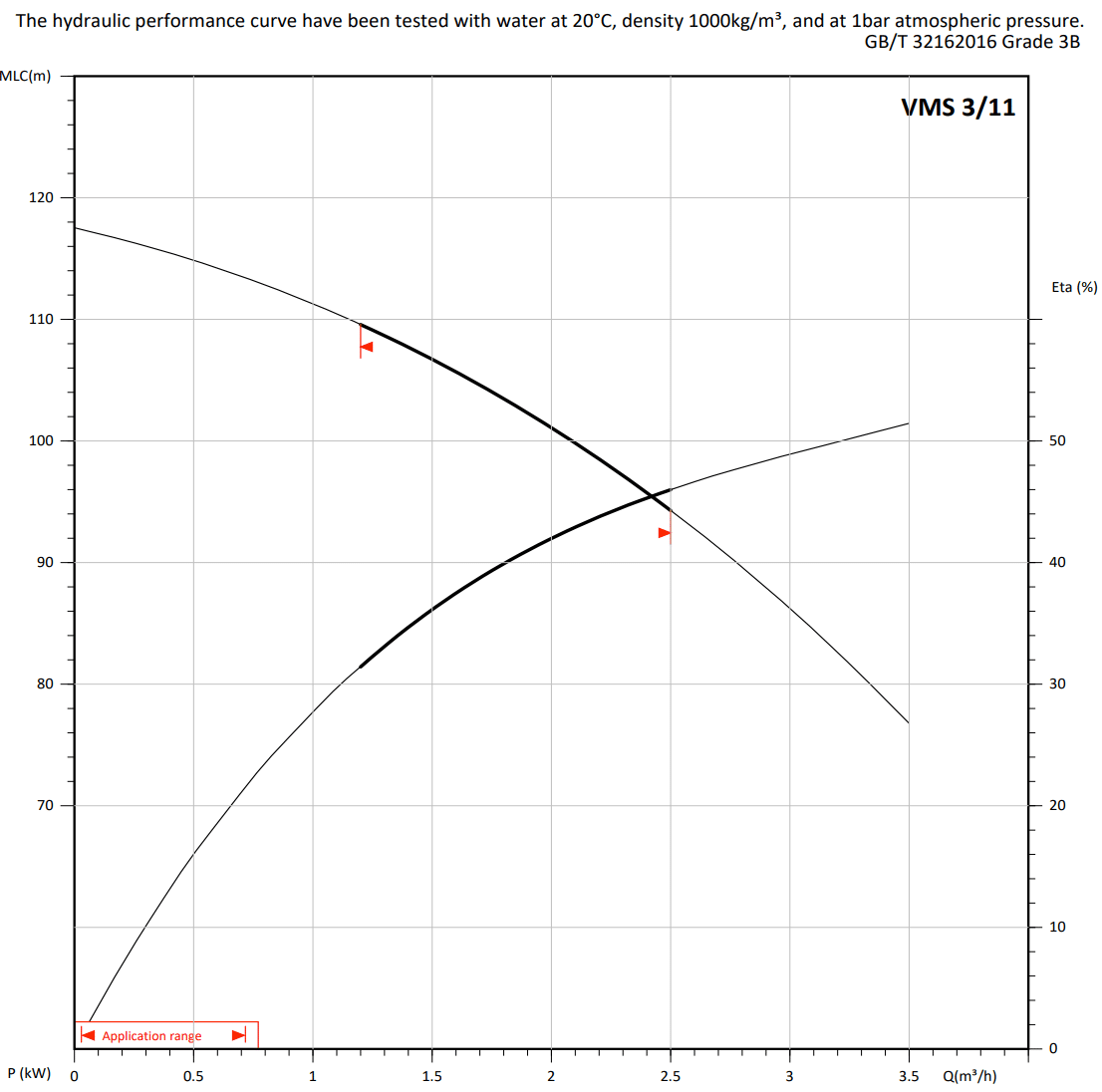

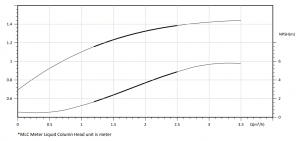

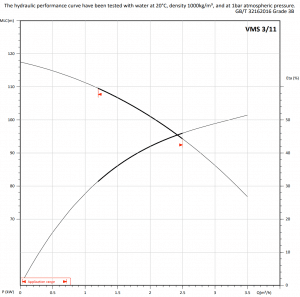

Pump Curve



Kit Includes

  • VMS Pump
    NXT Drive (Variable Frequency Drive)
    4-20mA 16 bar Pressure Transducer
    Stainless Steel Counter Flanges
    Gasket to suit Counter Flanges
  • Galvanised Single Pump Base
    Watermarked Spring Check Valve
    Manifold (304 Stainless Steel)
  • 30 Bar Liquid Filled Pressure Gauge
  • Outlet side SS Isolation Valve
  • BPT18 25 bar rated Pressure Tank with304 SS 25mm isolating valve

Features

• Control and protect pumps up to 2.2 kW (5.1 amps)
• Variable frequency control to achieve constant pressure control
• Minimise wasted energy and reduce the need for large pressure tanks
• ‘Soft-start’ with low motor start current
• Flow, pressure and current protections
• RS485 comms
• 25 plain language fault messages
• Provides protection from; dry run, high and low voltage, input and output short circuits, high and low water pressure, input and output phase failure, high temperature and sensor faults
• 24V, 10V and 5V supply circuits
• Digital and analogue (voltage or current) inputs
• Relay and analogue outputs
• Multi-functional terminals

Technical Specifications

Brand Bianco NXT
Product Type Vertical Multi Stage – Three Phase
Amps 4.41
Flow Range Category a. 1 – 99 L/min
Flow Rate (L/min) 33
Hp 3
Kilo Watts 2.2
Max Flow (L/min) 67
Max Head (m) 116
Port Size Outlet DN25
Volts 240
Watts 1500
Max Pressure (bar) 33
Min Temp (degrees celsius) -15
Max Temp (degrees celsius) 120
Water Resistant IP55
Pack Weight (KG):
31.6



Cutaway & Materials



Brand

Bianco Pumps

Bianco Pumps is a brand of water pumps and pumping systems that specializes in providing solutions for various water-related applications. Product Range: Bianco Pumps offer a range of water pumps designed for different purposes. This could include submersible pumps, surface pumps, pressure pumps, and more. These pumps may be used for applications such as irrigation, domestic water supply, wastewater management, and industrial processes. Quality and Performance: Reputable pump manufacturers like Bianco Pumps typically focus on delivering high-quality products with reliable performance. This may involve using durable materials, precision engineering, and adherence to industry standards to ensure their pumps operate efficiently and effectively. Customer Support: ASC supports Bianco Pumps, and we provide customer support services to assist with pump selection, installation recommendation, maintenance, and troubleshooting. This can be crucial for customers who need guidance in choosing the right water pump for their specific needs or require assistance with any issues that may arise. Innovation: Leading pump manufacturers like Bianco Pumps continuously work on improving their products through research and development efforts. They may introduce innovative features and technologies to enhance pump performance, energy efficiency, and durability. Warranty and After-Sales Service: Bianco Pumps, like other reputable pump manufacturers, offer industry standard warranties on their products to provide customers with peace of mind. Additionally, they have an after-sales service network to handle repairs and maintenance. Most Bianco Pumps comes with a two year warranty. Environmental Considerations: Bianco Pumps are increasingly conscious of environmental concerns. They design and promote energy-efficient pumps to reduce electricity consumption and minimize the environmental impact of their products. Market Presence: The availability of Bianco Pumps products may vary by region, however ASC provides national delivery of the entire range of Bianco Pumps. This ensures we can find the right product and reach you efficiently. For the most up-to-date and specific information about Bianco Pumps, including their product offerings, innovations, and customer support services, contact ASC Water Tanks on (03) 8795 7715 or email at [email protected].
