BIA-3VMS5/8T-DRIVE – VMS Electronic Drive Kit
BIA-3VMS5/8T-DRIVE – VMS Electronic Drive Kit - Image 2

BIA-3VMS5/8T-DRIVE – VMS Electronic Drive Kit

The Bianco NXT Summit Series vertical multi-stage pumps are an efficient solution for various fluid transfer applications – particularly in water supply, irrigation and industrial processes.

Free Delivery Australia Wide

BIA-3VMS5/8T-DRIVE – VMS Electronic Drive Kit

$14,050.00

SKU: BIA-3VMS5/8T-DRIVE Categories: , , , ,

BIA-3VMS5/8T-DRIVE – VMS Electronic Drive Kit

SKU: BIA-3VMS5/8T-DRIVE (812442)

(18L 10Bar)

Incudes BIA-NXT-DRIVE3-22 Controller

The Bianco NXT Summit Series Drive Controller Kits offer a comprehensive, all-in-one solution for advanced control, enhanced protection, and optimal energy efficiency with the Bianco NXT Variable Frequency Drives.

These kits feature cutting-edge touchscreen technology and a user-friendly, intuitive menu, providing effortless access to all necessary information.

Designed for superior performance, reliability, and ease of use, the SUMMIT SERIES VMS solutions are a robust choice for your needs.

*Triple pump build*

Product Details

The NXT DRIVE Series are a range of pump-specific Variable Frequency Drives designed for the Australasian market with both the end-user and the technician in mind. Featuring a full colour touch screen interface for clear concise system information, fault codes and protection notices with a handy setup wizard so you’re always in control. NXT DRIVE is both simple to set up and to use. Perfect for achieving instant pressure management of a single pump with advanced control, enhanced protection and optimal energy efficiency.

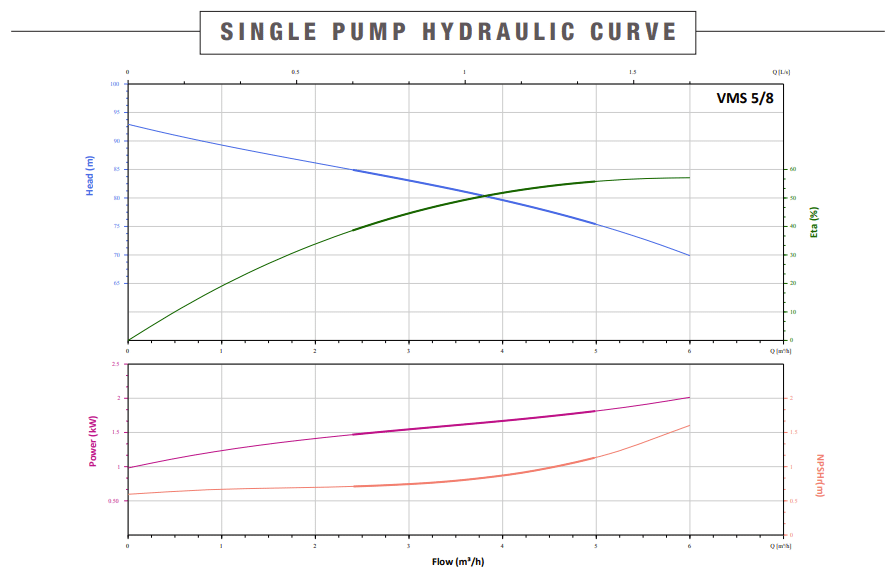

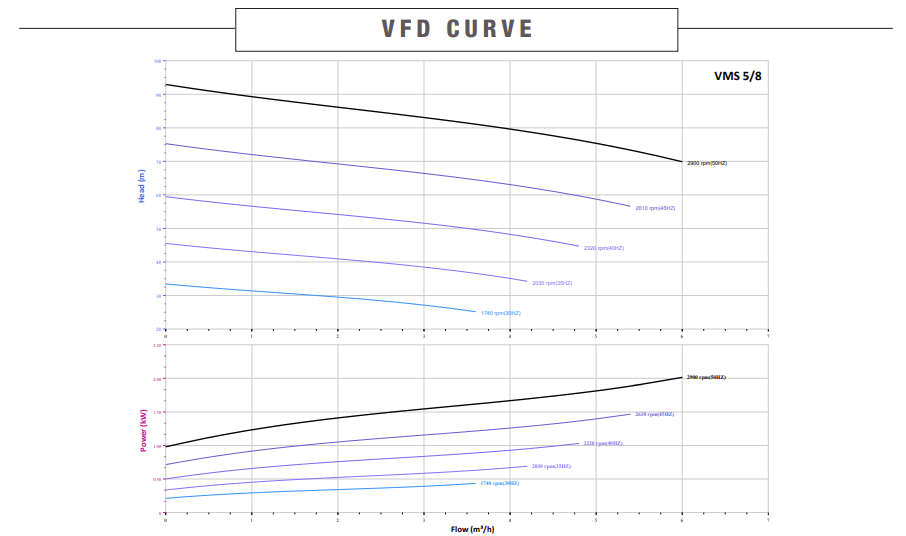

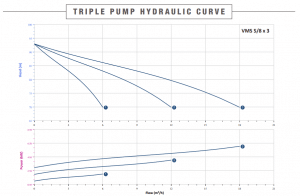

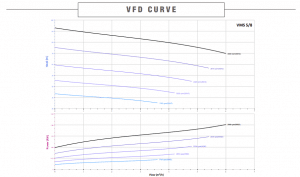

Pump Curve




Kit Includes

  • Galvanised triple pump base
  • 3 x VMS Pumps
  • 3 x NXT Drives (Variable Frequency Drive)
  • 4-20mA 10 bar Pressure Transducer
  • Stainless Steel Counter Flanges
  • Gaskets to suit Counter Flanges
  • Watermarked Spring Check Valve
  • Manifold (304 Stainless Steel)
  • 30 Bar Liquid Filled Pressure Gauge
  • Outlet side SS Isolation Valve
  • BPT18 10 bar rated Pressure Tank with304 SS 25mm isolating valve

Controller Features

• Control and protect pumps up to 2.2 kW (5.1 amps)
• Variable frequency control to achieve constant pressure control
• Minimise wasted energy and reduce the need for large pressure tanks
• ‘Soft-start’ with low motor start current
• Flow, pressure and current protections
• RS485 comms
• 25 plain language fault messages
• Provides protection from; dry run, high and low voltage, input and output short circuits, high and low water pressure, input and output phase failure, high temperature and sensor faults
• 24V, 10V and 5V supply circuits
• Digital and analogue (voltage or current) inputs
• Relay and analogue outputs
• Multi-functional terminals

Pump Specifications

Brand Bianco NXT
Product Type Vertical Multi Stage – Three Phase
Amps 8
Flow Range Category b. 200 – 299 L/min
Flow Rate (L/min) 201
Hp 3
Kilo Watts 2.2
Max Flow (L/min) 201
Max Head (m) 79
Port Size Outlet DN32
Volts 415
Watts 2200
Max Pressure (bar) 33
Min Temp (degrees celsius) -15
Max Temp (degrees celsius) 120
Water Resistant IP55
Starting: Starting via VFD
Net Weight (KG): 36KG



Cutaway & Materials
