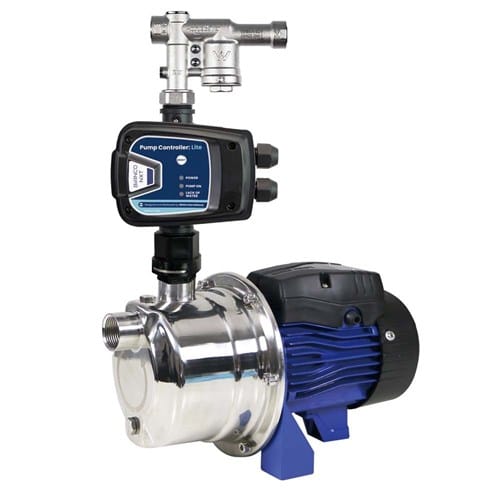

Bianco A2-INOX90S2MPCX Domestic Tank-2-Mains Switch Pump


SKU: A2-INOX90S2MPCX Categories: ,

Product Documents

Bianco A2-INOX90S2MPCX Domestic Rainsaver Pump 808361

Bianco INOX90S2MPCX pressure system pump with auto restart controller and ¾” Acquasaver.

AcquaSaver Water Diversion Valve – 3/4 Inches

Hydraulically Operated. Solid Brass Construction. Built-in Dual Check Valves. Prioritise the use of rainwater over mains water and will automatically switch over to mains water in the event of the rainwater tank running low.

The AcquaSaver® Valve is a fully automatic mechanical rainwater/mains water changeover device designed for pressure pump supply systems for harvesting rainwater for the toilet, laundry and household applications with automatic mains backup.

  • Watermark approved
  • Does not require regular maintenance
  • No electrical consumption – No electronic components
  • Solid brass construction – Fully weatherproof – Built to last
  • Suitable for any pressure pump with sufficient head pressure
  • Can be mounted in any position
  • Built-in dual check valve for backflow prevention
3/4 Inch AcquaSaver – A2 Technical Data
Acquasaver Max Mains Pressure 500Kpa
Acquasaver Max Pump Pressure 600Kpa
Acquasaver Max Flow Rate 50 l/min
Acquasaver Outlet & Inlets 3/4 “
How does the AcquaSaver Work?

The AcquaSaver® Valve will always prioritize the use of rainwater over mains water when rainwater is available and will automatically switch over to mains water in the event of the rainwater tank running low or electrical failure

When rainwater has been replenished or power has been restored to the pump, the AcquaSaver valve will automatically prioritize back to rainwater.

The pump is only active when rainwater is being drawn from the water tank, it does not operate when the AcquaSaver Valve has switched to mains position.

The pump controller starts and stops the pump when it detects a demand – for example flushing a toilet or using a washing machine.

The operating mechanism of the AcquaSaver Valve is a unique patent design, it works by hydraulic water pressure created by the pump to close one inlet fully before opening the other inlet. This ensures an extremely reliable mechanism using few moving parts and no electronic components and no energy consumption.

Technical Specifications
Brand Bianco Pumpz
Product Type Acquasaver
Suitable For Clean Water
Bar 4.9 Bar
Approval Approved For Drinking Water
Flow Range Category a. 0 – 99 L/min
Flow Rate (L/min) 78 L/min
Hp 1.0HP
kPa 489kPa
Kilo Watts 0.75 kW
Head Range Category b. 40 – 59 m
Max Head (m) 50m
Port Size Inlet 1″ BSPF inlet
Port Size Outlet 1″ BSPM outlet
Powered Electric
Taps 7 Taps
Volts 240 V
Warranty (months) 24 Months
Watts 750 Watts
AS/NZS 4020 Drinking Water Approved.




Weight 15 kg
Dimensions 45 × 24 × 46 cm
