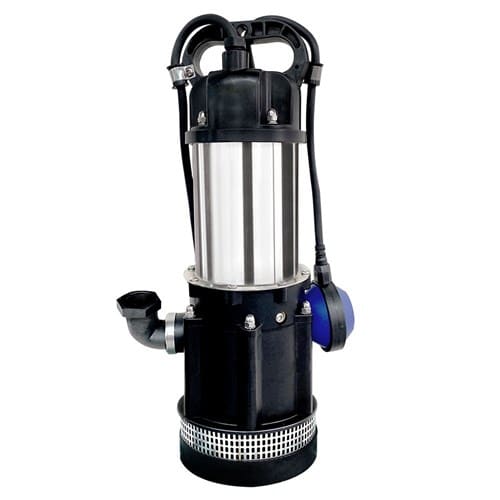

Bianco B42AC High Head Submersible Pump


Product Documents

SKU: B42AC Categories: ,

Bianco BIA-B42A High Head Submersible Pump

Submersible high head pump designed for AWTS and rainwater tanks. Fitted with noryl impellers and stainless steel strainer. AS/NZS4020 Approved for drinking water, 5 star energy rating, 550 watts.


  • Glass Filled Nylon pump body and Stainless Steel cover for strength and lightness.
  • Easy grip, nylon carry handle.
  • Dual mechanical seals (Carbon ceramic on pump side / silicon carbide in oil bath on motor side).
  • 3 Stage High Head pump with durable Noryl impellers.
  • Elevated (83mm) suction intake with Algae-Proof slotted strainer.
  • 10m Power lead and automatic Float Switch. All cables to H07RNF standard.
  • 240V Single Phase , 0.55kW 5 Star efficient motor. Built in auto-resetting thermal overloads
  • Slotted strainer
  • built in 83mm pump riser


  • Strainer design improves water flow and prevents blockage from algae growth.
  • Elevated intake draws oxygenated water from higher in tank and avoids sludge layer.
  • Leads to improved water quality with lower algae and anaerobic mater for better smelling water and cleaner clothes washing.
  • Quality pump materials assist with longer pump life while still being light to lift and lower.
  • High Head pump with low energy usage
  • Applications
  • Domestic pressure systems (with optional Press Control)
  • Pumping Clean and pre-treated water.
  • AWTS – Automated Water Treatment Systems pump out to dripper beds.
  • De-watering of cellars, basements and garages.
Technical Specifications
Brand Bianco Pumpz
Product Type Submersible Pump
Suitable For Clean Water
Bar 3.2 Bar
Flow Range Category b. 100 – 199 L/min
Flow Rate (L/min) 105 L/min
Float Float Included
Hp 0.75 Hp
kPa 320 kPa
Kilo Watts 0.55 kW
Head Range Category a. 0 – 39 m
Max Head (m) 32 m
Port Size Outlet 1″ BSPF outlet

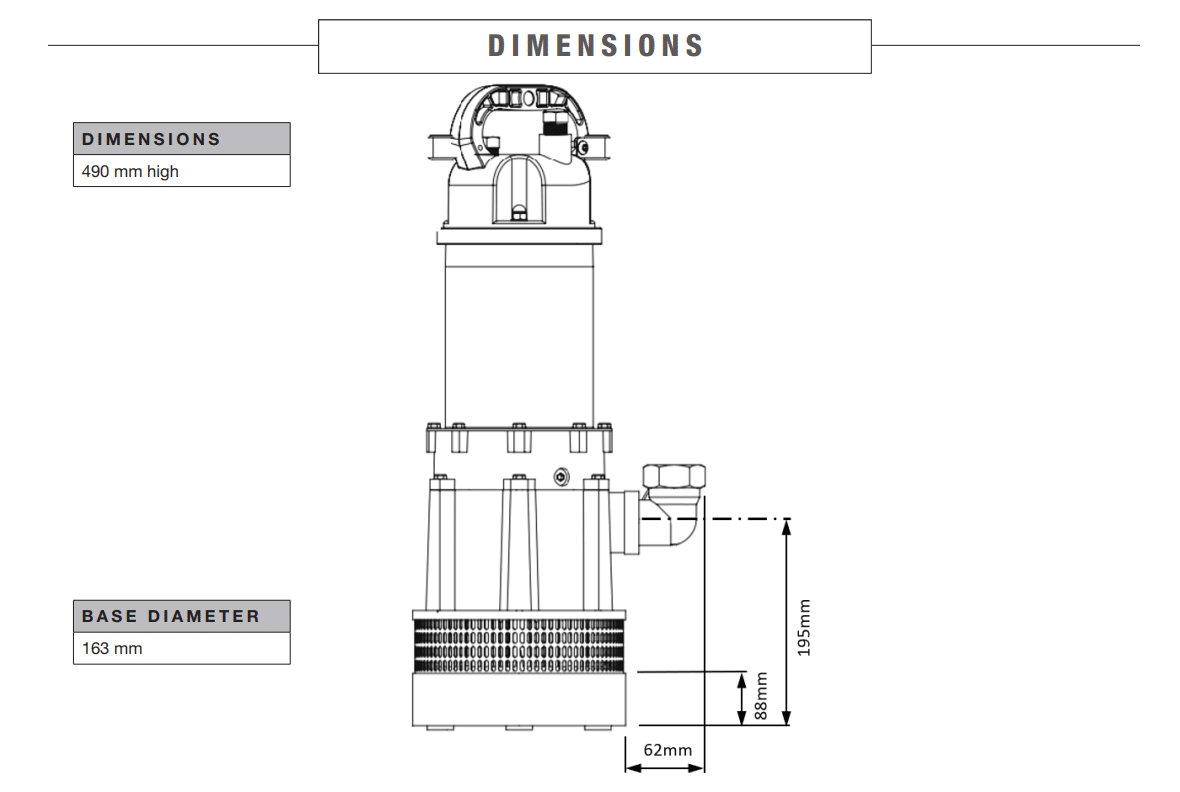

Dimensions 225L x 163W x 490H (mm)
Taps 10 Taps
Volts 240 V
Warranty (months) 24 Months
Watts 550 W


Weight 12 kg
Dimensions 28 × 22 × 54 cm
