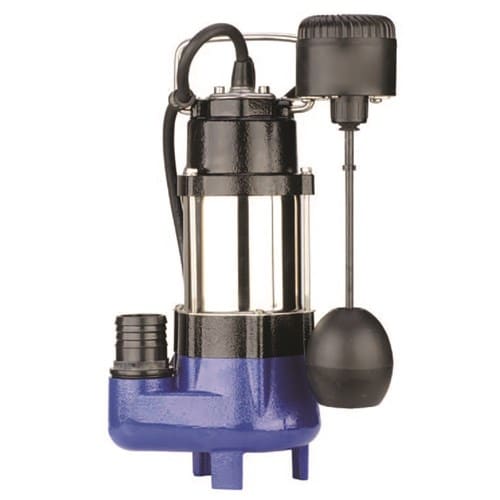

Bianco B25VAS2-FF Submersible Vortex Pump

This pump is perfect for:

  • Greywater pump-out
  • Sump emptying
  • Pumping light slurries from areas like cellars, ditches, pits, ponds and drains

Free Delivery Australia Wide

Bianco BIA-B25VAS2-FIXEDFLOAT-PUMP Submersible Vortex Pump

$295.00

SKU: BIA-B25VAS2-FF Categories: , , ,

Bianco BIA-B25VAS2-FIXEDFLOAT Submersible Vortex Pump

811131

The BIA B25VAS2-FF is a durable submersible vortex drainage pump that features a cast-iron, semi-vortex impeller. With a 15mm free passage, this pump is well-suited for general drainage of clean or slightly dirty water. The vertical, “fixed” float makes it compact and ideal for use in confined spaces.

Automatic operation. Quality pump materials and construction to ensure reliable operation. Includes carry handle, industrial grade coating and 10m H07RN-F Neoprene power lead and float lead.
Bianco Pumpz represents ‘best in the class’, dependable pumping solutions. Easy to install and use.
Ideal to pump clean or slightly dirty water. Discharge outlet size 1-1/4″ BSPF. 2 Year Warranty.

The pump is characterised by:

  • Cast iron pump body and impeller for durability
  • Fully automatic operation.
  • Dual mechanical seal – carbon/ceramic
  • Handy carry handle
  • Universal hose tail adaptor
  • 240V single phase motor with in-built auto reset thermal overload.
  • 10m of power cable.
  • Dewatering of cellars, etc.
  • Pumping clean or slightly dirty water
  • Flows to: 150 L/min
  • Heads to: 7.5m
  • Weight: 11kg



Technical Specifications
RATED POWER (W) 250W
MAX. FLOW [LPM] 150 lpm
MAX. HEAD [M] 7m
WORKING TEMPERATURE < 35°C
LIQUID TEMPERATURE 2°C – 35°C
MAX. IMMERSION DEPTH 5m
MAX. DIA. OF PARTICLE < 15mm
MOTOR DUTY S1 Continuous
MOTOR PROTECTION LEVEL Class B
MOTOR PROTECTION In-built auto re-setting thermal overload
CAPACITOR 9 uF +/-5% 450V
RATED VOLTAGE 220V-240V 50 Hz
RATED CURRENT 1.8A @ 230V
POWER CABLE TYPE 10m H07RN-F
PROTECTION CLASS IP68
IMPELLERS Single Cast Iron Impeller
HYDRAULIC BODY Cast Iron
OUTLET 1 1/4” DN with universal hose tail
SEALS Dual Mechanical Seal and lip seal
AUTOMATION FUNCTION Vertical Float Switch
NET WEIGHT (KG) Pump only 10 kg
PACKAGE DIMENSION 225L x 205W x 385H (mm)
Port Size Outlet 1-1/2″ Outlet
Port Size Outlet 1-1/4″ BSPF
Powered Electric
Volts 240 V
Warranty (months) 24 Months

To ensure adequate motor cooling, as per the user manual, exercise care matching pump and chamber size to prevent the risk of cycling (too many stops/ starts per hour) or continuous running.

Weight 11 kg
Dimensions 23 × 20 × 38 cm
Product Type

Vortex Pump

Suitable For

Dirty Water With Soft Solids

Bar

0.7 Bar

Amps

1.6 Amps

Flow Range Category

b. 100 – 199 Lt/min

Flow Rate (Lt/min)

133 LT/min

Float

Float Included

Hp

0.25 Hp

Kilo Watts

0.18 kW

Head Range Category

a. 0 – 39 m

Head (max)

7m

Powered

Electric

Volts

240 V

Warranty

24 months

Pack Weight

10 Kg

Brand

Bianco Pumps
