Bianco Vulcan 3.0Hp Single Stage Petrol Engine Pump
The pump is a portable light weight self priming engine driven pump supplied ready to operate with hose fittings and suction strainer.
Technical Specifications
| Brand | Bianco Pumpz |
| Product Type | Engine Driven Pump |
| Suitable For | Water Transfer |
| Fuel | Petrol |
| Hp | 3.0 |
| Max Flow (L/min) | 300 |
| Max Head (m) | 80 |
| Port Size Outlet | 1 x 1-1/2″ + 2 x 1″BSPM |
| Suction Depth | 8m |
| Dimensions | 464L x 378W x 400H |
| Warranty (months) | 24 Months |
Liquid:
Liquid Type: Clean Water
Clean water temperature range: 2 – 35o C
Materials:
Pump Body: Aluminium
Impeller: Aluminium
Mechanical Seal: Carbon/Ceramic/Nitrile
O rings: Nitrile
Installation:
Maximum ambient temperature: 40
C
Self Priming Time at 5m: <120 seconds
Weight:
15.5kg
Packaged Weight (KG): 17.50
APPLICATIONS
• Water transfer
• Tank filling
• De-watering
• Dust Suppression
FEATURES
- Custom Built Frame
- Spark Arrester
- Full Serviceability
- Single cylinder, 4 stroke, forced air cooled, OHV engine
- Heads to 25 metres
- Flows to 300 l/min
- Suction to 8m
- 1 x 1.5” 2 x 1” BSP male discharge ports
- 1 x 1.5” BSP male suction port
- Rubber mounting feet
- Carry Frame
- Full Serviceability
PERFORMANCE CURVE

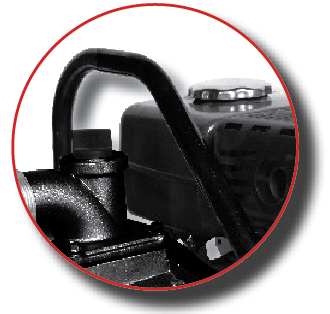

Roll Frame
Custom engineered easy access roll frame that provides ongoing protection of the pump and engine whilst being fully accessible for ease of servicing.
Rubber Mounting Feet
Integrated rubber mounting feet pre fitted to the frame reducing vibration and movement during operation.

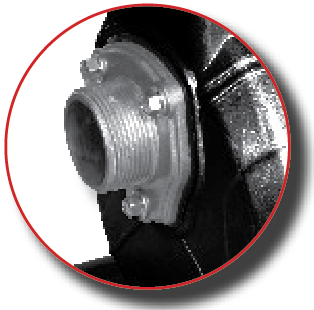

Discharge Port
1 x 1½” BSP male discharge port

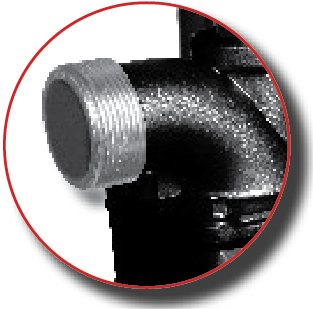

Suction Port
1 x 1½” BSP male suction port
