Bianco Vulcan 5.0Hp Single Stage Engine Tanker Pump
Powered by Briggs & Stratton.
The pump is a compact self priming engine driven pump supplied ready to operate with hose fittings and suction strainer.
Built from the ground up in combination with Briggs and Stratton the range has exceeded all expectations offering the best in high performance and reliability whilst remaining a value product with a full national 3 year engine and pump warranty serviced by both Briggs and Stratton and White International dealer networks.
A complete customised engine solution built by Briggs and Stratton takes advances in small engine design sourced from their global network to ensure the engine provides a complete easy start, easy use and reliable long term solution for approved pumps within the Vulcan range. This combined with a complete redesign of the pump end guarantees the best solution possible for any user where water is required and a small engine pump is the solution of choice.
- Next Generation Engine & Pump Design
- 800 Hour High Performance Engine
- Lo-tone™ Muffler for reduced noise
- Low emissions to recognised global standards
- Full national engine support across 400+ Briggs & Stratton service centres
Quick Start Promise
The next Generation of Bianco Pumpz Engine Driven Range is Powered by a Briggs & Stratton Engine that comes with our Quick Start Promise. From extensive development of the engine design, this pump will start simply by any user.
Technical Specifications
| Brand | Bianco Pumpz |
| Product Type | Engine Driven Pump |
| Suitable For | Water Transfer |
| Fuel | Petrol |
| Hp | 5.0 |
| Max Flow (L/min) | 500 |
| Max Head (m) | 30 |
| Port Size Outlet | 2″BSPM |
| Suction Depth | 8m |
| Dimensions | 545L x 435W x 450H |
| Warranty (months) | 24 Months |
Liquid:
Liquid Type: Clean Water
Clean water temperature range: 2 – 35o C
Materials:
Pump Body: Aluminium
Impeller: Aluminium
Mechanical Seal: Carbon/Ceramic/Nitrile
O rings: Nitrile
Installation:
Maximum ambient temperature: 40
C
Self Priming Time at 5m: <120 seconds
Weight:
24.2kg
APPLICATIONS
• Water transfer
• Tank filling
• Water cartage
• Dust Suppression
FEATURES
- Custom Built Frame
- Spark Arrester with Deflector
- Single cylinder, 4 stroke, forced air cooled, OHV engine
- Heads to 30 metres
- Flows to 500 l/min
- Suction to 6m/120s
- 1 x 2” BSP male discharge ports
- 1 x 2” BSP male suction port
- Next generation engine and pump design
- 800 hour high performance engine
- Dura-bore™ cast iron cylinder liners for
longer life - Lo-Tone™ muffler for reduced noise
- Low emissions to recognised global standards
- Full national engine support across 400+
Briggs & Stratton service centres - Low Oil Level Engine Protection
- Low Oil Sensor
- Rubber mounting feet
- Heavy Duty Fuel Cap
- Mulit-point Discharge point
- Full Serviceability
PERFORMANCE CURVE

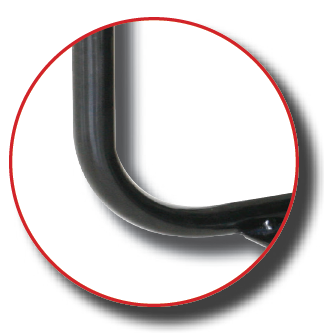

Roll Frame
Custom engineered easy access roll frame that provides ongoing protection of the pump and engine whilst being fully accessible for ease of servicing.

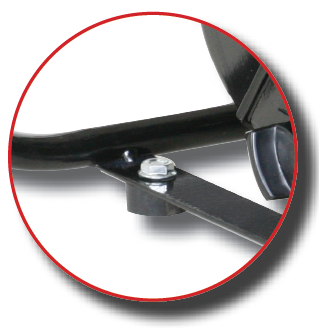

Rubber Mounting Feet
Integrated rubber mounting feet pre fitted to the frame reducing vibration and movement during operation.
Suction Port
1 x 2” bsp male Suction Port

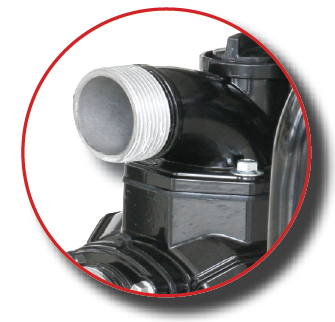

Discharge Port
1 x 2” male Discharge Port

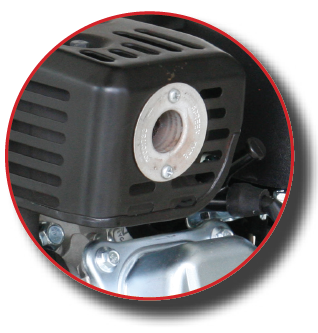

Spark Arrestor
Pre fitted spark arrestor with directional deflector designed to prevent rogue sparks from igniting the surrounding area when in use.

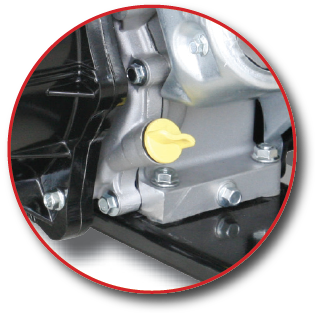

Low Oil Protection
Each engine has been pre fitted with a Low oil level sensor to prevent running the engine dry of oil.
