Bianco Vulcan Single Impeller 5.0Hp Pump

$829.00

Bianco Vulcan 5.0Hp Engine Driven Tanker Pump

Our range of water transfer pumps are designed to transfer large volumes of water fast. This could be for applications such as transferring around a property, irrigation, constructions sites overflow or firefighting.

Free Delivery Australia Wide

Product Documents

None 20m Layflat Hose Kit +$258.00
SKU: BIA-WP20ABS Categories: , , GTIN: 9312198858037

Bianco Vulcan 5.0Hp Single Stage Engine Tanker Pump

Powered by Briggs & Stratton.

The pump is a compact self priming engine driven pump supplied ready to operate with hose fittings and suction strainer.

Built from the ground up in combination with Briggs and Stratton the range has exceeded all expectations offering the best in high performance and reliability whilst remaining a value product with a full national 3 year engine and pump warranty serviced by both Briggs and Stratton and White International dealer networks.

A complete customised engine solution built by Briggs and Stratton takes advances in small engine design sourced from their global network to ensure the engine provides a complete easy start, easy use and reliable long term solution for approved pumps within the Vulcan range. This combined with a complete redesign of the pump end guarantees the best solution possible for any user where water is required and a small engine pump is the solution of choice.

  • Next Generation Engine & Pump Design
  • 800 Hour High Performance Engine
  • Lo-tone™ Muffler for reduced noise
  • Low emissions to recognised global standards
  • Full national engine support across 400+ Briggs & Stratton service centres
Quick Start Promise

The next Generation of Bianco Pumpz Engine Driven Range is Powered by a Briggs & Stratton Engine that comes with our Quick Start Promise. From extensive development of the engine design, this pump will start simply by any user.





Technical Specifications
Brand Bianco Pumpz
Product Type Engine Driven Pump
Suitable For Water Transfer
Fuel Petrol
Hp 5.0
Max Flow (L/min) 500
Max Head (m) 30
Port Size Outlet 2″BSPM
Suction Depth 8m
Dimensions 545L x 435W x 450H
Warranty (months) 24 Months

Liquid:
Liquid Type: Clean Water
Clean water temperature range: 2 – 35o C
Materials:
Pump Body: Aluminium
Impeller: Aluminium
Mechanical Seal: Carbon/Ceramic/Nitrile
O rings: Nitrile
Installation:
Maximum ambient temperature: 40
C
Self Priming Time at 5m: <120 seconds
Weight:
24.2kg



APPLICATIONS

• Water transfer
• Tank filling
• Water cartage
• Dust Suppression



FEATURES
  • Custom Built Frame
  • Spark Arrester with Deflector
  • Single cylinder, 4 stroke, forced air cooled, OHV engine
  • Heads to 30 metres
  • Flows to 500 l/min
  • Suction to 6m/120s
  • 1 x 2” BSP male discharge ports
  • 1 x 2” BSP male suction port
  • Next generation engine and pump design
  • 800 hour high performance engine
  • Dura-bore™ cast iron cylinder liners for
    longer life
  • Lo-Tone™ muffler for reduced noise
  • Low emissions to recognised global standards
  • Full national engine support across 400+
    Briggs & Stratton service centres
  • Low Oil Level Engine Protection
  • Low Oil Sensor
  • Rubber mounting feet
  • Heavy Duty Fuel Cap
  • Mulit-point Discharge point
  • Full Serviceability
PERFORMANCE CURVE

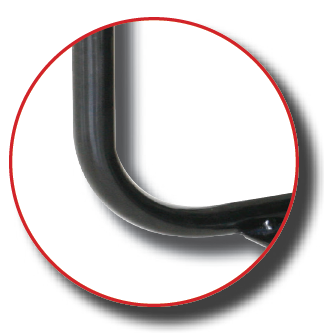

Roll Frame
Custom engineered easy access roll frame that provides ongoing protection of the pump and engine whilst being fully accessible for ease of servicing.

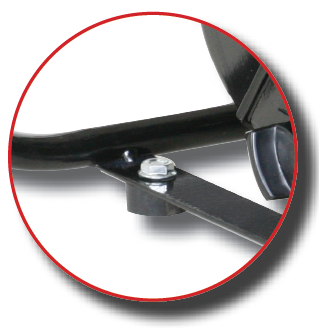

Rubber Mounting Feet
Integrated rubber mounting feet pre fitted to the frame reducing vibration and movement during operation.

Suction Port
1 x 2” bsp male Suction Port

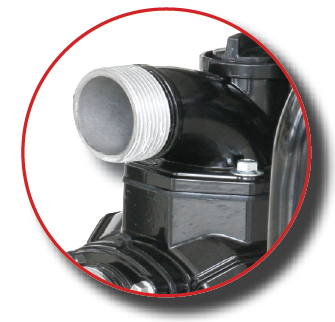

Discharge Port
1 x 2” male Discharge Port

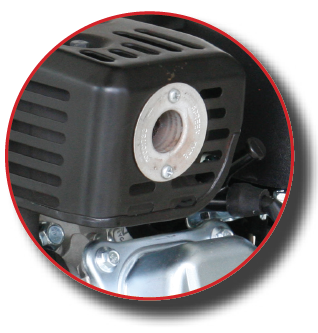

Spark Arrestor
Pre fitted spark arrestor with directional deflector designed to prevent rogue sparks from igniting the surrounding area when in use.

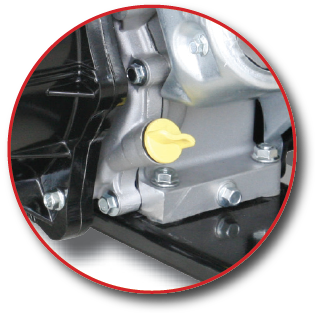

Low Oil Protection
Each engine has been pre fitted with a Low oil level sensor to prevent running the engine dry of oil.

Weight 24.2 kg
Dimensions 54.5 × 43.5 × 45.0 cm

Brand

Bianco Pumps

Bianco Pumps is a brand of water pumps and pumping systems that specializes in providing solutions for various water-related applications. Product Range: Bianco Pumps offer a range of water pumps designed for different purposes. This could include submersible pumps, surface pumps, pressure pumps, and more. These pumps may be used for applications such as irrigation, domestic water supply, wastewater management, and industrial processes. Quality and Performance: Reputable pump manufacturers like Bianco Pumps typically focus on delivering high-quality products with reliable performance. This may involve using durable materials, precision engineering, and adherence to industry standards to ensure their pumps operate efficiently and effectively. Customer Support: ASC supports Bianco Pumps, and we provide customer support services to assist with pump selection, installation recommendation, maintenance, and troubleshooting. This can be crucial for customers who need guidance in choosing the right water pump for their specific needs or require assistance with any issues that may arise. Innovation: Leading pump manufacturers like Bianco Pumps continuously work on improving their products through research and development efforts. They may introduce innovative features and technologies to enhance pump performance, energy efficiency, and durability. Warranty and After-Sales Service: Bianco Pumps, like other reputable pump manufacturers, offer industry standard warranties on their products to provide customers with peace of mind. Additionally, they have an after-sales service network to handle repairs and maintenance. Most Bianco Pumps comes with a two year warranty. Environmental Considerations: Bianco Pumps are increasingly conscious of environmental concerns. They design and promote energy-efficient pumps to reduce electricity consumption and minimize the environmental impact of their products. Market Presence: The availability of Bianco Pumps products may vary by region, however ASC provides national delivery of the entire range of Bianco Pumps. This ensures we can find the right product and reach you efficiently. For the most up-to-date and specific information about Bianco Pumps, including their product offerings, innovations, and customer support services, contact ASC Water Tanks on (03) 8795 7715 or email at [email protected].
