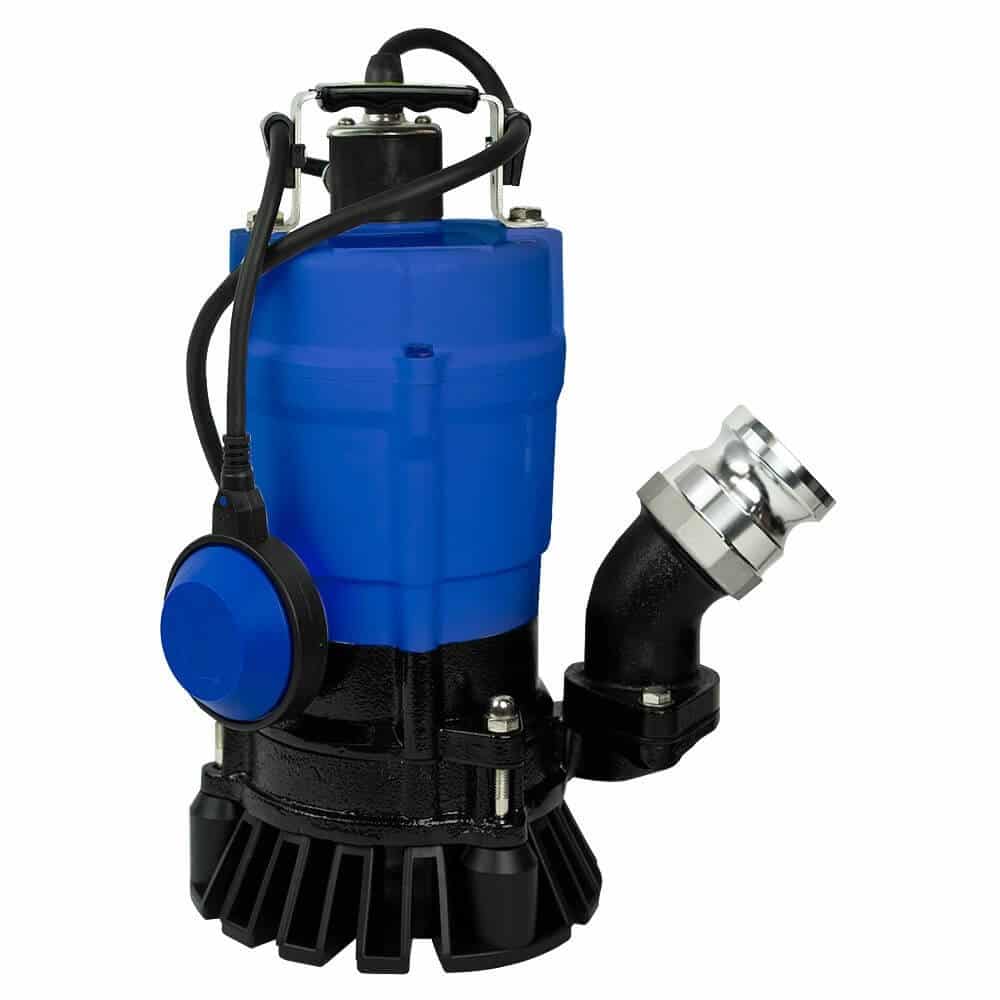

ClayTech BlueSub05 Submersible Drainage Pump

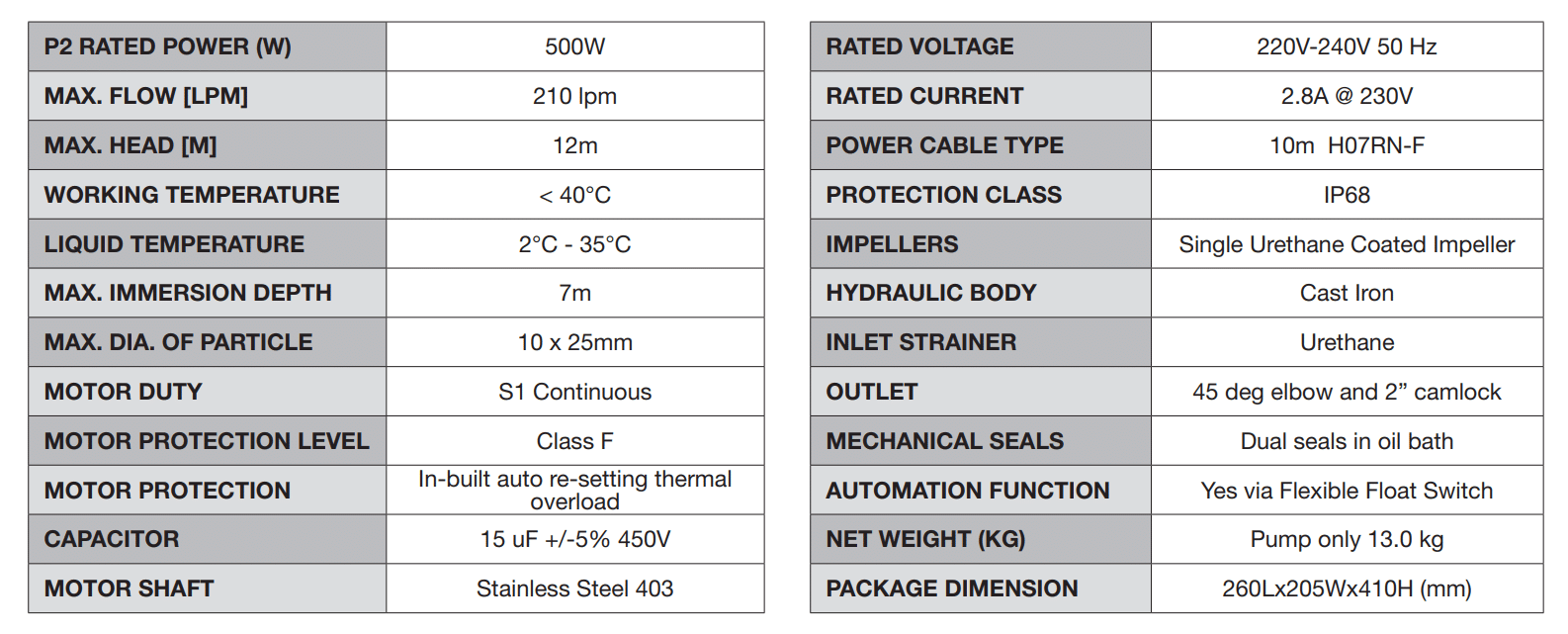

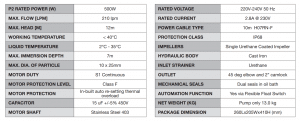

0.5kW, 50Hz, 240V, 12m Max Head, 210 L/min, IP68, 45° Elbow with 2” Camlock.
The CLA BlueSub05 is a rugged and durable drainage pump designed for use in the construction industry to shift water containing abrasive materials from low lying areas. From the industrial grade coating to the impact resistant Urethane strainer, this pump is designed to withstand the knocks when de-watering construction sites, pits, stormwater, basements and other low lying areas.
Features
Designed for de-watering of construction sites, pits, storm water and basements where there is abrasive material.
- Industrial grade coating
- Stainless Steel Handle
- Easy service round style float
- Corrosion resistant pump components
- Compact
- Automatic and manual operations available
- Dual mechanical seal in oil bath, silicon carbide/silicon carbide + carbon ceramic
- Fitted with semi-vortex, urethane coated impeller which allows pumping of suspended solids, sandy and stringy material
- Agitator on the end of the pump shaft helps prevent air locking and clogging
- Versatile outlet connection
- 240V single phase motor with in-built auto reset thermal overload
- 10m of power cable (H07RNF)
- Urethane strainer resists damage
- Can handle particles to 25mm x 10mm
- Water temperature range: 2ºC to 35ºC
- Maximum submergence: 20m
