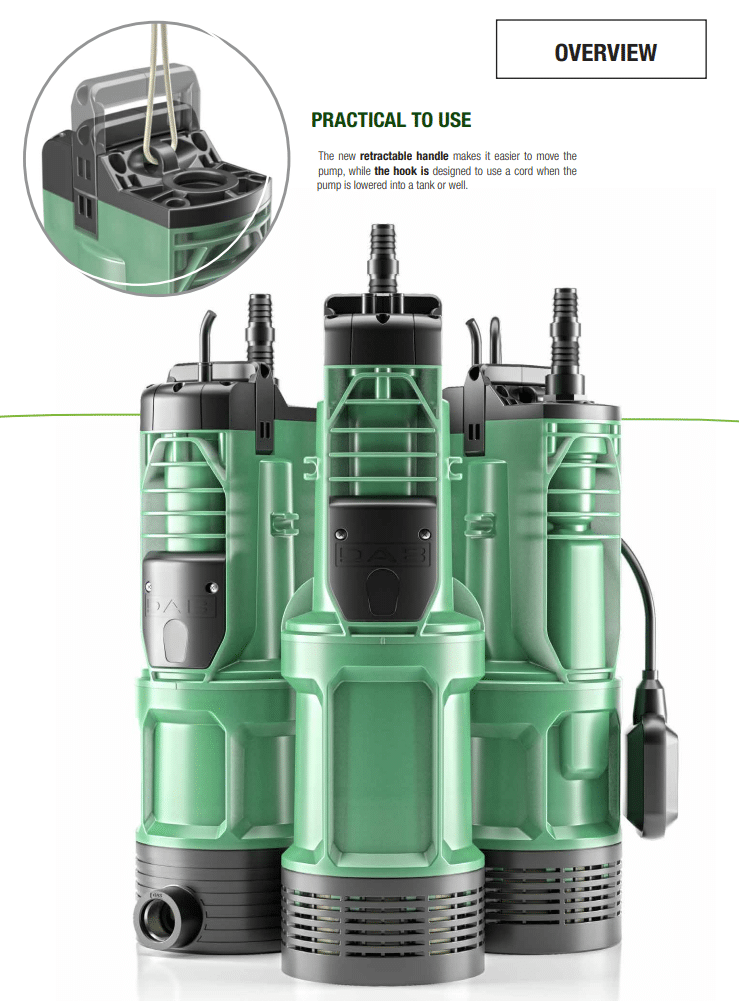

DAB Divertron 900A Submersible Pump
(Replaces DAB Diverton 1200)
(811110)
The DAB Divertron is a submersible pump with integrated on/off electronics for domestic water supply.

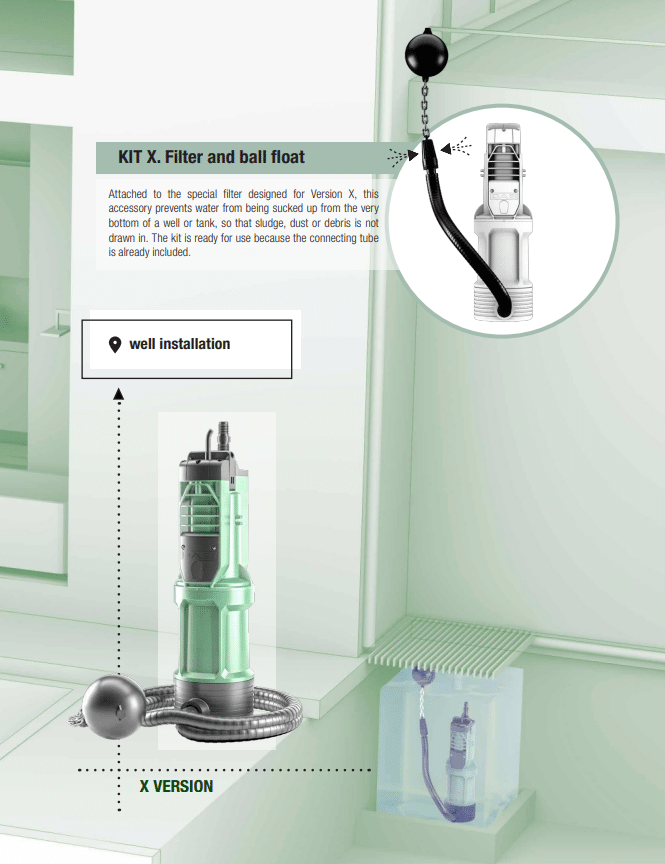

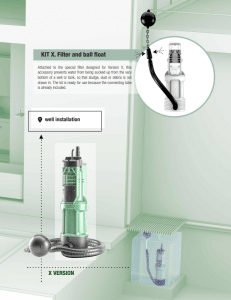

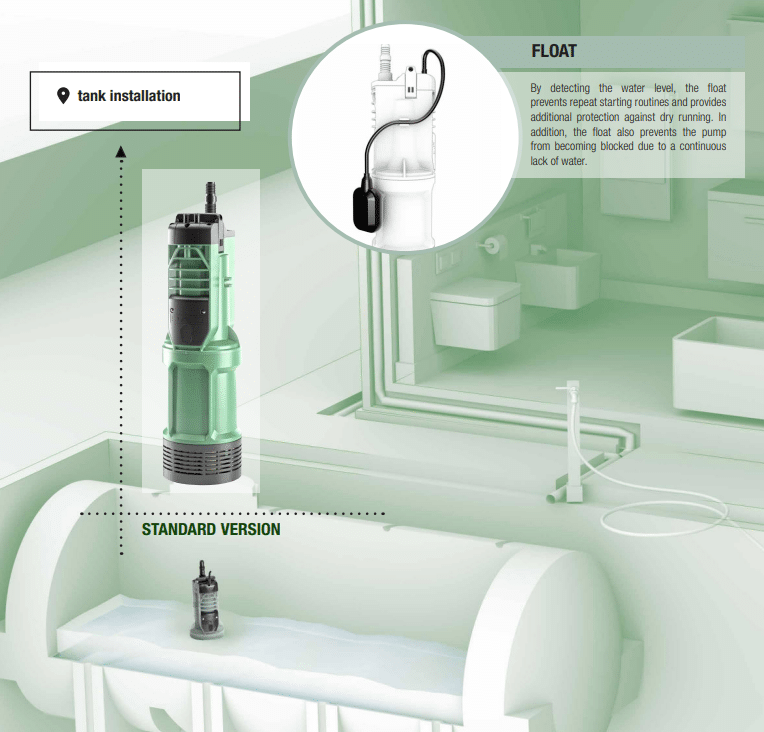

Ideal for irrigation and gardening and for the reuse of rainwater, it can be installed inside collecting tanks, wells and tanks with a maximum immersion depth of 12 metres.
Incorporates an electronic automatic restart pump control with dry run protection
Fully automatic operation
In-built non-return valve and flow sensor
Supplied wired and ready to install
Quiet operation
Simple installation
A small pressure tank (2-8L) is recommended
Does not require external pump control

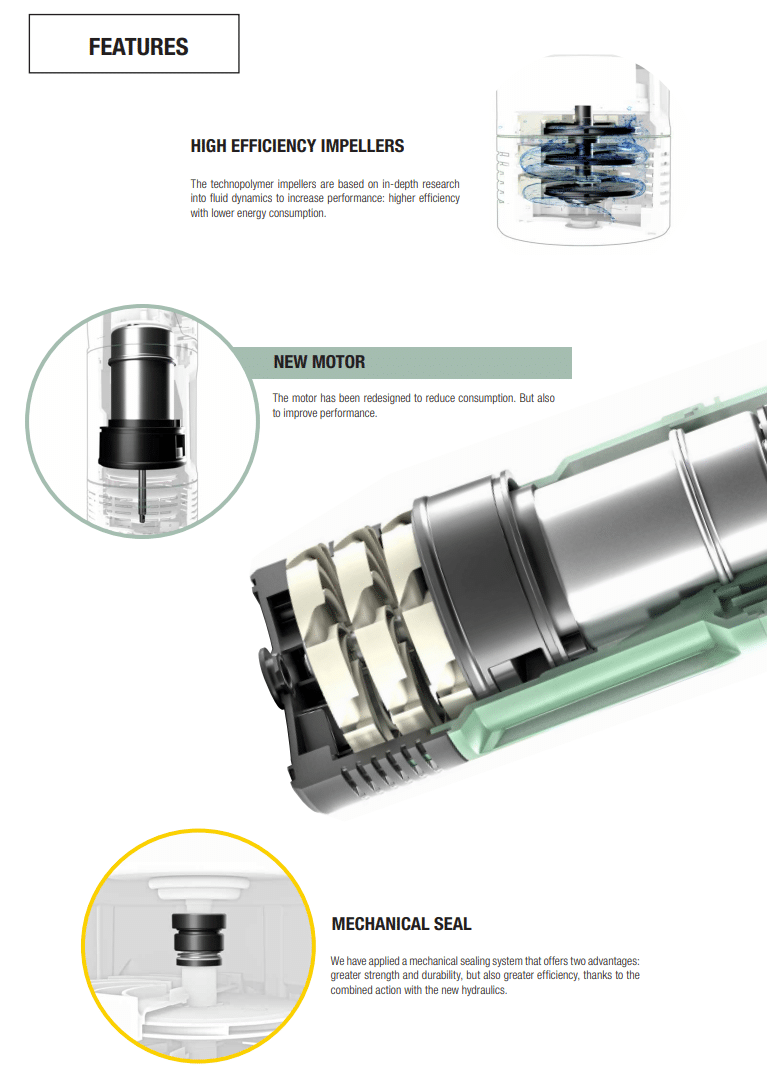

The pump is characterised by:
- Corrosion resistant pump components.
- Fully automatic operation.
- Shaft seal with sand protection boot.
- 240V single phase motor with in-built auto reset thermal overload.
- 15m of power cable.
- 2 year warranty.
- Flows to 95 l/m
- Heads to 46 m
| Brand | DAB Pumps |
| Product Type | Pressure System |
| Suitable For | Clean Water |
| Bar | 4.8 Bar |
| Approval | Approved For Drinking Water |
| Cable | 15 m |
| Flow Range Category | a. 0 – 99 L/min |
| Flow Rate (L/min) | 95 L/min |
| Hp | – |
| kPa | 486 kPa |
| Kilo Watts (P2) | 0.56 kW |
| Head Range Category | b. 40 – 59 m |
| Max Head (m) | 48 m |
| Port Size Outlet | 1″ BSPF outlet |
| Dimensions | 536H x 160L x 160W |
| Taps | 9 Taps |
| Volts | 240 V |
| Warranty (months) | 24 Months |
| Watts | 560 W |
