DAB ESYBOX Variable Speed Constant Pressure Pump

$1,599.00 $1,550.00

Product Documents

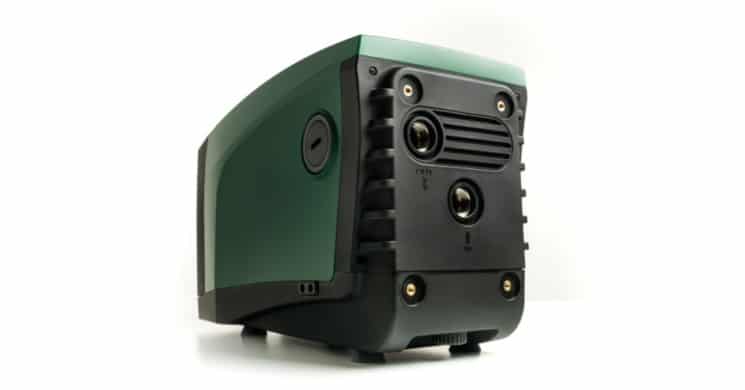

DAB ESYBOX Mains Pressure Boosting Multistage Pump

DAB Pumps is leading the way in electronic pump technology. The ESYBOX is a completely new solution in rainwater harvesting and cold water boosting for residential and light commercial applications. It’s an all in one pump and control solution comprising of a single pump, water cooled booster pump with integrated high efficiency variable speed motor.

AS/NZS 4020 Approved for drinking water.

Water cooled motor and sound dampening casing creating the quietest booster pump available today
Energy efficient variable speed motor operating from 0.3kW to 1.4kW
Powerful performance flow up to 2 litres per second and head up to 6 Bar
Dry run protection
Flexible installation with horizontal or vertical position and wall mounting accessory kit
Self priming down to 8 metres
Frost protection
Anti-vibration mountings
Variable positions for inlet and outlet pipework
Integrated chamber with expansion vessel, tool kit and installed manual
Wireless connectivity and modular design can expand the pump system up to a 4 pump booster set
Integrated modular water storage tank system with Cat 5 connection
Saves 30% of space in comparison to a traditional system
Quiet operation 45 dB in standard use

Technical Specifications
BrandDAB Pumps
Product TypePressure System
Suitable ForClean Water
Bar6.1 Bar
ApprovalApproved For Drinking Water
Flow Range Categoryb. 100 – 199 L/min
Flow Rate (L/min)120 L/min
Hp2.1 Hp
kPa618 kPa
Kilo Watts1.55 kW
Head Range Categoryc. 60 – 99 m
Max Head (m)61 m
Port Size Inlet1″ BSPF inlet
Port Size Outlet1″ BSPF outlet
Taps12 Taps
Warranty (months)24 Months
Volts240 V
Watts1550 W



dab logo
Product Type

Pressure System

Suitable For

Clean Water


6.1 bar


Approved For Drinking Water

Flow Range Category

b. 100 – 199 L/min

Flow Rate (Lt/min)



2.1 Hp


618 kPa

Kilo Watts

1.55 kW

Head Range Category

c. 60 – 99 m

Head (max)

61 m

Port Size Inlet

1" BSPF inlet




12 taps


240 V


24 Months


1550 W

Pack Weight
