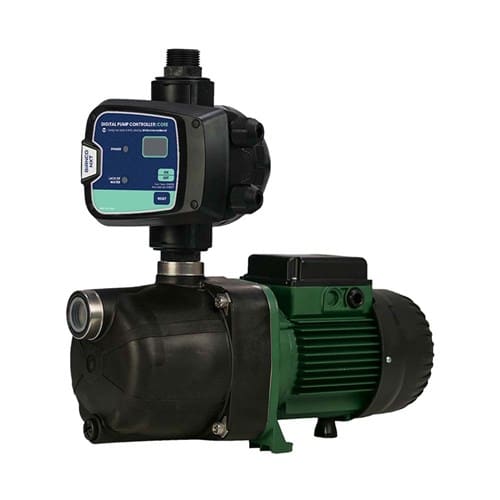

DAB JETCOM62CORE Pressure Pump with nXt Controller 808408
The DAB JETCOM62CORE replaces the DAB JETCOM62NXT , DAB JETCOM 62MPCX and DAB JETCOM62MPCI
The DAB JETCOM62CORE pairs the composite, self-priming JETCOM62M centrifugal pressure pump with the highly versatile BiANCO NXT CORE dual mode pump controller. The NXT CORE offers unparalleled pump control and protection.
This pressure system is particularly suited to water supply in domestic installations, small-scale agriculture, gardening and wherever self-priming operation is required. DAB Jetcom pumps are renowned for their unique self priming and extraordinary deep suction capability; up to 8 metres at sea level.
Features & Benefits
- Automatically restarts after water loss or interrupted power.
- Dry run protection protects pump from damage.
- Eliminates water hammer protecting plumbing
Compact size for easier installation - Taps: 4
*Fitment of a 3, 8 or 18 litre pressure vessel is encouraged to reduce pump starts and save energy – sold separately.
Technical Specifications
| Brand | DAB Pumps |
| Product Type | Single Stage Pressure Pump |
| Suitable For | Clean Water |
| Bar | 4.1 Bar |
| Approval | AS/NZS 4020 Approved For Drinking Water |
| Flow Range Category | a. 0 – 99 L/min |
| Flow Rate (L/min) | 45 L/min |
| Hp | 0.6 Hp |
| kPa | 411 kPa |
| Kilo Watts | 0.44 kW |
| Head Range Category | b. 40 – 59 m |
| Max Head (m) | 42 m |
| Port Size Inlet | 1″ BSPF inlet |
| Port Size Outlet | 1″ BSPM outlet |
| Powered | Electric |
| Volts | 240 V |
| Warranty (months) | 24 Months |
| Watts | 440 W |
Weight
Pump: 7.5KG
Controller: 1.6KG

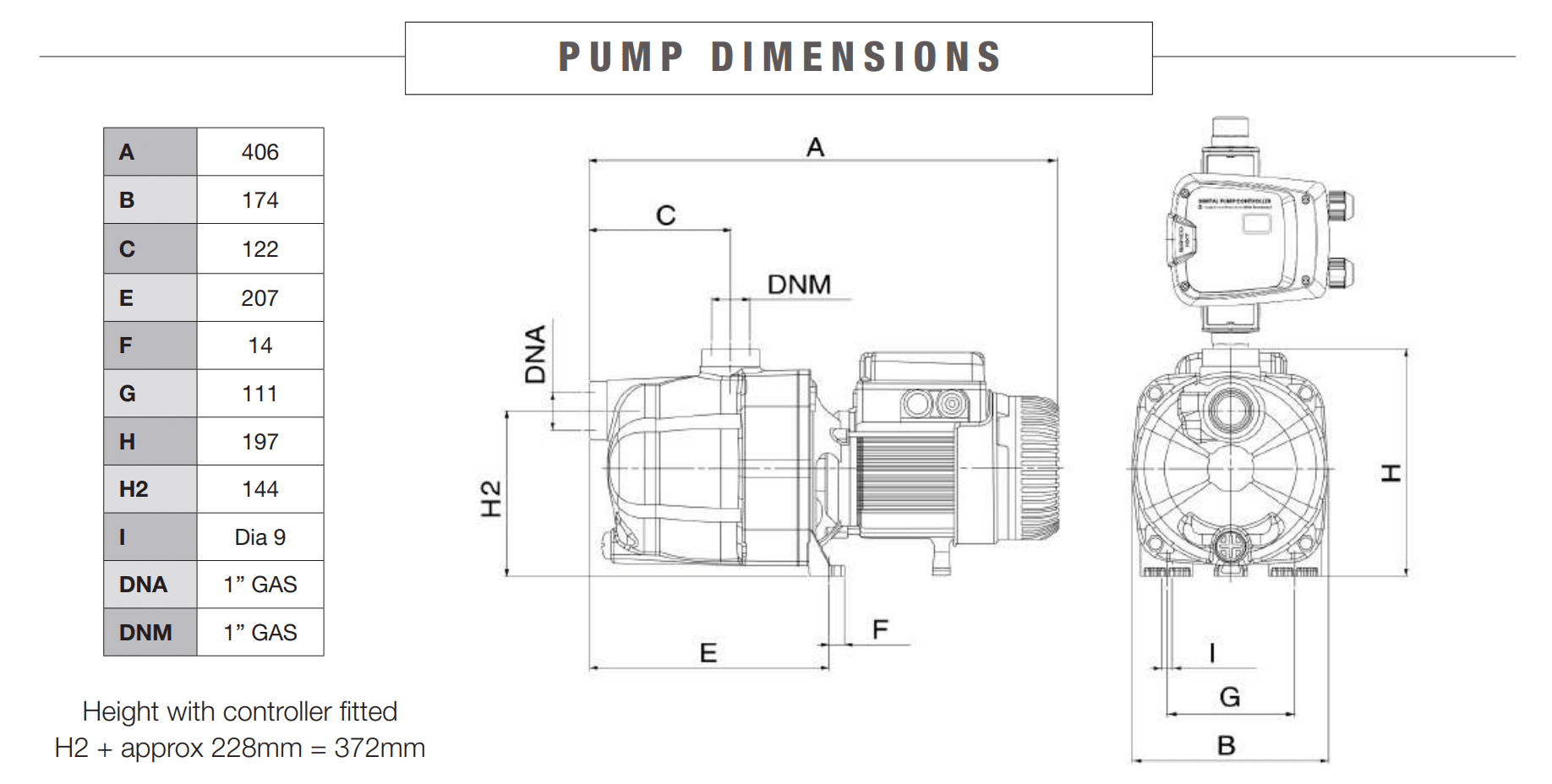

Dimensions (cm) : 67 x 25 x 29
Designed in Italy
- Self Priming to 8 metres at sea level
- Designed specifically for rainwater tanks, shallow well, spear and bore holes to a maximum depth of 8 metres
- Ideal for drip irrigation and garden watering
- Designed for domestic and urban household pressure systems
- Electronic pump control with dry run protection and automatic restart
- Wear Rings: Stainless Steel
- Mechanical Seal: Carbon / Ceramic
- Motor Support: Die-Cast Aluminium
- Motorshaft: 304 Stainless Steel
- Impeller: Technopolymer
- Diffuser: Technopolymer
- Jet/Venturi: Technopolymer
Constructional Features Of The Pump
Pump body in technocpolymer and motor support in die cast aluminium.
Impeller, diffuser, venturi tube and sand guard in technopolymer
Stainless steel wear ring.
Carbon/ceramic mechanical seal.
Constructional Features Of The Motor
Asynchronous type, closed, with external air cooling.
Rotor mounted on oversized greased-for-life ball bearings, to guarantee low noise and long life.
Incorporated thermo-amperometric protection and permanently inserted capacitor in the single phase version.
It is recommended to use overload protection for three phase motor protection, in compliance with current legislation.
Manufactured pursuant to CEI 2-3 and CEI 61-69 (EN 60335-2-41).
Controller
This pump includes the Bianco iCON nXt series of pump controller.
The nXt Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.
Controller Features
- Digital display gives you a real time indication of system pressure
- Anti-cycle Protection
- Dry run protection with auto restart function that tests for water availability every 24hrs
- Anti-seize function if pump has not operated for last 24 hours
- Controller automatically restarts pump after a power failure
- Easy assembly and removal using push-n-connect fitting with U clip
- Complies to AS/NZ 4020 drinking water standard
- Over pressure protection turns pump off when 10 bar is reached
- Overload protection
