DAB NOVABOX30-300M Under Basin Pump Station – 701754
DAB Under Basin Pump Station – Grey Water Pump Units.
Automatic stations for collecting and lifting domestic wastewater from bath tubs, wash basins, showers and washing machines located in basements or below the level of the sewage network.
includes 30L DAB-NOVA300 drainage pump pre-installed.
Specifications
Max Head: 6.5m
Max Flow: 120L/m
Connection: 1 1/4” delivery pipe.
Pumped liquids: waste water without solid and/or fibrous matter
Suitable for water temperature up to 50 degrees celsius in normal operation and up to 90 degrees celsius for 3 minutes
Dimensions (mm) : 804 x 544 x 635
Pack Weight: 9.30KG
2 Year DAB Pumps Warranty
Water Resistant IP68
2 Year DAB Pumps Warranty
Water Resistant IP68
Suitable for: Grey Wastewater
Not suitable for kitchen appliances
Not suitable for kitchen appliances
Performance Curve
Applications

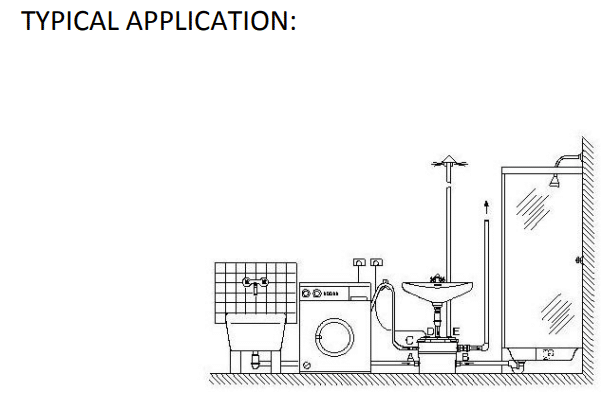

- Grey water lifting in basements or below-grade plumbing
- Bathroom and laundry renovations where sewer access is higher than fixtures
- Domestic greywater handling (not suitable for blackwater or sewage)
- Ideal for split-level homes, granny flats, or secondary installations
Features

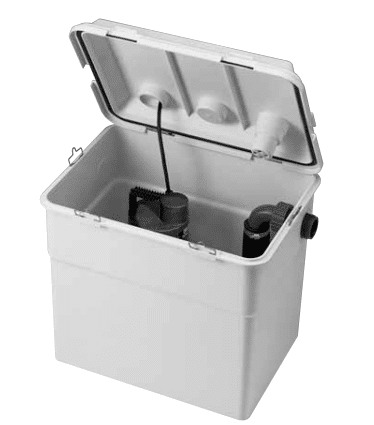

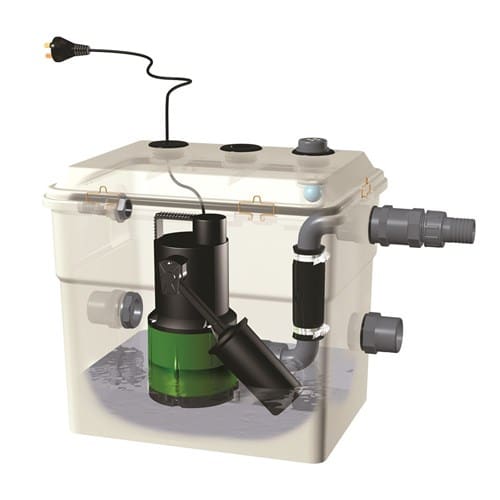

- Fully preassembled pump station with DAB NOVA300A automatic pump
- Ideal for grey wastewater from baths, sinks, showers, and washing machines
- 30L durable technopolymer tank with integrated mounting plate
- Built-in check valve to prevent backflow
- Automatic operation with float switch activation
- 5-metre pre-wired power cable for easy installation
- Quiet and compact solution for under-basin installation
