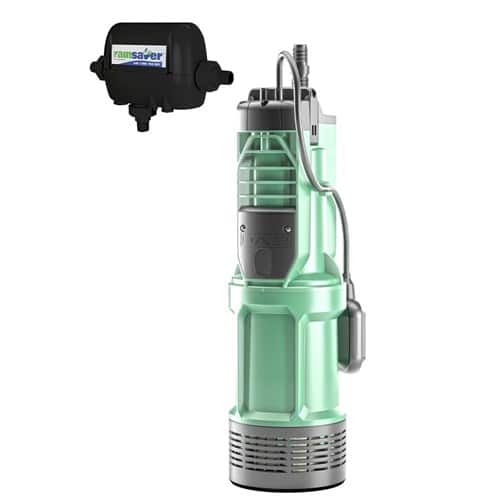

DAB RS4e-DIVERTRON900A Multistage Submersible Pump

$999.00

Availability: In stock

DAB RS4e-DIVERTRON900A Multistage Tank/Mains Submersible Rainsaver

(811254)

The DAB Divertron 900A Replaces the DAB Divertron1200, and is a light and compact high head submersible clean water automatic pressure system pump supplied wired and ready to install. The pump includes an electronic automatic restart pump control with dry run protection. Corrosion resistant pump components. Fully automatic operation. Shaft seal with sand protection boot. 240V single phase motor with in-built auto reset thermal overload. Multistage technopolymer submersible pump Electronic Pump with Auto Restart.

  • Incorporates an electronic automatic restart pump control with dry run protection
  • Fully automatic operation
  • In-built non-return valve and flow sensor
  • Supplied wired and ready to install
  • Quiet operation
  • Simple installation
  • A small pressure tank (2-8L) is recommended
  • Does not require external pump control



HIGH EFFICIENCY IMPELLERS
The technopolymer impellers are based on in-depth research into fluid dynamics to increase performance: higher efficiency with lower energy consumption.

NEW MOTOR
The motor has been redesigned to reduce consumption. But also to improve performance.

MECHANICAL SEAL
We have applied a mechanical sealing system that offers two advantages: greater strength and durability, but also greater efficiency, thanks to the combined action with the new hydraulics.

PRACTICAL TO USE
The new retractable handle makes it easier to move the pump, while the hook is designed to use a cord when the pump is lowered into a tank or well.

INTEGRATED ON/OFF ELECTRONICS
The integrated electronic card manages starting and stopping of the pump automatically in relation to the water demand, without the need to install an external controller. This prevents dry running of the pump in the event of a prolonged shortage of water. Easier to install, and easier and safer to use.

NON-RETURN VALVE
The non-return valve ensures quick and safe initial installation, allowing immediate priming.

DIRECT ACCESS TO THE CAPACITOR
The capacitor housing is designed to be replaced quickly without the need to remove the pump

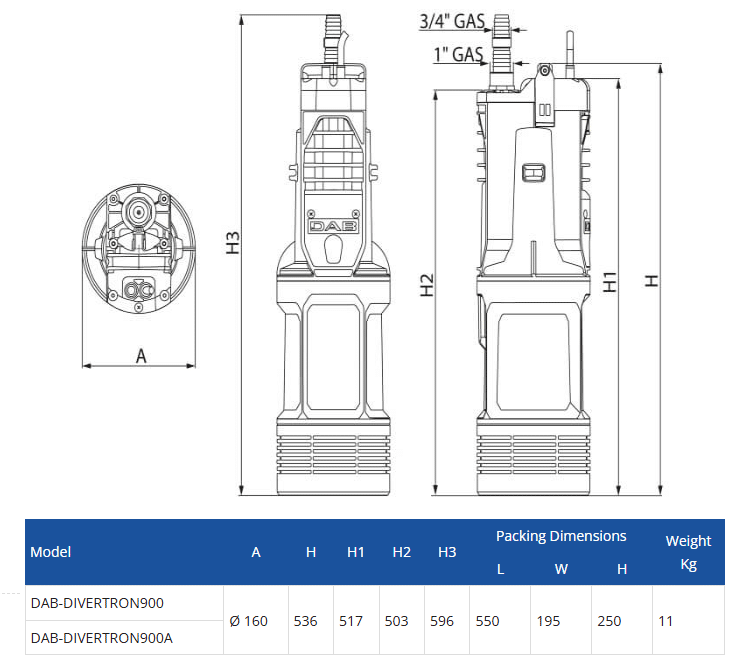

Technical Specifications
Brand Bianco Rainsaver
Suitable For Clean Water
Bar 4.8 Bar
Approval Approved For Drinking Water
Flow Range Category a. 0 – 99 L/min
Flow Rate (L/min) 95 L/min
Float Float Included
Hp 1 Hp
Kilo Watts 0.75 kW
Head Range Category b. 40 – 59 m
Max Head (m) 48 m
Port Size Outlet 1″ BSPM outlet
Powered Electric
Taps 9 Taps
Warranty (months) 24 Months
Volts 240 V
Watts 750 W

Pack Weight: 12KG

AS/NZS 4020 drinking water approved

Weight 12 kg
Dimensions 24 × 20 × 56 cm
Product Type

Pressure system

Suitable For

Clean Water

Bar

4.8 Bar

Approval

approved for drinking water

Cable

15 m

Flow Range Category

a. 0 – 99LT/min

Flow Rate LT/min

95LT/min

Hp

1 Hp

kPa

486kPa

Killo Watts

0.75 kW

Head Range Category

b. 40-59m

Head (max)

48m

Powered

Electric

Taps

9 Taps

Volts

240 V

Watts

750 W

Brand

DAB Pumps
