Davey Dynaflo 62201 Single Stage Centrifugal Transfer Pump 240V
SKU: D62201
WHY CHOOSE THE Davey Dynaflo Single Stage Pump?
- Every pump is performance and pressure tested in our factory to ensure quality and reliability.
- Cast iron pump casing with metal hoop strengthened inlet and outlet ports is a proven robust pump design for long life.
- O-ring sealed hand tightened priming and drain plugs for easy operation.
- 304 stainless steel pump shaft for long life.
- Davey manufactured IP56-TEFC,2 pole motor is corrosion resistant and protects against vermin, dust and water.
- Motor and pump are designed for frequent starts providing a long and reliable working life.
- In-built thermal overload protection with automatic reset in all single phase models for long term motor protection.
- Double contact seal, C3, high temperature greased bearings for long life and smooth running.
- 2m power lead with 10amp Australian three pin plug fitted to all single phase models.
- Corrosion resistant motor mounting feet for long life.
Dimensions (mm): 415L x 250W x 295H
Weight: 32Kg
Warranty: 2 Years
APPLICATIONS
• Water supply
• Water transfer
• Hosing down – dairies, factory floors etc.
• Tank filling
• Sprinkler supply
• Garden reticulation

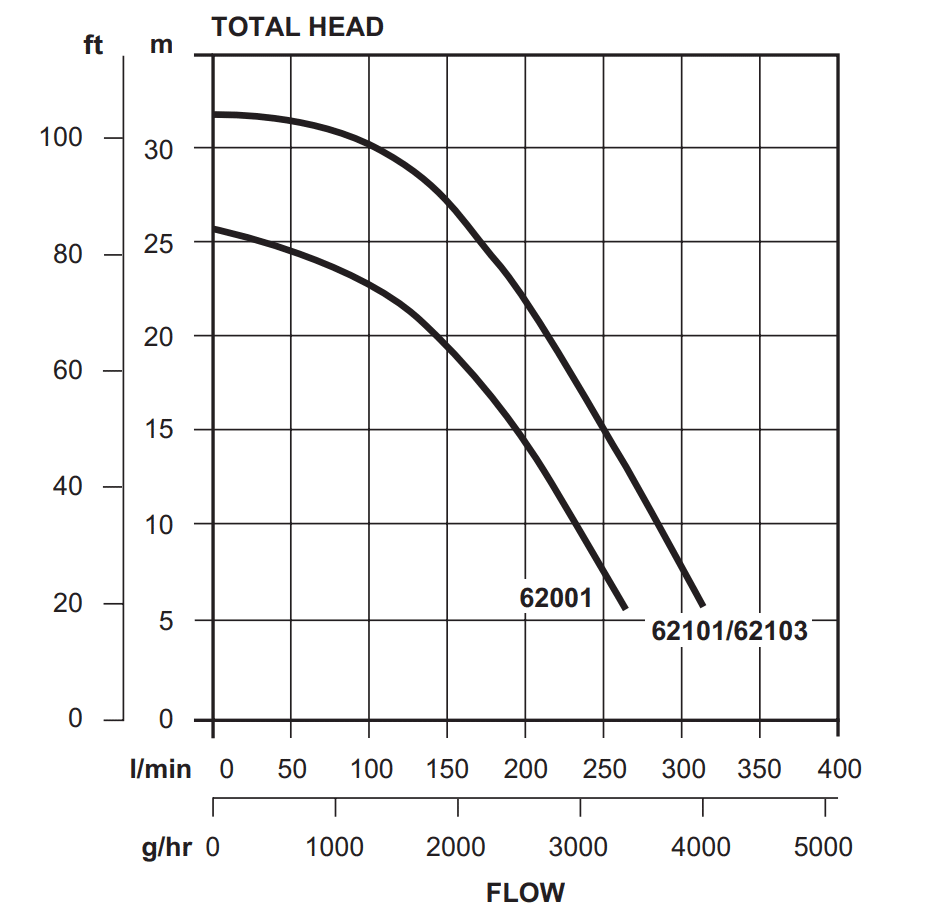

OPERATING LIMITS
Capacities to: 360 lpm
Maximum total head: 38.7m
Maximum suction head: 7m
Maximum water temperature
– Continuous – 50ºC
– 10 minute peak – 70ºC
Minimum water temperature: 1ºC
Inlet size: 2″ BSP(F)
Outlet size: 1½ ” BSP(F)
Maximum casing pressure: 105m
MATERIALS OF CONSTRUCTION
Impellers : Glass filled Polycarbonate
Pump casing : Cast Iron
Seal ring (stationary) : Ceramic
Seal ring (rotating) : Carbon
Shaft : 304 stainless steel
Seal elastomer : Nitrile rubber
Pump o-rings : Nitrile rubber
Motor shell : Aluminium
Shell finish : Baked polyester
Motor mounting feet : Xenoy plastic
Motor through bolts : 304SS with brass nuts
Motor fan : Polypropylene
INSTALLATION & PRIMING
• Installation with suction lift require a good quality foot valve to avoid loss of prime.
• To prime, fill pump body and suction line through priming plug hole located above suction inlet and replace plug.
ELECTRICAL DATA
Supply voltage: 415
Supply frequency: 50Hz
Phase: Single
Full load current: 14A
Locked rotor current: 54A
Input power: 3.2kW
Output power: 2.20kW
Insulation: Class F
Starting: P.S.C.
IP rating: IP56
