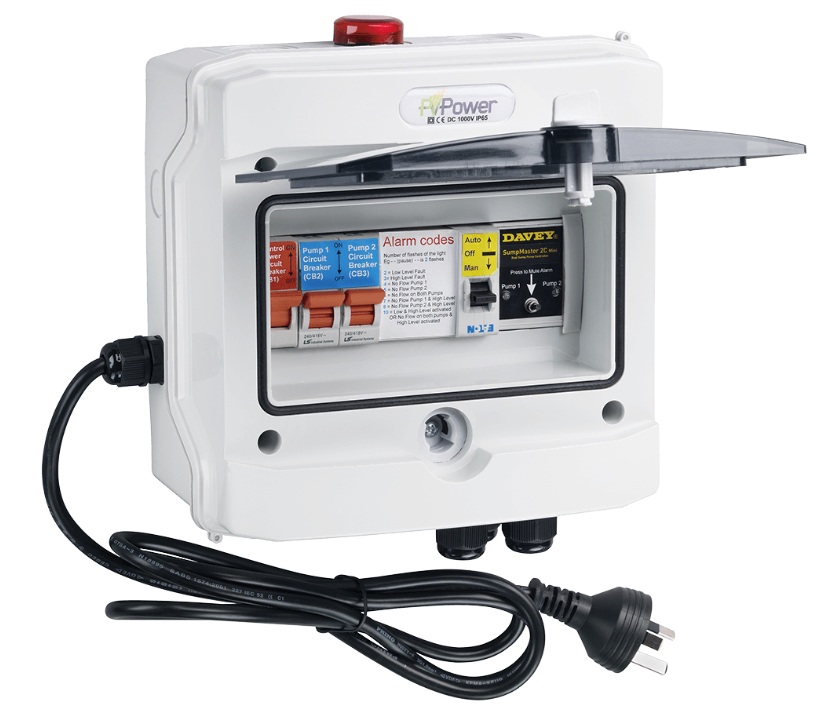

Davey SumpMaster Dual Pump Controller
SKU: DSM-F2-0.75
Suits: Davey D75M Floatless Dewatering Pump, D75VM, D75SM, D75KM (sold separately)
Maximize Your Efficiency with the SumpMaster Controller!
The SumpMaster is the ultimate control solution for a broad range of submersible sump pumps. Designed for dynamic flow demand, this powerful controller effortlessly manages either a single or dual-pump setup to precisely empty or fill any sump or tank. Featuring multiple selectable functionalities and full alarm and BMS interface capability, the SumpMaster isn’t just a controller—it’s the ideal intelligent hub for superior liquid management.
Applications
Ideal for underground carparks, industrial, buildings, homes and housing estates, rainwater harvesting and sewerage and water authorities.
Features & Benefits
- Provides fully automatic pump control and protection via SumpMaster’s purpose built central controller module

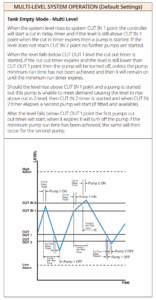

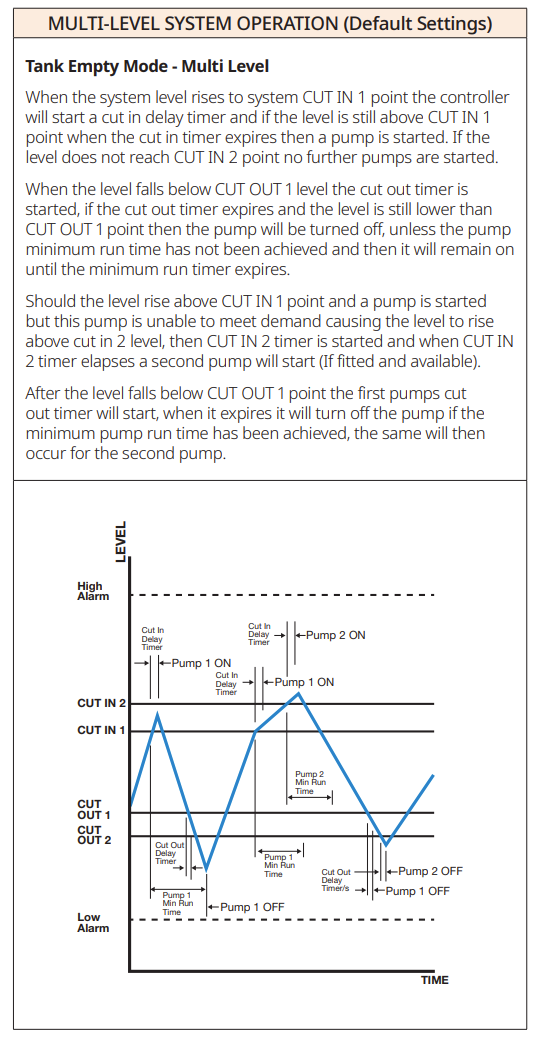

• Able to adapt to varying flow demand via the use of a choice of operating modes

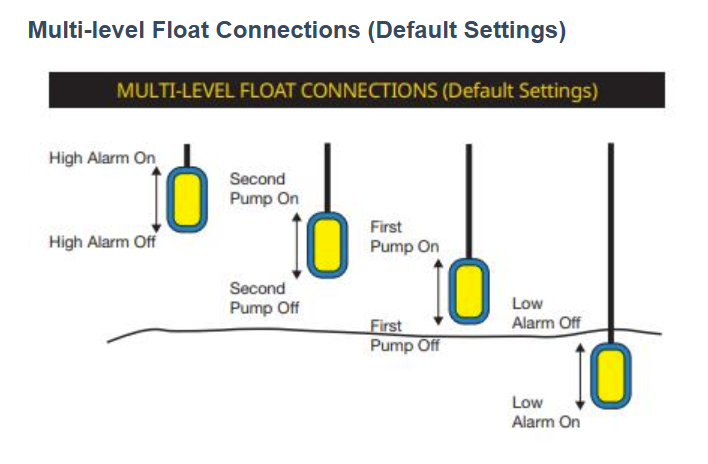

• Control of one or two pumps via float switches
• Programmable plain English menus, with security access code protection, enable quick and easy parameter adjustment to suit individual site conditions
• System Status LCD display includes calculated flow (instantaneous and totalised flows), hour run per pump, number of starts meter for each pump, system starts for the last hour
• System Protection includes adjustable high and low level shutdown settings with adjustable delay timers in order to protect pumps
• System Protection Alarms and fault resets can be accessed on site via the display screen, or via external communications
• User definable automatic rotation of the lead pump in order to equalise the hours of operation to maximise pump life
• System can be set to turn on all pumps in the event of a high level alarm; especially good in case the normal on/off floats are comprimised in some way
• Pumps can be operated in manual mode for system commissioning and fault finding
• 8 programmable inputs allow for external sensing functions, or remote control
• 2 programmable outputs to communicate with external sources such as telemetry and building management systems
• Soft starters to avoid large in-rush currents for 5.5kW and 7.5kW models
• Integrated RS485 Modbus communications is compatible with most SCADA systems

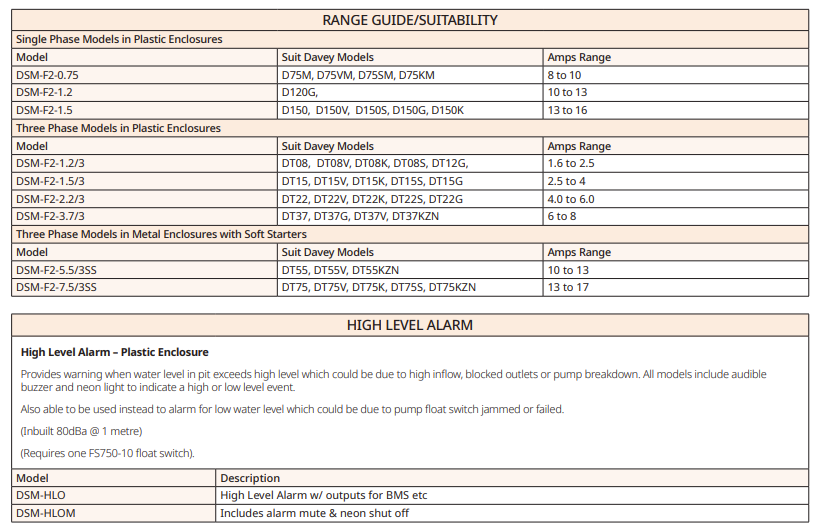

There are a large number individual models available with various options for different Davey sump pumps, please contact Davey directly, or search for a Dealer or Distributor to get assistance with choosing the most suitable model for your needs.

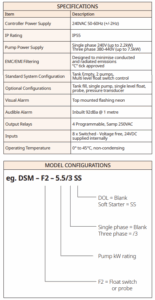

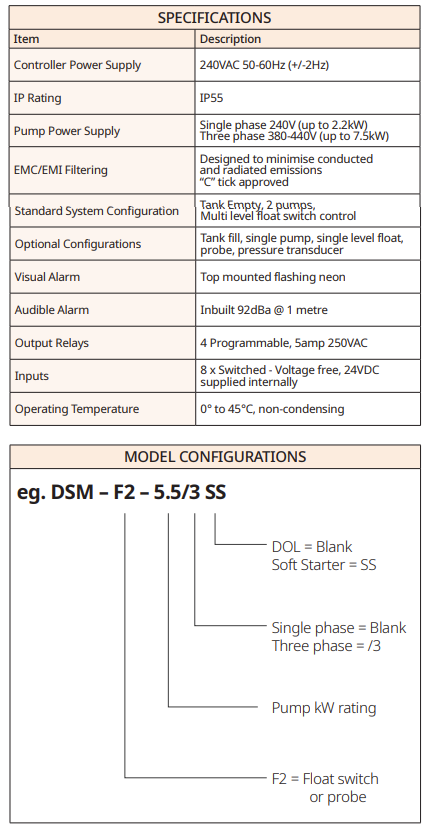

Please refer to the documentation for all features and full technical specifications.
