Davey KDS2D40M SumpMaster Mini Package w/ 2 x D40M
SKU: KDS2D40M

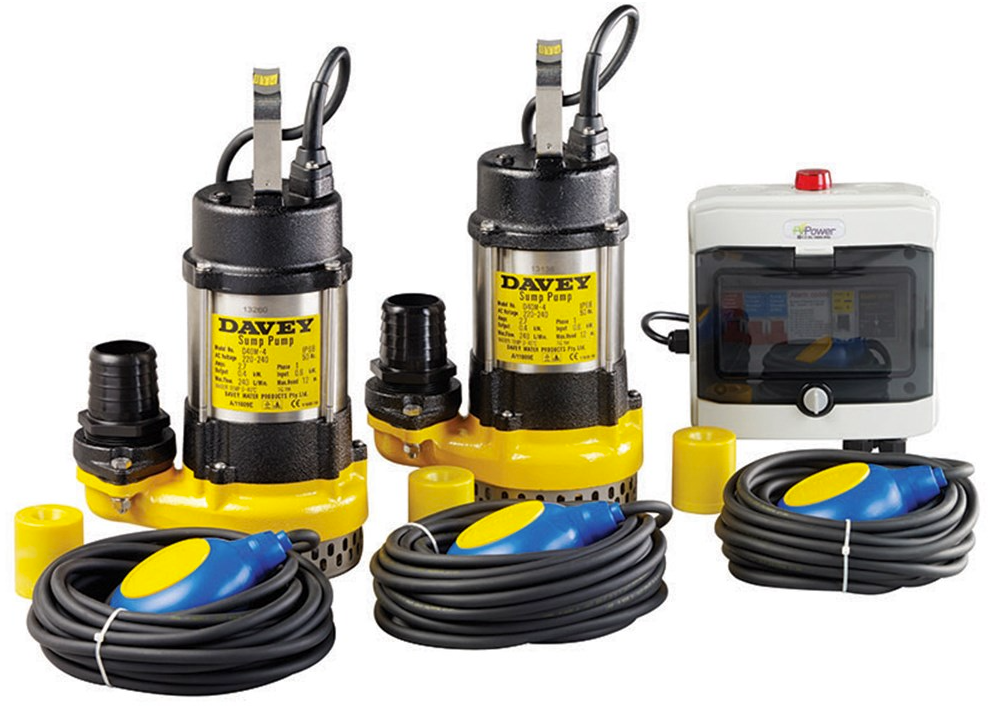

SumpMaster Mini Kit includes: SumpMaster Mini control box, 2 x D40M dewatering pumps and 3 x FS750-10 Float.
The Davey SumpMaster Mini Kit has a multitude of features and benefits, including but not limited to:
- Convenient Sump Master Kit
- Easy Installation & Maintenance
- Simple Operation: Auto/Off/Manual Control Switches
- Alarms Activate an Alarm Light Buzzer
- Building Management System (BMS)
Applications
• Dewatering of cellars, garages, ditches, pits & ponds
• Pumping clean or slightly dirty water
• Sump emptying
• Decorative water features
Technical Specs
Model: KDS2D40M
Max Flow: 240L/min (each pump)
Max Head: 12m
Supply voltage/Hz: 240V/50Hz single phase
Outlet: 2″F / 50mm
Max Submergence: 10m
Max Operation Temp: 50ºC
Max Soft Solid Diameter: 10mm
Output: 400W
Start: 10.5A
Run: 3.7A
Speed: 2 pole, 2850rpm
Insulation Class: F
IP rating: X8
Starting: P.S.C
Warranty: 1 Year
Materials of Construction
Impeller: Polycarbonate
Pump casing Glass Filled Polycarbonate
Mechanical seal (pump end): Silicon carbide / ceramic oil in bath
Shaft seal elastomer: Nitrile rubber
Pump shaft: 304 Stainless Steel
O-rings: Nitrile rubber
Motor shell: 304 stainless steel
Handle: 304 stainless steel
Fasteners: 304 stainless steel
Float & power supply leads: 10m HO7RN-F oil resistant
Suitable Fluids: Clean or “grey water” of neutral pH containing up to 10% small soft solids or 1% fine solids. Some wear should be expected while pumping hard solids in suspension.
