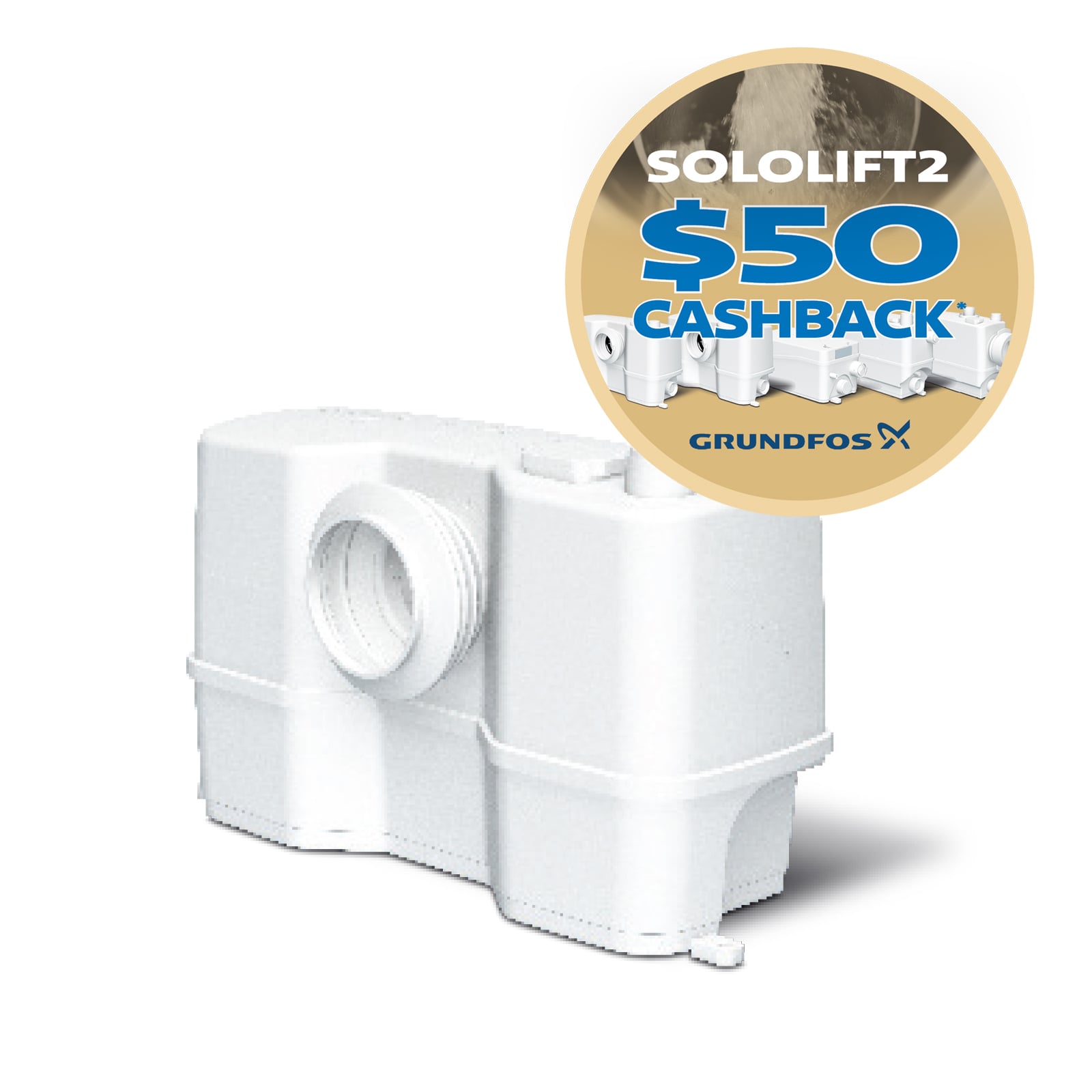

Grundfos Sololift2 WC-1 Lifting Station – 97775324
Sololift2 WC-1 is a small, compact automatic lifting station suitable for pumping of wastewater off places in private dwellings where wastewater cannot be led directly to the sewer by means of a natural downward slope.
Sololift2 WC-1 is suitable for pumping wastewater from a toilet containing toilet paper and faeces with an additional connection on the lid for e.g. a washbasin.
The pumping of liquids containing other material may cause faults and limit the scope of our guarantee.
Sololift2 WC-1 is typically used to dewater:
- toilet and washbasin in basements below sewer level, in connection with the renovation or modernisation of existing buildings, where the location may be remote from the main soil pipe so that a natural slope cannot be established.
|
|
The compact lifting station is equipped with
- Cable with or without plug (see technical data)
- Horizontal or vertical fastening possibility of discharge hose connector with several adaptors for pipes with Ø22-40mm
- integrated non return valve
- Dry and high performance motor unit incl. thermal protection, pressure switch and controller
- DN100 toilet connection hose
- Flexible connectors for inlet (adjustable in height) of pipes Ø36 or 40
- Slot for an alarm board with buzzer (accessory)
- Manual anti clogging function and separate drain connection for service
- Venting valve with overflow protection
- Uplift fixation clips
|
|
| Product name |
SOLOLIFT2 WC-1 |
| Product No |
97775324 |
| EAN number |
5710624187333 |
| Price |
|
Technical
| Head max |
8.5 m |
| Approvals on nameplate |
CE,TR,VDEEMV,VDE,MORO |

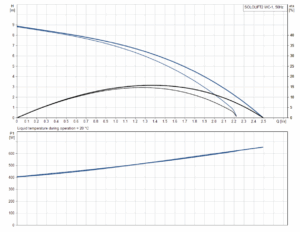

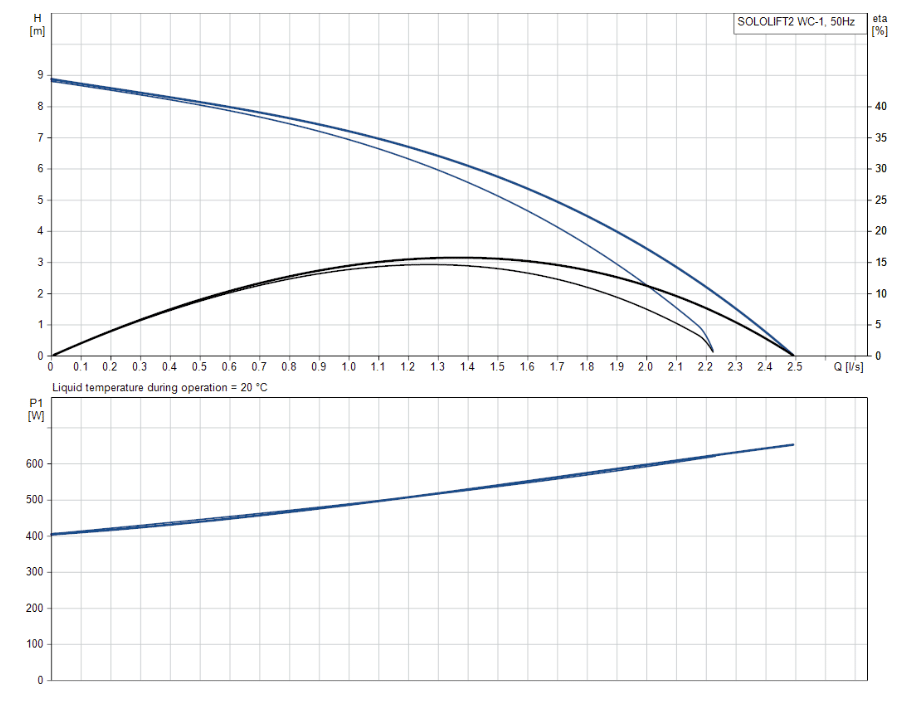

| Curve tolerance |
ISO9906:2012 3B |
Materials
Installation
| Pump inlet |
32/36/40, DN 100 |
| Pump outlet |
22/25/28/32/36/40 |
| Number of leads |
3X0,75MM2 |
Liquid
| Liquid max temp |
50 °C |
| Density |
998.2 kg/m³ |
Electrical data
| Power input – P1 |
620 W |
| Mains frequency |
50 Hz |
| Rated voltage |
1 x 220-240 V |
| Rated current |
3 A |
| Cos phi – power factor |
0.92 |
| Rated speed |
2800 rpm |
| Enclosure class (IEC 34-5) |
IP44 |
| Insulation class (IEC 85) |
F |
| Thermal protec |
THERMIK S06-150-05 |
| Length of cable |
1.2 m |
| Cable type |
H05VV-F-3G |
| Type of cable plug |
AUSTRALIEN |
Others
| Net weight |
7.25 kg |
| Gross weight |
9.55 kg |
| Product range |
Australia |
| Country of origin |
DE |
| Custom tariff no. |
8413709062 |
