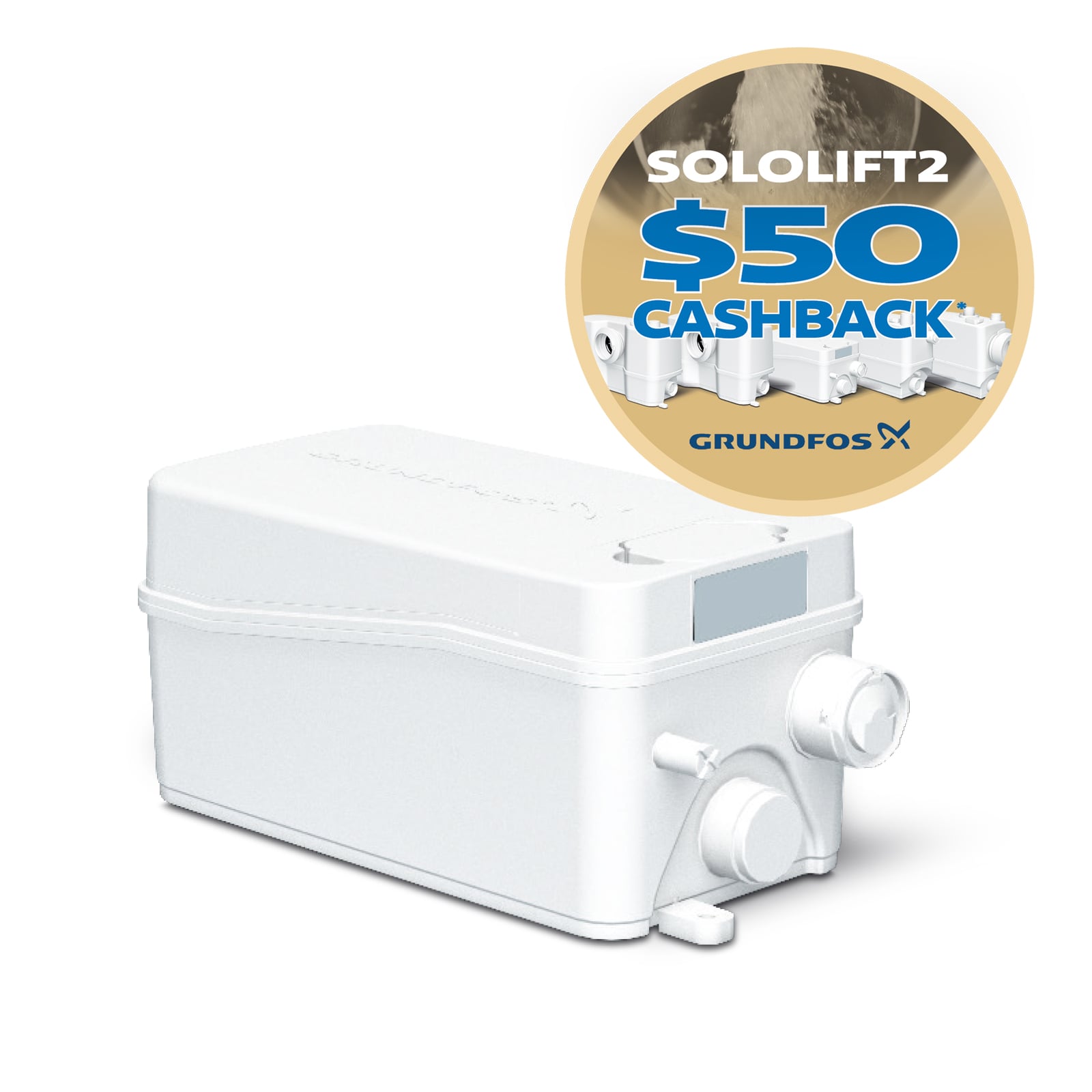

Grundfos Sololift2 D-2 Lifting Station


SKU: D-2 Categories: ,

Grundfos Sololift2 D-2 Lifting Station

Sololift2 D-2 is a small, compact automatic lifting station suitable for pumping of wastewater off places in private dwellings where greywater (w/o faeces) cannot be led directly to the sewer by means of a natural downward slope. Sololift2 D-2 is typically used for cabinet showers, washbasins or bidets in basements below sewer level, in connection with the renovation or modernisation of existing buildings, where the location may be remote from the main soil pipe so that a natural slope cannot be established. Extremely low switching levels for lowest construction heights, advantageously in case of connection of a shower receptor. Sololift2 D-2 is suitable for confined space conditions in built-in cabinets or also below shower receptors or pedestals. The pumping of liquids containing other material may cause faults and limit the scope of our guarantee.

The compact lifting station is equipped with:

  • Cable with or without plug (see technical data)
  • Discharge hose connector with several adaptors for pipes with Ø22-36mm
  • Integrated non return valve
  • Dry and high performance motor unit incl. thermal protection, pressure switch and controller
  • Flexible connectors for inlet (adjustable in height) of pipes Ø36 or 40
  • Manual anti clogging function and separate drain connection for service
  • Venting valve with overflow protection
  • Uplift fixation clips

Design according to EN12050-2 and production inspection by external institute with unique features focused on quick installation, long lasting operation and easy clean service.

Pumped liquid: any viscous fluid
Maximum liquid temperature: 122 °F
Density: 62.29 lb/ft³

Approvals on nameplate: CE,TR,CSA
Curve tolerance: ISO9906:2012 3B


Size of suction port: 1.25/1.5 inch
Size of outlet port: 0.75/1 inch
Number of leads: 3X0,824MM2

Electrical data
Power input – P1: 320 W
Main frequency: 60 Hz
Rated voltage: 1 x 110-120 V
Rated current: 3 A
Cos phi – power factor: 0,95
Rated speed: 3295 rpm
Enclosure class (IEC 34-5): IP44
Insulation class (IEC 85): F
Length of cable: 3.937 ft
Cable type: SJTW

Net weight: 9.99 lb
Gross weight: 12.2 lb
