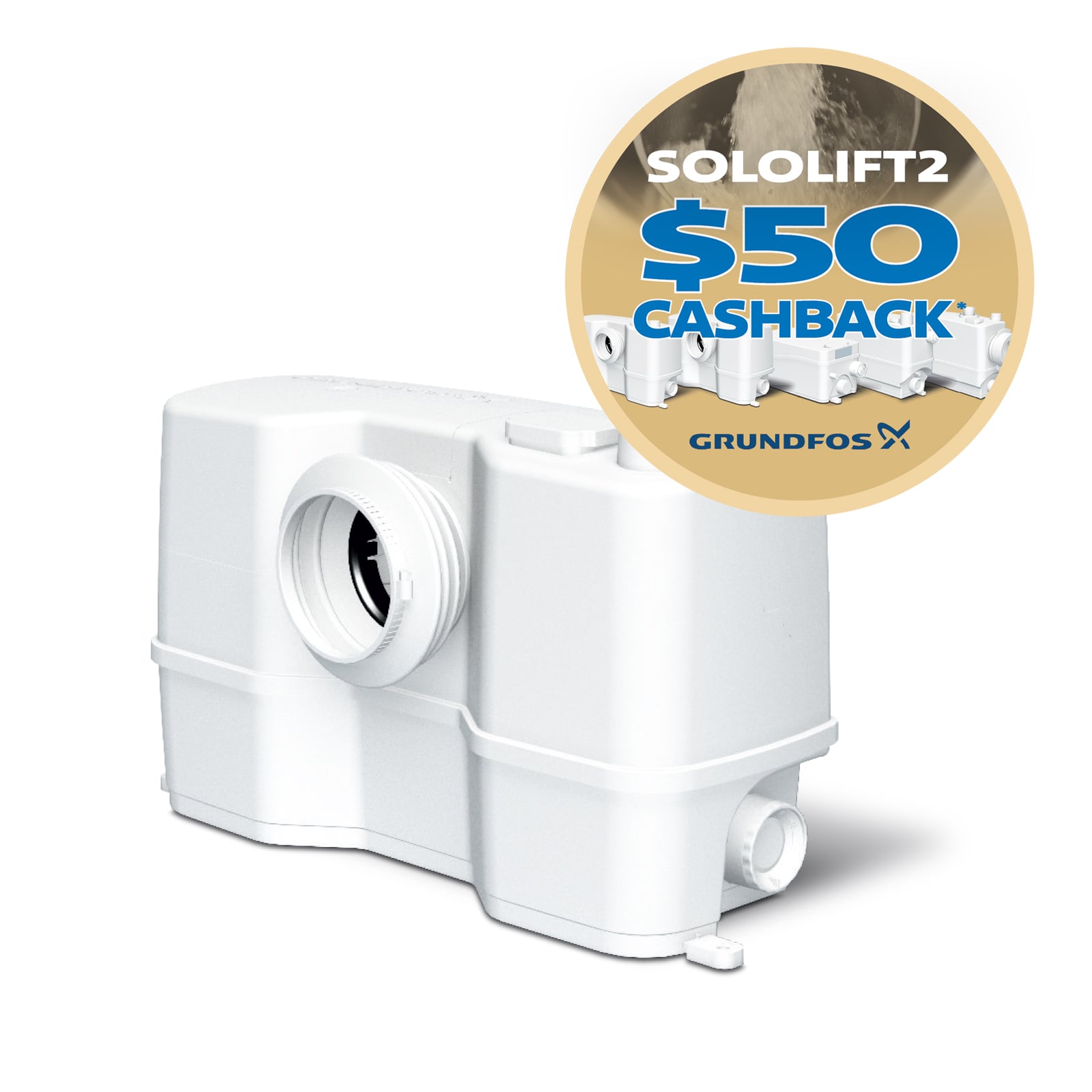

Grundfos Sololift2 WC-3 Lifting Station 97775325


Availability: In stock

SKU: SOLOLIFT2 WC-3 97775325 Categories: , GTIN: 5710624187340

Grundfos Sololift2 WC-3 Lifting Station 97775325


Sololift2 WC-3 is a small, compact automatic lifting station suitable for pumping of wastewater off places in private dwellings where wastewater cannot be led directly to the sewer by means of a natural downward slope.

Sololift2 WC-3 is suitable for pumping wastewater from a toilet containing toilet paper and faeces with additional connections on the lid and to the sides of the tank for e.g. washbasin, shower or bidet.

The pumping of liquids containing other material may cause faults and limit the scope of guarantee.

Sololift2 WC-3 is typically used to dewater:

  • toilet, washbasin, shower and bidet in basements below sewer level,

in connection with the renovation or modernisation of existing buildings, where the location may be remote from the main soil pipe so that a natural slope cannot be established. Extremely low switching levels for lowest construction heights, advantageously in case of connection of a shower receptor.

The compact lifting station is equipped with

  • Cable with or without plug (see technical data)
  • Horizontal or vertical fastening possibility of discharge hose connector with several adaptors for pipes with Ø22-40mm
  • Integrated non return valve
  • Dry and high performance motor unit incl. thermal protection, pressure switch and controller
  • DN100 toilet connection hose
  • Two flexible connectors for inlet (adjustable in height) of pipes Ø36 or 40
  • Slot for an alarm board with buzzer (accessory)
  • Manual anti clogging function and separate drain connection for service
  • Venting valve with overflow protection
  • Uplift fixation clips
Product name SOLOLIFT2 WC-3
Product No 97775325
EAN number 5710624187340

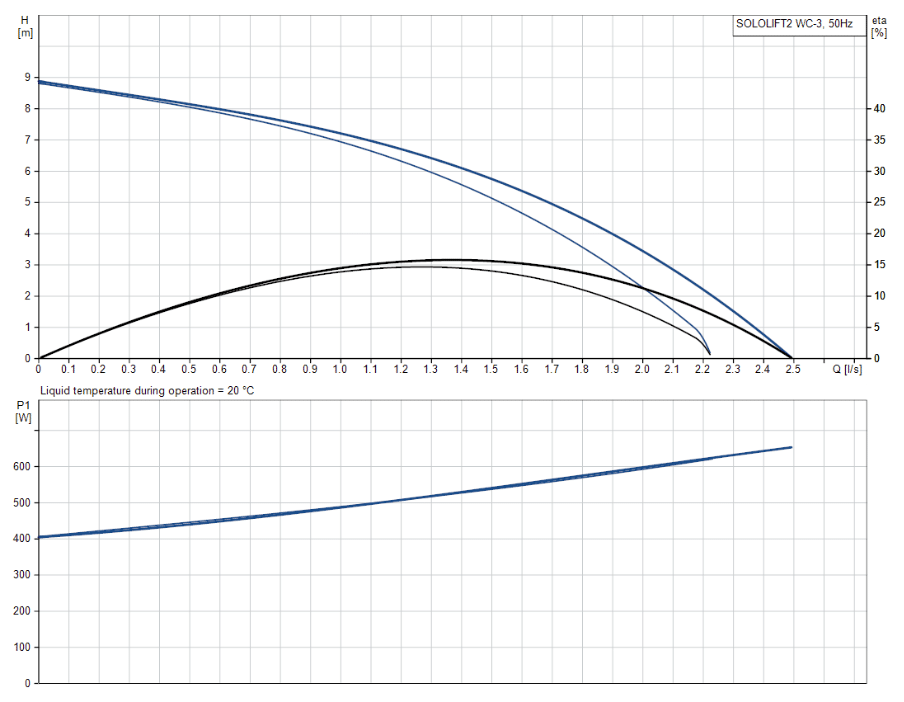

Head max 8.5 m
Approvals on nameplate CE,TR,VDEEMV,VDE,MORO
Curve tolerance ISO9906:2012 3B


Tank Plastic


Pump inlet 32/36/40, 36/40/50, DN 100
Pump outlet 22/25/28/32/36/40
Number of leads 3X0,75MM2


Liquid max temp 50 °C
Density 998.2 kg/m³

Electrical data

Power input – P1 620 W
Mains frequency 50 Hz
Rated voltage 1 x 220-240 V
Rated current 3 A
Cos phi – power factor 0.92
Rated speed 2800 rpm
Enclosure class (IEC 34-5) IP44
Insulation class (IEC 85) F
Thermal protec THERMIK S06-150-05
Length of cable 1.2 m
Cable type H05VV-F-3G
Type of cable plug AUSTRALIEN


Net weight 7.3 kg
Gross weight 9.3 kg
Product range Australia
Country of origin RS
Custom tariff no. 8413709062
Weight 9 kg
Dimensions 54 × 23 × 42 cm
