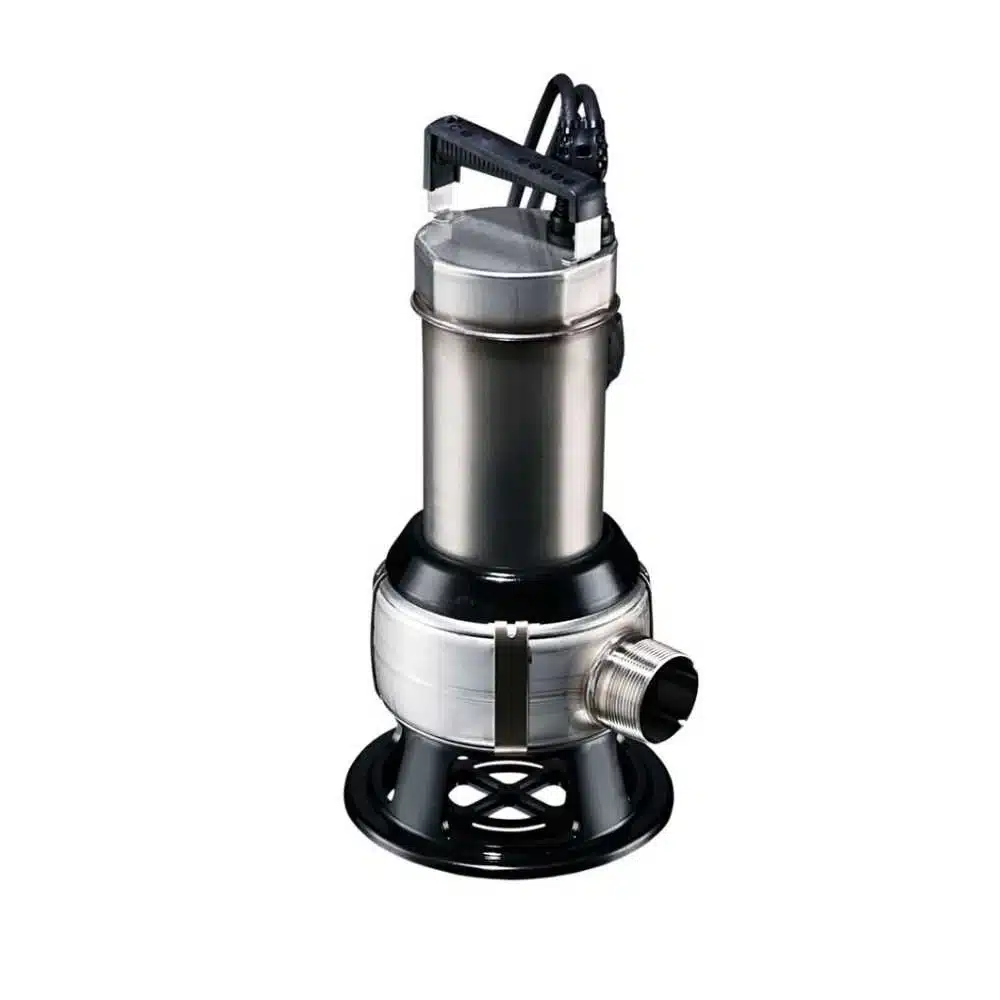

Grundfos Unilift AP 50B.50.11.3V Submersible Pump
96468195
Submersible effluent pump
The Grundfos Unilift AP 50B.50.11.3V is a vertical single-stage stainless steel submersible pump with integrated submersible 3-phase motor, designed for pumping wastewater with particles up to 50mm. It can be installed on an auto coupling, allowing for easy maintenance and other purposes.
The pump is fitted with ring stand and carrying handle and is supplied with a 10m mains cable and a level switch for automatic start and stop.
The impeller is a VORTEX impeller for surface water, groundwater, wastewater and similar.
The pump has a double shaft seal and an intermediate oil chamber pre-filled with non-toxic special oil.
The motor is insulation class F and has long-life deep-groove greased-for-life ball bearings.
2 Year Manufacturer Warranty.
Product name | UNILIFT AP50B.50.11.3V |
Product No | 96468195 |
EAN number | 5700394936705 |
Technical
Maximum flow | 8.06 l/s |
Maximum head | 14 m |
Type of impeller | VORTEX |
Max. Particle | 50 mm |
Approvals | CE,RCM,VDE,LGABG,EAC,MORO,UKCA,CNROHSEXP,SEPRO |
Rated speed | 2785 rpm |
Materials
Pump housing | Stainless steel |
EN 1.4301 | |
AISI 304 | |
Impeller | Stainless steel |
EN 1.4301 | |
AISI 304 |
Installation
Range of ambient temperature | 0 .. 40 °C |
Type of connection | Rp |
Size of connection | 2 inch |
Maximum installation depth | 7 m |
Inst dry/wet | S |
Auto-coupling | Y |
Liquid
Liquid temperature range | 0 .. 40 °C |
Density | 998.2 kg/m³ |
Electrical data
Power input P1 | 1.75 kW |
Rated power – P2 | 1.31 kW |
Mains frequency | 50 Hz |
Rated voltage [V] | 3 x 400 V |
Rated current | 2.81 A |
Cos phi – power factor | 0.90 |
Rated speed | 2785 rpm |
Enclosure class (IEC 34-5) | IP68 |
Insulation class (IEC 85) | F |
Built-in motor protection | NONE |
Thermal protec | external |
Length of power cable | 10 m |
Type of cable plug | NONE |
