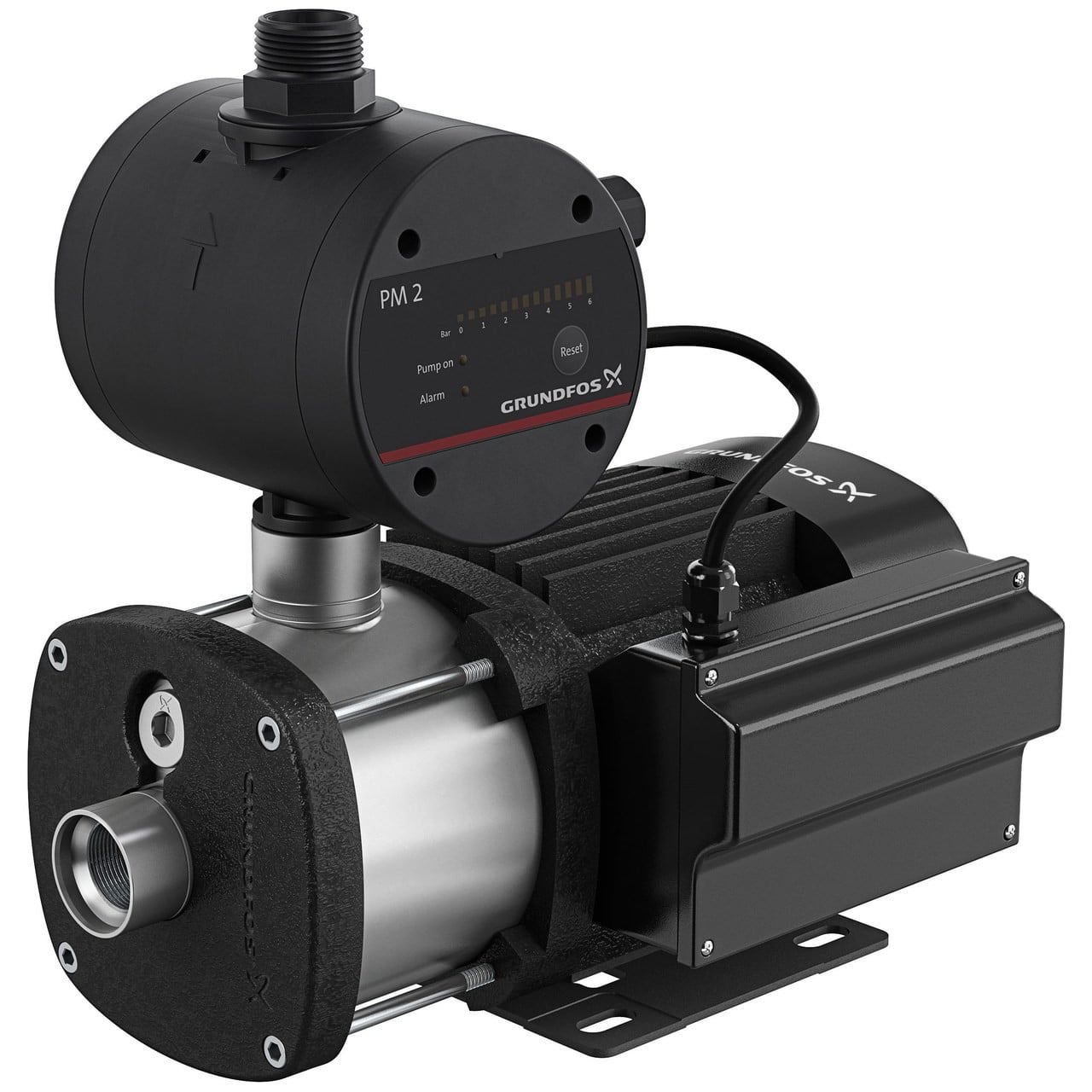

Grundfos CMB-SP 1-36 I-C-A-A-A-A Self-Priming Pump 98507562
Grundfos CMB-SP 1-36 I-C-A-A-A-A Self-Priming Pump 98507562 - Image 2
Grundfos CMB-SP 1-36 I-C-A-A-A-A Self-Priming Pump 98507562 - Image 3
Grundfos CMB-SP 1-36 I-C-A-A-A-A Self-Priming Pump 98507562 - Image 4

Grundfos CMB-SP 1-36 I-C-A-A-A-A Self-Priming Pump 98507562

$745.00

Product Documents

Availability: In stock

None 25mm Brass Y-Strainer +$25.00 32mm Brass Y-Strainer +$35.00 40mm Brass Y-Strainer +$50.00 50mm Brass Y-Strainer +$75.00
SKU: CMB-SP 1-36 I-C-A-A-A-A Categories: , GTIN: 5711496303432

Grundfos CMB-SP 1-36 I-C-A-A-A-A Self-Priming Pump 98507562

The Grundfos CM Booster self-priming pump with PM1 pressure manager is a compact booster solution for water supply in domestic applications. The pressure booster unit consists of a Grundfos CM self-priming pump and a Grundfos PM1 pressure manager. The pressure manager allows the pump to start and stop automatically according to demand and protects the pump from dry running. The CM Booster self-priming pump can create a suction lift of up to 8 m, and it is very easy to install. When the booster has been connected to the pipework, just plug it into a socket, and the system is operational.

Features

  • compact
  • easy installation
  • self-priming up to 8 m
  • automatic resetting of alarms
  • dry-running protection
  • anti-cycling (leakage detection)
  • maximum continuous operating time.

Applications: The Grundfos CM Booster self-priming pump with PM1 pressure manager is mainly used for domestic and light commercial water supply or booster systems.

Motor / power: 500W
Max. flow: 25T/min
Head: 36m
Inlet: 1″F / 25mm
Outlet: 1″M / 25mm
Pressure: 360kPa
Body: 304 Stainless Steel
Diffuser: Technopolymer
Impeller:304 Stainless Steel
Pump Shaft: 304 Stainless Steel
Mechanical Seal : Carbon with resin/ceramic
Start pressure: PM1 – 1.5 bar
Warranty on pump: 2 Years
Code: 98507562

Weight 20 kg
Dimensions 46 × 28 × 39 cm

Brand

Grundfos Pumps

ASC is the largest stockist of Grundfos Domestic Building Products. This includes the famous Grundfos CMB and JET range of domestic water pumps, submersible pumps, waste water pumps, drainage pumps and variable speed pumps. Grundfos Pumps are world renowned pump manufactures, and deliver pumps to over 80 countries world-wide. Grundfos Australia PTY LTD is part of this global network delivering pump expertise and innovation. Whilst initially established to support mining and agricultural sectors, the demand for good quality pumps at a domestic level saw Grundfos bring it's range to Australia. Since 1980, Grundfos Pumps has grown across to five states, bringing one of the most comprehensive range of pumps to the Australian market. Grundfos stands behind all of our products and all of our customers – from farmers who need reliable water in remote paddocks, to miners who need constant supply and pressure to maintain production, to the residents of houses, offices and apartments all over Australia, who’ve come to enjoy a clean and steady water supply as a part of their everyday lives. Grundfos expertise
  • Pumps and Motors
  • Submersible pumps
  • Single stage pumps (end suction, inline and splitcase)
  • Multistage pumps
  • Wastewater pumps
  • Solar and wind powered systems
  • Fire pumps
  • Mixers, flow makers, aerators and ejectors
  • Domestic boosters
  • Boosting pumps and systems
  • De-watering and drainage pumps
  • Dosing and disinfectant pumps
  • Controls and Monitoring
  • Accessories
