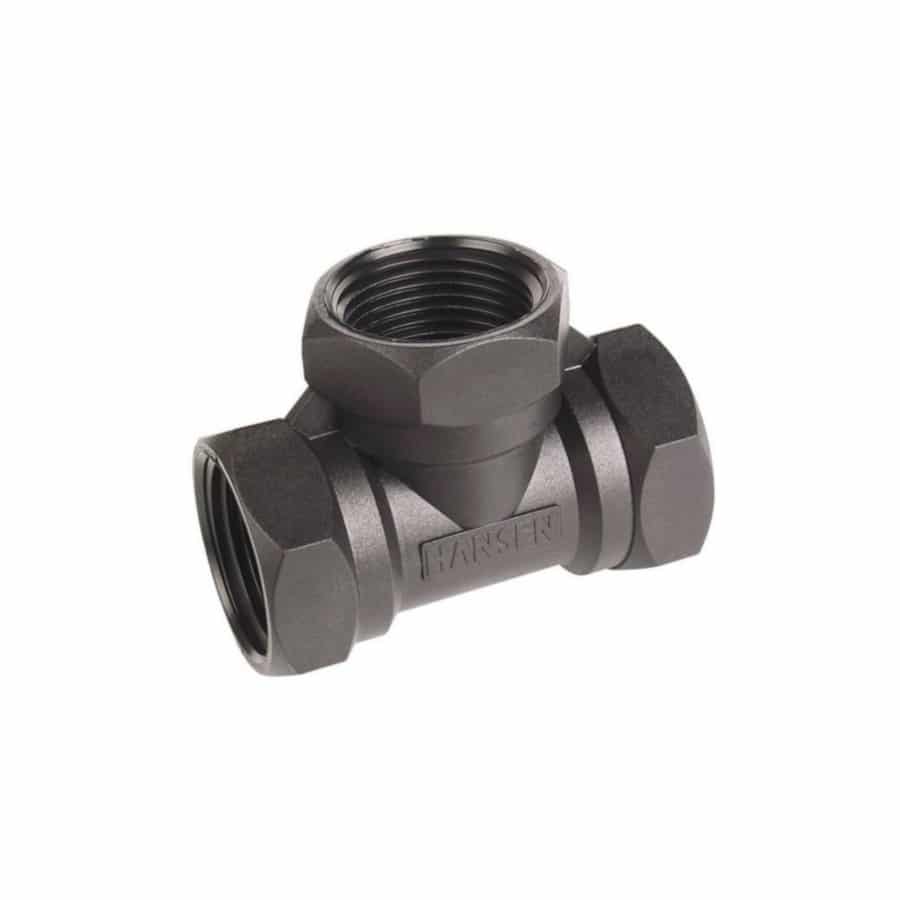

Hansen Female Threaded Tee

Used to connect three Male Threads.  BSPT x BSPT x BSPT.

Hansen Female Threaded Tee

From: $2.75

SKU: HTT Categories: , ,

Hansen Female Threaded Tee

SKU: HTT

Features

  • Manufactured in New Zealand using the best quality materials to withstand the harshest weather conditions.
  • Largest Medium Density fitting range made in New Zealand.
  • One piece fitting captive components when fitting assembled correctly.
  • Seal is pre-lubricated for easy pipe insertion and reliable leak free connections.
  • UV Stabilised high quality virgin polyethylene giving weather, termite, fungi and bacterial resistance.
  • High pressure rated.
  • Sleek, compact design for easy installation.
  • Easy grip nuts for rapid winding onto pipe.
  • Dependable, high quality threaded components.
  • Potable (drinkable) water approved.

Technical Info

Pressure & Flow Rate

Chemical Resistance



Dimensions & Materials

HTT Fitting Measurements

Installation & Assembly

Threaded Fitting Installation

FAQ

Can I use Hansen True Fit Fittings in my swimming pool/spa set up?

No, as the high concentration of chlorine used in the water for pools will attack the material. The fitting material is only suitable for use with domestic water. Hansen products that are used in this application will not be covered by our Hansen Warranty.

Can I use these fittings with metal fittings?

Yes. For more information on installation tips refer to installation instructions & video links referenced.

Does this fitting carry Hansen Warranty?

Yes, all Hansen manufactured products carry our Hansen Warranty.

Can I use Hansen True Fit Fittings under driveways, paths and other solid foundations?
No, Hansen does not recommend the use of any Hansen Easy Fit Fittings under any driveways, paths or solid foundations.
Do I need to support my fittings?
Yes. all pipework must be adequately supported.
How tight should I tighten my Hansen Threaded fittings?

Do not over tighten. The right way to assemble a threaded fitting is hand tight plus one to two turns – no more! For more information on installation tips refer to installation instructions.

What temperature can I use Hansen fittings at?

Hansen have tested all its products for use with cold water up to a maximum temperature of 60°C (140°F). We do not recommend the use of these products with temperatures higher than 60°C (140°F) as plastic expands due to temperature increases. Hansen cannot guarantee the products will perform when used with temperatures over 60°C (140°F). Hansen products that have failed in temperatures higher than 60°C (140°F) will not be covered by our Hansen Warranty.

Which type of thread sealant is recommended?
Use a thread sealant on all threaded connections. We recommend Loctite 5331.

AS/NZS 4020:2018 TESTING OF PRODUCTS FOR USE IN CONTACT WITH DRINKING
WATER

Weight 2 kg
Dimensions 29 × 78 × 34 cm
Size

100mm HTT100, 80mm HTT80, 65mm HTT65, 50mm HTT50, 40mm HTT40, 32mm HTT32, 25mm HTT25, 20mm HTT20, 15mm HTT15

Brand

Hansen
