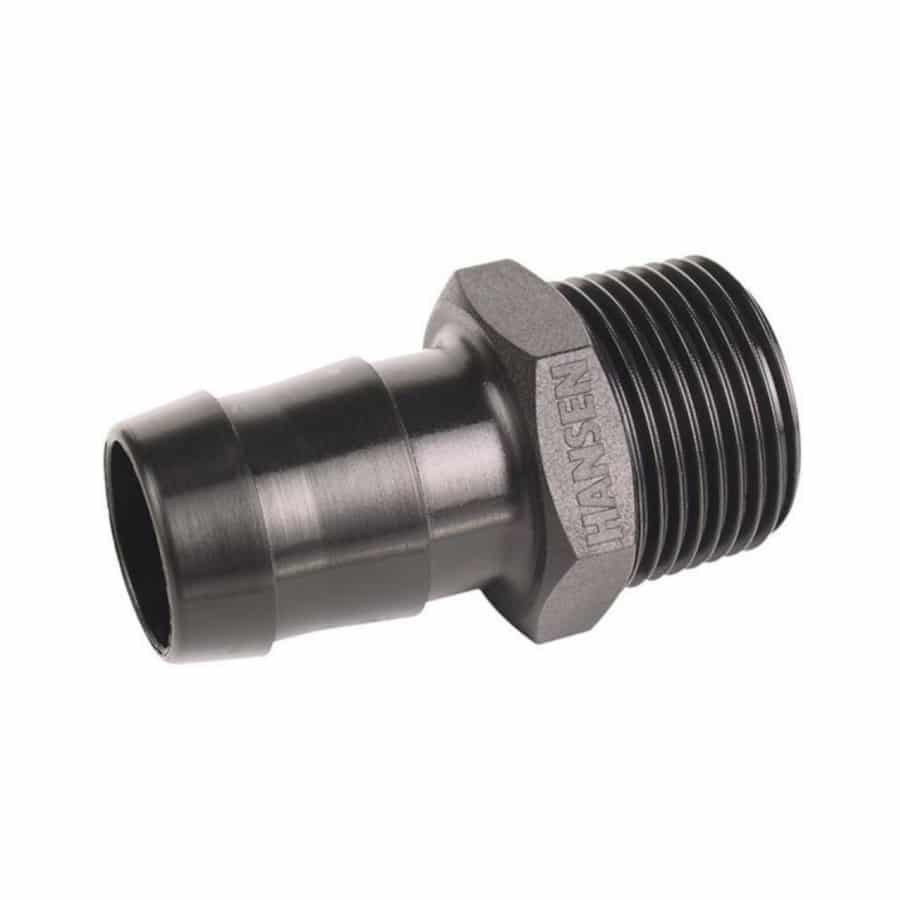

Hansen Male Hose Tail

 Used for connecting female threads to flexible pipe and hose, i.e. thin wall Irrigation tubing, suction and rubber hoses. Push on hose and use a hose clip to hold hose on. The Hansen Male Hose Tails are ideal for any situation where a reliable threaded connection is necessary.

Hansen Male Hose Tail

From: $1.50

SKU: HHT Categories: ,

Hansen Male Hose Tail

HHT

Features & Benefits

  • Precision Heavy Duty Tapered Threads give a Strong Reliable Seal
  • Manufactured from a Raw Material Approved For Use With Potable (drinkable) Water
  • Manufactured from High Quality Glass Fibre Reinforced Nylon giving a Weather, Termite, Fungi & Bacteria Resistant
  • Common Applications Include Horticultural, Agricultural, Irrigation, Marine & Plumbing
  • Material strong enough to minimise potential cross threading
  • WRAS – Approval for use with potable (drinkable) water as they will not leach contaminants into the water.
  • Suitable for use above or below ground in varying operating pressures and temperatures
  • Strong, Lightweight and Compact
  • Available in a variety of thread combinations and connections.
  • New Zealand Made



Threaded Fitting Installation







FAQ

Can I use Hansen fittings in my swimming pool/spa set up?

No, as the high concentration of chlorine used in the water for pools will attack the material. The fitting material is only suitable for use with domestic water. Hansen products that are used in this application will not be covered by our Hansen Warranty.

Can I use these fittings with metal fittings?

Yes. For more information on installation tips refer to installation instructions.

Do I need to support my fittings?

Yes. All pipe work must be adequately supported.

Does this fitting carry Hansen Warranty?

Yes, all Hansen manufactured products carry our Hansen Warranty.

Can I use Hansen True Fit Fittings under driveways, paths and other solid foundations?
No, Hansen does not recommend the use of any Hansen Easy Fit Fittings under any driveways, paths or solid foundations.
How tight should I tighten my Hansen threaded fittings?
Do not over tighten. The right way to assemble a threaded fitting is hand tight plus one to two turns – no more! For more information on installation tips refer to installation instructions.
Which type of thread sealant is recommended?

Use a thread sealant on all threaded connections. We recommend Loctite 5331.

Which temperature can I use my Hansen fittings at?

Hansen have tested all its products for use with cold water up to a maximum temperature of 60°C (140°F). We do not recommend the use of these products with temperatures higher than 60°C (140°F) as plastic expands due to temperature increases. Hansen cannot guarantee the products will perform when used with temperatures over 60°C (140°F). Hansen products that have failed in temperatures higher than 60°C (140°F) will not be covered by our Hansen Warranty.

AS/NZS 4020:2018 TESTING OF PRODUCTS FOR USE IN CONTACT WITH DRINKING
WATER

Weight 2 kg
Dimensions 29 × 78 × 34 cm
Size

6mm HHTP06, 8mm HHT08, 10mm HHT10, 15mm HHT15, 20mm HHT20, 25mm HHT25, 32mm HHT32, 40mm HHT40, 50mm HHT50, 80mm HHT80

Brand

Hansen
