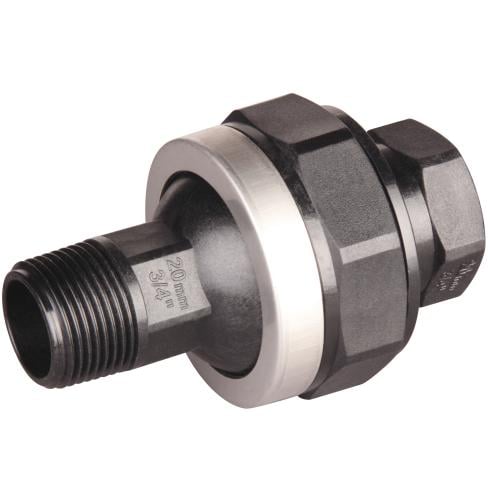

Knuckle Union 25x25mm Male Thread x Female Thread
SKU: KU25M25F
Features and Benefits
- Used to connect and disconnect pipe work or valves quickly and easily from pumps and existing installations.
- Ultimate flexibility around pumps.
- Quick connect/disconnect solution around pumps or along the trunk of a pipe.
- 9° ‘knuckle’ movement providing greater flexibility at installation time, removing the need for the pipe work to line up exactly with your pump.
- Pump can easily be removed or installed from system for servicing by undoing common nut.
- Pump can be misaligned from pipe work by a total of 9°.
- Multiple configurations enables this fitting to meet the needs of just about any situation.
- Ability to connect to poly pipe applications directly from the pump or in-line.
- Fits into the extensive range of Hansen Easy Fit & True Fit pipe fittings.

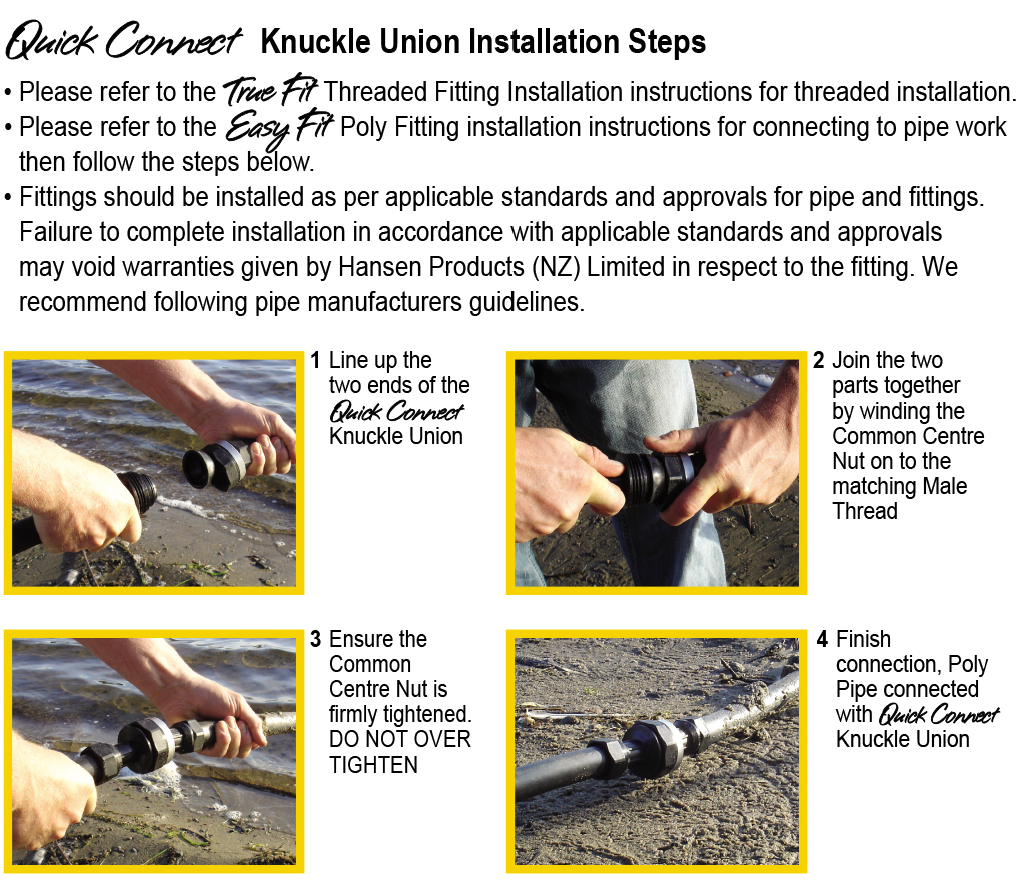

Installation & Assembly
FAQ
Can I use your Hansen Quick Connect Union for easy service of my pump?
Yes, by installing a Hansen Quick Connect Union on both the inlet and outlet you effectively have a barrel union and poly joiner in one fitting which allows you to undo two common centre nuts and easily lift your pump out for service.
Does this fitting carry Hansen Warranty?
Yes, all Hansen manufactured products carry our Hansen Warranty.
I have a situation where I would like to connect to an existing stock water line out the back of the farm for filling a spray tank to save travel time when spraying. Can I use a Hansen Quick Connect Union for this?
Yes, as long as there is any isolating valve nearby you can install a poly to poly Hansen Quick Connect Union and purchase a ball to poly pipe tail for your tank to fill pipe length and quickly hook into this line when required.
I’ve had to replace my suction fitting on my pump as it snapped and now I can’t align my pump back to the bolts it was held in place with. Will your Hansen Quick Connect Union help me here?
Yes, the reason your fitting failed was the same reason you can’t line up the bolt holes now, the suction line was never lined up with the pump intake. Try a male to poly Hansen Quick Connect Union in the size you require. This will also mean you can bolt down your pump first, attach both parts of the Hansen Quick Connect Union to the pump and poly pipe and then just connect the fitting with common centre nut.
AS/NZS 4020:2018 TESTING OF PRODUCTS FOR USE IN CONTACT WITH DRINKING
WATER
