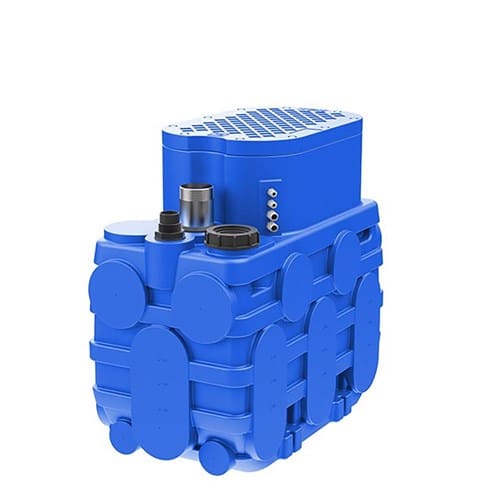

Zenit BlueBOX250DG Pump Collecting Station 250L 711123
includes: 1 x ZEN-DGBLUE40/2/G40VMGEX
supplied, not fitted.
BlueBOX Specifications
Rated volume from 60 to 500 litres
Suitable For:
- Rainwater, surface water and seepage water containing solids
- Wastewater and sewage in civil installations
- Wastewater from the toilets of public establishments
Dimensions (mm) : 804 x 544 x 635
Pack Weight: 23KG
Extension element for 250 and 500 litre models
Intake pipe diameter up to DN110
Delivery pipe diameter DN40/DN50
Constant, thick walls with horizontal reinforcing ribs
Contoured bottom to prevent stagnation and facilitate positioning of the pump.

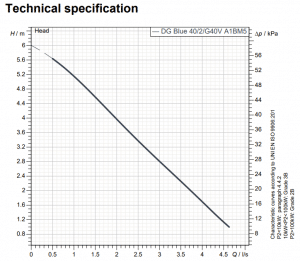

Pump Specifications
| Brand | Zenit Pumps |
| Product Type | Submersible Pump |
| Suitable For | Dirty Water |
| Bar | 0.6 Bar |
| Approval | IECex Zone 2 Approved |
| Flow Range Category | c. 200 – 299 L/min |
| Flow Rate (L/min) | 270 L/min |
| Hp | 0.4 Hp |
| Kilo Watts | 0.3 kW |
| Head Range Category | a. 0 – 39 m |
| Max Head (m) | 6 m |
| Port Size Outlet | 1 1/2″ BSPF outlet |
| Particle Size | 40 mm |
| Warranty (months) | 24 Months |
| Volts | 240 V |
| Watts | 300 W |
Â
Configuration Fixed
Construction
1. Thick polyethylene tank reinforced with side ribs for strength and reliability.
Lifting and carrying handles integrated in the structure.
2. Arrangement for intake pipe connection on each side with standard dimensions engraved in the mould for precise wall drilling. Several tanks can be joined through a side duct to obtain multiple compositions and increase the total capacity of the system.
3. Through-wall fitting for emergency emptying (standard). Possibility of installing a gate valve (optional).
4. Slots integrated in the structure for floor fastening. The system uses normal expansion plugs, no special brackets are required.
5. Sturdy walk-over cover (max. permissible load 100 kg) with gasket to guarantee an watertight seal against liquids and odours.
6. Maximum level alarm float. (optional for blueBOX 60, 90 and 150 standard)
7. Air venting system with activated carbon filter and ready for connection to external pipework DN40. The safety valve with float ensures a tight closure of the pipeline if the level rises and prevents possible liquid spillage.

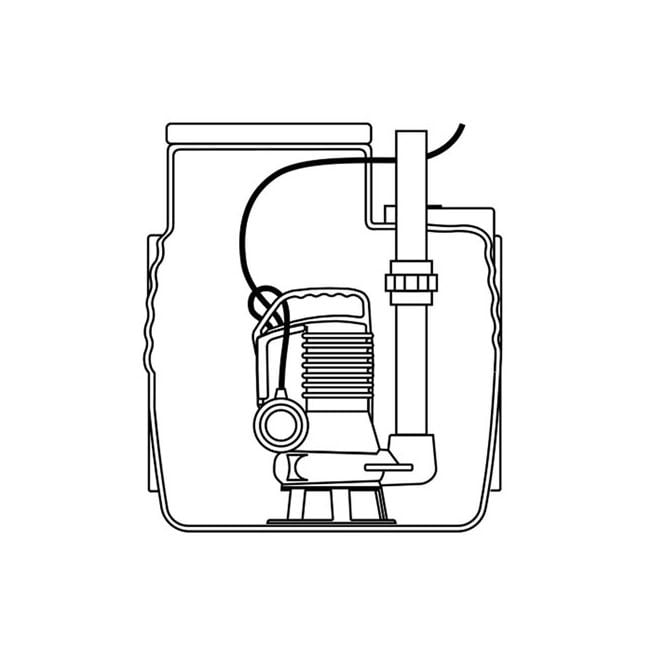

8. Direct installation of the pump with a quick coupling system for the delivery pipe that allows the pump to be easily separated from the system for maintenance without disconnecting the pipes from the lifting station.
9. Installation with bottom coupling device (DAC) to allow the pump to be taken out quickly, even when the tank is full. The coupling device is installed by means of a movable plate and does not require any tank drilling.
10. An extension element is available for the 250 and 500 models to raise the cover level by approximately 300 mm.
Â
Certification
Thanks to careful design and testing, blueBOX has passed all the tests required by the European procedure for lifting stations and is certified according to 12050-1/2 standard, which sets out the requirements for pumping systems, in order to define the correct draining of wastewater with and without faecal material.
12 Month Zenit Warranty.

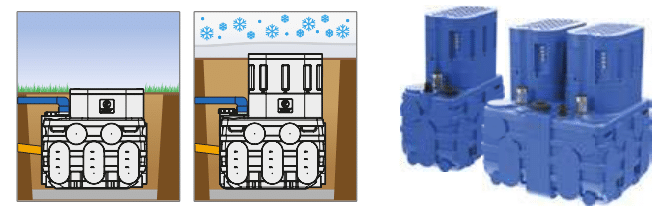

Optional ExtensionÂ
An extension element is available for the 250 and 500 models to raise the cover level by approximately 300mm.
This also makes underground installation possible in very cold locations where the tank needs to be placed at a greater depth than standard. Call us on 1300 229 606 for a price.
Â
Zenit DG Blue Features
.
Lifting handle
Ergonomic technopolymer lifting and carrying handle. Clip floatswitch adjustment.
Cable gland System
Innovative cable gland system with twin O-rings to ensure maximum tightness.
Motor and electrical accessories
Dry motor with thermal protections. Internal startup capacitor.
Mechanical seals
One silicon carbide mechanical seal (SiC) and one alumina graphite mechanical seal (AL), V-ring in direct contact with the liquid.
Oil sump
Oil sump which guarantees longer mechanical seal lifetime, and is easily accessible thanks to a patented system to simplify maintenance procedures.
Support foot
Support foot in impact-resistant polypropylene.
Free passage
Full free passage allowing the expulsion of solids and preventing fouling of the impeller.
