Zenit ZEN-DGBLUE40/2/G40VMGEX Submersible Vortex Pump – 800344
Efficient operation submersible cast iron pumps suitable for use with soiled biological wastewaters, sewage in rainwater & seepage. This electric pump is intended for both domestic and commercial use. DG (DRAGA) version with technopolymer vortex recessed impeller to pass soft solids to 40mm diameter. A 10m power lead (with 3 pin plug on single-phase pumps) to suit outdoor installations.
Patented sealing system incorporating dual Silicon Carbide /Graphite Alumina mechanical seals in oil bath for longer seal life. Also includes an anti-stressing system for power cable reduces cable damage and water entry, a
cable holder grommet built into handle allows adjustment of float switch cable length, a cast iron pump body for durability, cast iron support base assists in the passage of soft solids to 40mm and an ergonomic technopolymer carry handle for safety and comfort.
Technical Specifications
| Brand | Zenit Pumps |
| Product Type | Submersible Pump |
| Suitable For | Dirty Water |
| Bar | 0.6 Bar |
| Approval | IECex Zone 2 Approved |
| Flow Range Category | c. 200 – 299 L/min |
| Flow Rate (L/min) | 270 L/min |
| Hp | 0.4 Hp |
| Kilo Watts | 0.3 kW |
| Head Range Category | a. 0 – 39 m |
| Max Head (m) | 6 m |
| Port Size Outlet | 1 1/2″ BSPF outlet |
| Particle Size | 40 mm |
| Warranty (months) | 24 Months |
| Volts | 240 V |
| Watts | 300 W |
SUITABLE FOR:
• Clean or slightly soiled water containing solids up to 40mm
• Wastewater and sewage
• Stormwater dewatering from under houses, yards and ponds
• Groundwater seepage, rainwater collection
• Water features
• Car parks, truck stops, vehicle workshops, bus depots and garages
• Clear or slightly soiled wastewaters
• Strained, seepage and underground pump-out waters
• Irrigation and pumping from wells and reservoirs

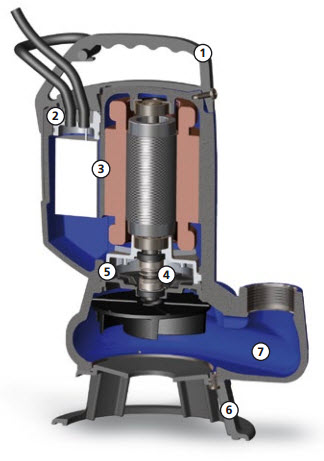

Zenit DG Blue Features
.
Lifting handle
Ergonomic technopolymer lifting and carrying handle. Clip floatswitch adjustment.
Cable gland System
Innovative cable gland system with twin O-rings to ensure maximum tightness.
Motor and electrical accessories
Dry motor with thermal protections. Internal startup capacitor.
Mechanical seals
One silicon carbide mechanical seal (SiC) and one alumina graphite mechanical seal (AL), V-ring in direct contact with the liquid.
Oil sump
Oil sump which guarantees longer mechanical seal lifetime, and is easily accessible thanks to a patented system to simplify maintenance procedures.
Support foot
Support foot in impact-resistant polypropylene.
Free passage
Full free passage allowing the expulsion of solids and preventing fouling of the impeller.
