Zenit ZEN-DGBLUEP150/2/G50VMEX Submersible Vortex Pump – 711182
Efficient operation submersible cast iron pumps suitable for use with soiled biological wastewaters, sewage in rainwater & seepage. This electric pump is intended for both domestic and commercial use. DG (DRAGA) version with technopolymer vortex recessed impeller to pass soft solids to 40mm diameter. A 10m power lead (with 3 pin plug on single-phase pumps) to suit outdoor installations.
Patented sealing system incorporating dual Silicon Carbide /Graphite Alumina mechanical seals in oil bath for longer seal life. Also includes an anti-stressing system for power cable reduces cable damage and water entry, a cable holder grommet built into handle allows adjustment of float switch cable length, a cast iron pump body for durability, cast iron support base assists in the passage of soft solids to 40mm and an ergonomic technopolymer carry handle for safety and comfort.
SUITABLE FOR:
• Clean or slightly soiled water containing solids up to 40mm
• Wastewater and sewage
• Stormwater dewatering from under houses, yards and ponds
• Groundwater seepage, rainwater collection
• Water features
• Car parks, truck stops, vehicle workshops, bus depots and garages
• Clear or slightly soiled wastewaters
• Strained, seepage and underground pump-out waters
• Irrigation and pumping from wells and reservoirs
APPLICATIONS
- Households
- Strata corporations
- water treatment plants
- Car parks
- Truck stops
- Vehicle Workshops
- Bus depots
- Garages
Technical Specifications
| Brand | Zenit Pumps |
| Product Type | Submersible Pump |
| Suitable For | Dirty Water |
| Bar | 1.23 Bar |
| Approval | IECex Zone 2 Approved |
| Flow Range Category | f. 500 – 999 L/min |
| Flow Rate (L/min) | 600 L/min |
| Hp | 1.5 Hp |
| Kilo Watts | 1.1 kW |
| Head Range Category | a. 0 – 39 m |
| Max Head (m) | 12.3 m |
| Port Size Outlet | 2″ BSPF outlet |
| Particle Size | 50 mm |
| Warranty (months) | 24 Months |
| Volts | 240 V |
| Watts | 1100 W |
Pack Weight: 26.20KG

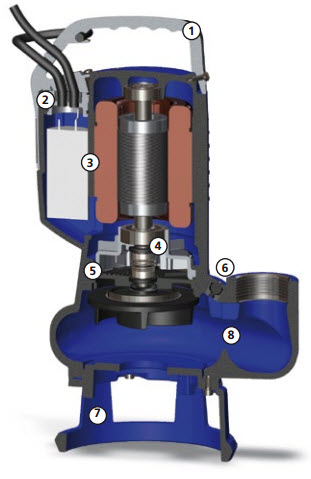

Zenit DG BluePRO Features
.
1. Lifting handle
Ergonomic aluminium alloy lifting and carrying handle, coated for excellent mechanical strength and corrosion resistance. Clip floatswitch adjustment.
2. Cable gland System
Innovative cable gland system with twin O-rings to ensure maximum tightness.
3. Motor and electrical accessories
Dry motor with thermal protections. Single-phase models with internal capacitor. Three-phase models with motor protection relay (option).
4. Mechanical seals
Two silicon carbide mechanical seals (2SiC), and V-ring in direct contact with the liquid.
5. Oil sump
Oil sump which guarantees longer mechanical seal lifetime, and is easily accessible thanks to a patented system to simplify maintenance procedures.
6. Breather
Breather which allows the air to be vented and ensure reliable pump priming even after long periods out of use.
7. Support foot
Reinforced technopolymer support foot with stainless steel plate (models 50, 75 and 100) or cast iron support foot (models 150 and 200).
8. Free passage
Full free passage allowing the expulsion of solids and preventing fouling of the impeller.
IECEx Zone 2 Approved
IECEx is the IEC System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres. It uses quality assessment specifications that are based on International Standards prepared by the International Electrotechnical Commission (IEC).
Zenit Submersible Pumps exceed the new standard.
As one of the leading names in water treatment technologies, this pump have been awarded the IECEx – the international certification covering the use of equipment and services in explosive conditions.
So what is a ‘hazardous area’?
You can’t be too careful in hazardous areas – which is any space where flammable liquids, vapours, gases or combustible dusts could occur in high enough quantities to cause a fire or even an explosion.
These include:
- car parks
- truck stops
- vehicle workshops
- bus depots
- and garages
