BIA-1VMS5/10M-MPT – VMS Manual Pressure Transducer Controlled Kit

BIA-1VMS5/10M-MPT – VMS Manual Pressure Transducer Controlled Kit

The Bianco NXT Summit Series vertical multi-stage pumps are an efficient solution for various fluid transfer applications – particularly in water supply, irrigation and industrial processes.

Free Delivery Australia Wide

BIA-1VMS5/10M-MPT – VMS Manual Pressure Transducer Controlled Kit

$4,010.00

SKU: BIA-1VMS5/10M-TRAN Categories: , , , ,

BIA-1VMS5/10M-MPT – VMS Manual Pressure Transducer Controlled Kit

BIA-1VMS5/10M-TRAN (812326)

BiANCO NXT Summit Series Pressure Transducer Controlled units are an all-in-one solution offering a professional quality range of vertical multistage pumps, engineered for exceptional efficiency, durability and dependable performance.
Operation is controlled by a 4-20mA Pressure Transducer connected to a BiANCO NXT SPC (Single Pump Controller) allowing for precise digital pressure adjustment.
Versatile and cost-effective, SUMMIT SERIES VMS solutions are designed for performance, reliability and ease of use.

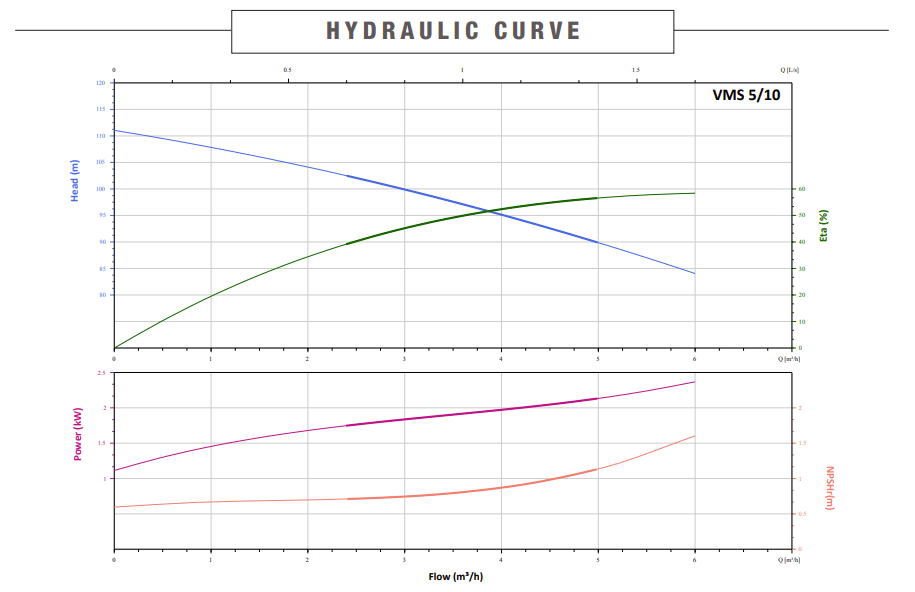

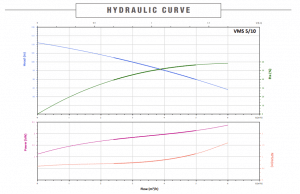

Pump Curve



Kit Includes

  • VMS Pump
    • Counter Flange (Available in DN25 to DN65)
    • Fiber Gaskets to suit Counter Flanges
    • Watermarked Spring Check Valve
    • Manifold (304 Stainless Steel)
    • 30 Bar Liquid Filled Pressure Gauge
    • Galvanised Single Pump Base
    • 25mm Ball Valve (304 Stainless Steel)
    • Braided Hose 20 Bar 1.5m 1” BSPF
  • BPT-18 25 Bar Pressure Tank Included in Scope of Supply
  • NXT SPC1-22 Control Panel
    BIA VMS 16bar 4-20mA pressure transducer

Technical Specifications

MAX FLOW 67L/min
MAX HEAD 111M
OPTIMUM OPERATING RANGE
2.41m3/hr @ 102.4m 39.4% eff
5m3/hr @ 89.9m 56.6% eff
WORKING AIR TEMP 0°C – 40°C
LIQUID TEMPERATURE -15°C – 120°C
HIGHEST EFFICIANCY 58.4%
MAXIMUM PUMP PRESSURE 33 bar
NET WEIGHT (KG) 38kg
RATED VOLTAGE/CURRENT Single phase 230V +10% – 6%
RATED CURRENT 11.8 amps
POWER (KW) 2.2kW 2 pole
CAPACITOR 40uF
MOTOR IP RATING IP55
MOTOR INSULATION Class F
MOTOR EFFICIENCY STD I.E.3
MOTOR EFFICIENCY 84.2%
COS ø 0.84
MECHANICAL SEAL AS-L-12
OUTLET DIN FLANGE DN32
DEFAULT CUT OUT 10.2 bar
DEFAULT CUT IN 8.4 bar
OVERPRESSURE ALARM 11.0 bar
MAINS POWER SUPPLY:
1 x 200-240 Volt N, PE 50Hz
3 x 380-415 Volt N, PE 50Hz
STARTING: Starting via Pressure Switch
TESTING: System is functionally tested and individual pump certified testing available
WARRANTY: 2 Years



Dimensions

Controller Details


The BiANCO NXT-SPC (Single Pump Controller) provides control and protection for an individual single phase pump.
The controller is simple to operate. The user not only enjoys superior control and protection of the pump but the user display provides user information about the running state of the system.
By digitally monitoring the running current, the response time of the BiANCO NXT SPC is superior to traditional analogue overload methods.
NXT-SPC has 2 x passive dry contacts and is equipped with a RS485 modbus interface to connect to a BMS

  • Manual or Automatic operation
  • NXT-SPC has an audible alarm and a flashing light to indicate an alarm state. It supports an external alarm unit
  • Pump accumulated running time memory
  • Pump start / stop delay time setting
  • Last 5 error log

Protection Functions
• Over voltage
• Under voltage
• Dry Run (under current)
• Overload (over current)
• Pump stall
• Open phase protection
• Pump ‘Anti-seize’ function (96 hr default)
Control Input
• 4-20mA level or pressure transmitter

Cutaway & Materials
