BIA-1VMS5/7M-MPT – VMS Manual Pressure Transducer Controlled Kit

BIA-1VMS5/7M-MPT – VMS Manual Pressure Transducer Controlled Kit

The Bianco NXT Summit Series vertical multi-stage pumps are an efficient solution for various fluid transfer applications – particularly in water supply, irrigation and industrial processes.

Free Delivery Australia Wide

BIA-1VMS5/7M-MPT – VMS Manual Pressure Transducer Controlled Kit

$3,710.00

SKU: BIA-1VMS5/7M-TRAN Categories: , , , ,

BIA-1VMS5/7M-MPT – VMS Manual Pressure Transducer Controlled Kit

BIA-1VMS5/7M-TRAN (812324)

BiANCO NXT Summit Series Pressure Transducer Controlled units are an all-in-one solution offering a professional quality range of vertical multistage pumps, engineered for exceptional efficiency, durability and dependable performance.
Operation is controlled by a 4-20mA Pressure Transducer connected to a BiANCO NXT SPC (Single Pump Controller) allowing for precise digital pressure adjustment.
Versatile and cost-effective, SUMMIT SERIES VMS solutions are designed for performance, reliability and ease of use.

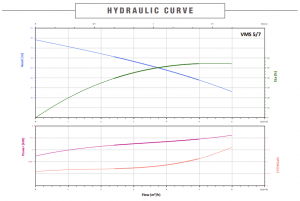

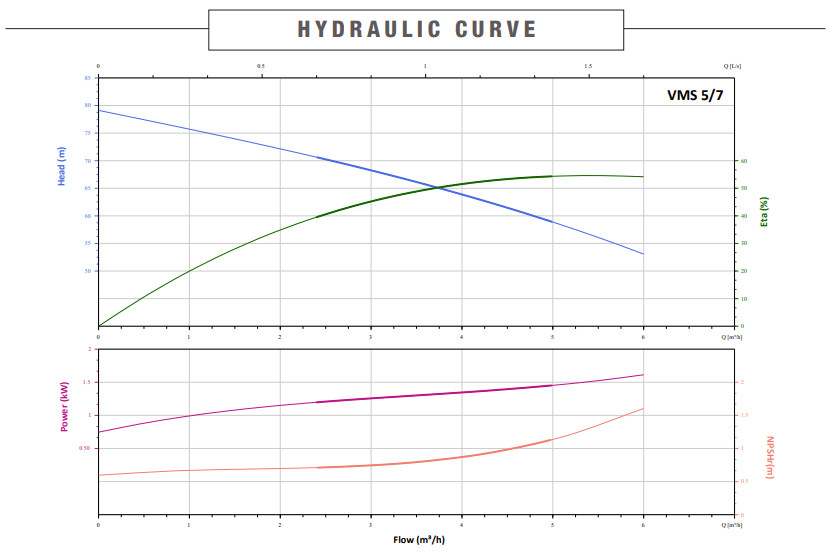

Pump Curve

Kit Includes

  • VMS Pump
    • Counter Flange (Available in DN25 to DN65)
    • Fiber Gaskets to suit Counter Flanges
    • Watermarked Spring Check Valve
    • Manifold (304 Stainless Steel)
    • 30 Bar Liquid Filled Pressure Gauge
    • Galvanised Single Pump Base
    • 25mm Ball Valve (304 Stainless Steel)
    • Braided Hose 20 Bar 1.5m 1” BSPF
  • BPT-18 10 Bar Pressure Tank Included in Scope of Supply
  • NXT SPC1-22 Control Panel
    BIA VMS 10bar 4-20mA pressure transducer

Technical Specifications

MAX FLOW 67L/min
MAX HEAD 79M
OPTIMUM OPERATING RANGE
2.41m3/hr @ 70.6m 39.7% eff
5m3/hr @ 58.8m 54.4% eff
WORKING AIR TEMP 0°C – 40°C
LIQUID TEMPERATURE -15°C – 120°C
HIGHEST EFFICIANCY 54.3%
MAXIMUM PUMP PRESSURE 33 bar
NET WEIGHT (KG) 31.2kg
RATED VOLTAGE/CURRENT Single phase 230V +10% – 6%
RATED CURRENT 8.0 amps
POWER (KW) 1.5kW 2 pole
CAPACITOR 30uF
MOTOR IP RATING IP55
MOTOR INSULATION Class F
MOTOR EFFICIENCY STD I.E.3
MOTOR EFFICIENCY 84.2%
COS ø 0.84
MECHANICAL SEAL AS-L-12
OUTLET DIN FLANGE DN32
DEFAULT CUT OUT 7.1 bar
DEFAULT CUT IN 5.4 bar
OVERPRESSURE ALARM 7.7 bar
MAINS POWER SUPPLY:
1 x 200-240 Volt N, PE 50Hz
3 x 380-415 Volt N, PE 50Hz
STARTING: Starting via Pressure Switch
TESTING: System is functionally tested and individual pump certified testing available
WARRANTY: 2 Years



Dimensions

Controller Details


The BiANCO NXT-SPC (Single Pump Controller) provides control and protection for an individual single phase pump.
The controller is simple to operate. The user not only enjoys superior control and protection of the pump but the user display provides user information about the running state of the system.
By digitally monitoring the running current, the response time of the BiANCO NXT SPC is superior to traditional analogue overload methods.
NXT-SPC has 2 x passive dry contacts and is equipped with a RS485 modbus interface to connect to a BMS

  • Manual or Automatic operation
  • NXT-SPC has an audible alarm and a flashing light to indicate an alarm state. It supports an external alarm unit
  • Pump accumulated running time memory
  • Pump start / stop delay time setting
  • Last 5 error log

Protection Functions
• Over voltage
• Under voltage
• Dry Run (under current)
• Overload (over current)
• Pump stall
• Open phase protection
• Pump ‘Anti-seize’ function (96 hr default)
Control Input
• 4-20mA level or pressure transmitter

Cutaway & Materials


Brand

Bianco Pumps

Bianco Pumps is a brand of water pumps and pumping systems that specializes in providing solutions for various water-related applications. Product Range: Bianco Pumps offer a range of water pumps designed for different purposes. This could include submersible pumps, surface pumps, pressure pumps, and more. These pumps may be used for applications such as irrigation, domestic water supply, wastewater management, and industrial processes. Quality and Performance: Reputable pump manufacturers like Bianco Pumps typically focus on delivering high-quality products with reliable performance. This may involve using durable materials, precision engineering, and adherence to industry standards to ensure their pumps operate efficiently and effectively. Customer Support: ASC supports Bianco Pumps, and we provide customer support services to assist with pump selection, installation recommendation, maintenance, and troubleshooting. This can be crucial for customers who need guidance in choosing the right water pump for their specific needs or require assistance with any issues that may arise. Innovation: Leading pump manufacturers like Bianco Pumps continuously work on improving their products through research and development efforts. They may introduce innovative features and technologies to enhance pump performance, energy efficiency, and durability. Warranty and After-Sales Service: Bianco Pumps, like other reputable pump manufacturers, offer industry standard warranties on their products to provide customers with peace of mind. Additionally, they have an after-sales service network to handle repairs and maintenance. Most Bianco Pumps comes with a two year warranty. Environmental Considerations: Bianco Pumps are increasingly conscious of environmental concerns. They design and promote energy-efficient pumps to reduce electricity consumption and minimize the environmental impact of their products. Market Presence: The availability of Bianco Pumps products may vary by region, however ASC provides national delivery of the entire range of Bianco Pumps. This ensures we can find the right product and reach you efficiently. For the most up-to-date and specific information about Bianco Pumps, including their product offerings, innovations, and customer support services, contact ASC Water Tanks on (03) 8795 7715 or email at [email protected].

Product Documents
