BIA-1VMS3/11M – Vertical Multi-Stage 230V

Free Delivery Australia Wide

The Bianco NXT Summit Series vertical multi-stage pumps are an efficient solution for various fluid transfer applications – particularly in water supply, irrigation and industrial processes.

BIA-VMS3/11M – Vertical Multi-Stage 230V

$3,600.00

BIA-VMS3/11M – Vertical Multi-Stage 230V (Pump Only)

BIA-VMS3/11M

(18L 25Bar)

The Bianco NXT Summit Series Pressure Switch Kits are an all-in-one solution which offers a professional grade range of vertical multistage pumps, engineered for exceptional efficiency, durability and dependable performance. These versatile and cost-effective solutions are designed to meet a variety of needs with no unnecessary extras.

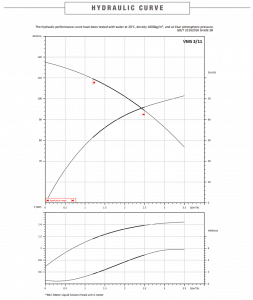

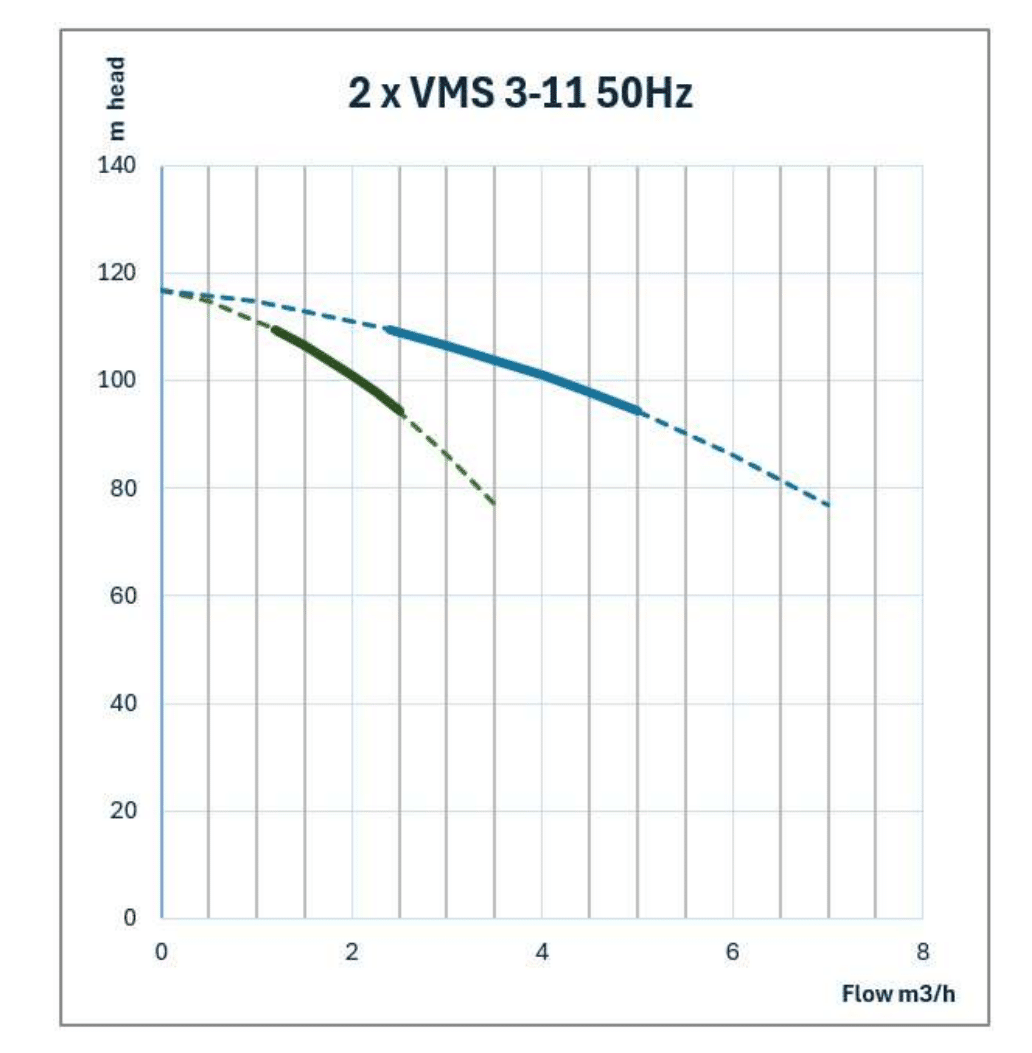

Pump Curve



Kit Includes

• VMS Pump
• Pressure Switch – 25 Bar
• Counter Flange (Available in DN25 to DN65)
• Fiber Gaskets to suit counter flanges
• Watermarked Spring Check Valve
• Manifold (304 Stainless Steel)
• 30 Bar Liquid Filled Pressure Gauge
• Galvanised Single Platform
• Ball Valve (304 Stainless Steel)
• Braided Hose 20 Bar 1.5m 1” BSPF
• Pressure Tank Included in
Scope of Supply

Technical Specifications

Brand Bianco NXT
Product Type Vertical Multi Stage – Single Phase
Amps 5.35
Flow Range Category a. 1 – 99 L/min
Flow Rate (L/min) 33
Hp 2
Kilo Watts 1.5
Max Flow (L/min) 33
Max Head (m) 117
Port Size Outlet DN25
Volts 240
Watts 1500
Max Pressure (bar) 25
Min Temp (degrees celsius) -15
Max Temp (degrees celsius) 70
Water Resistant IP55
Pack Weight (KG):
47

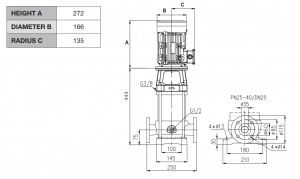

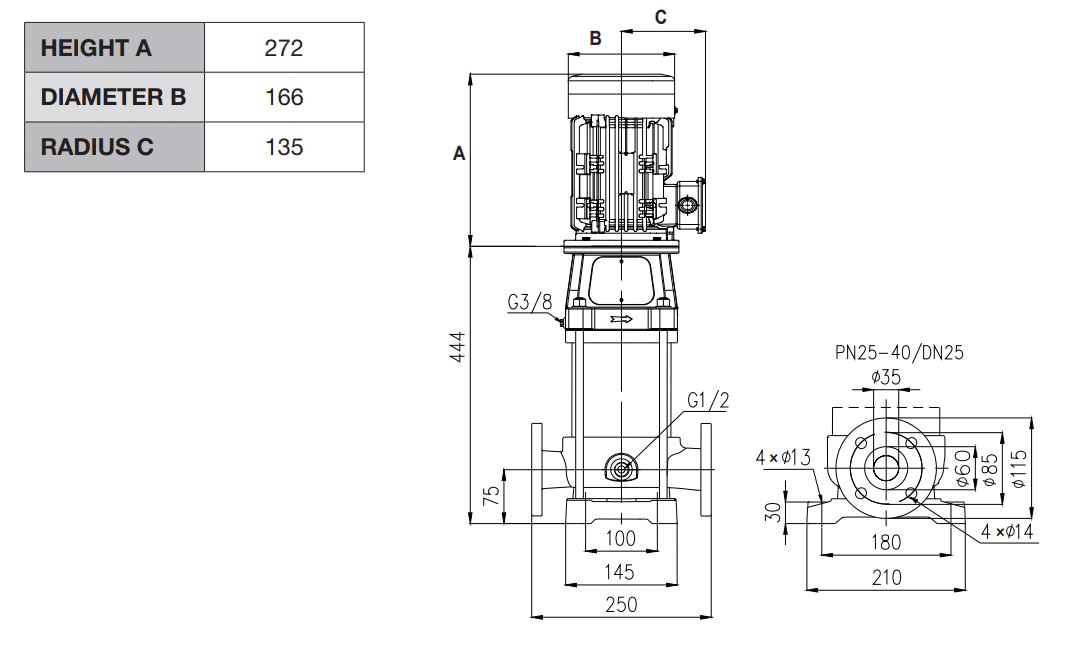

Dimensions

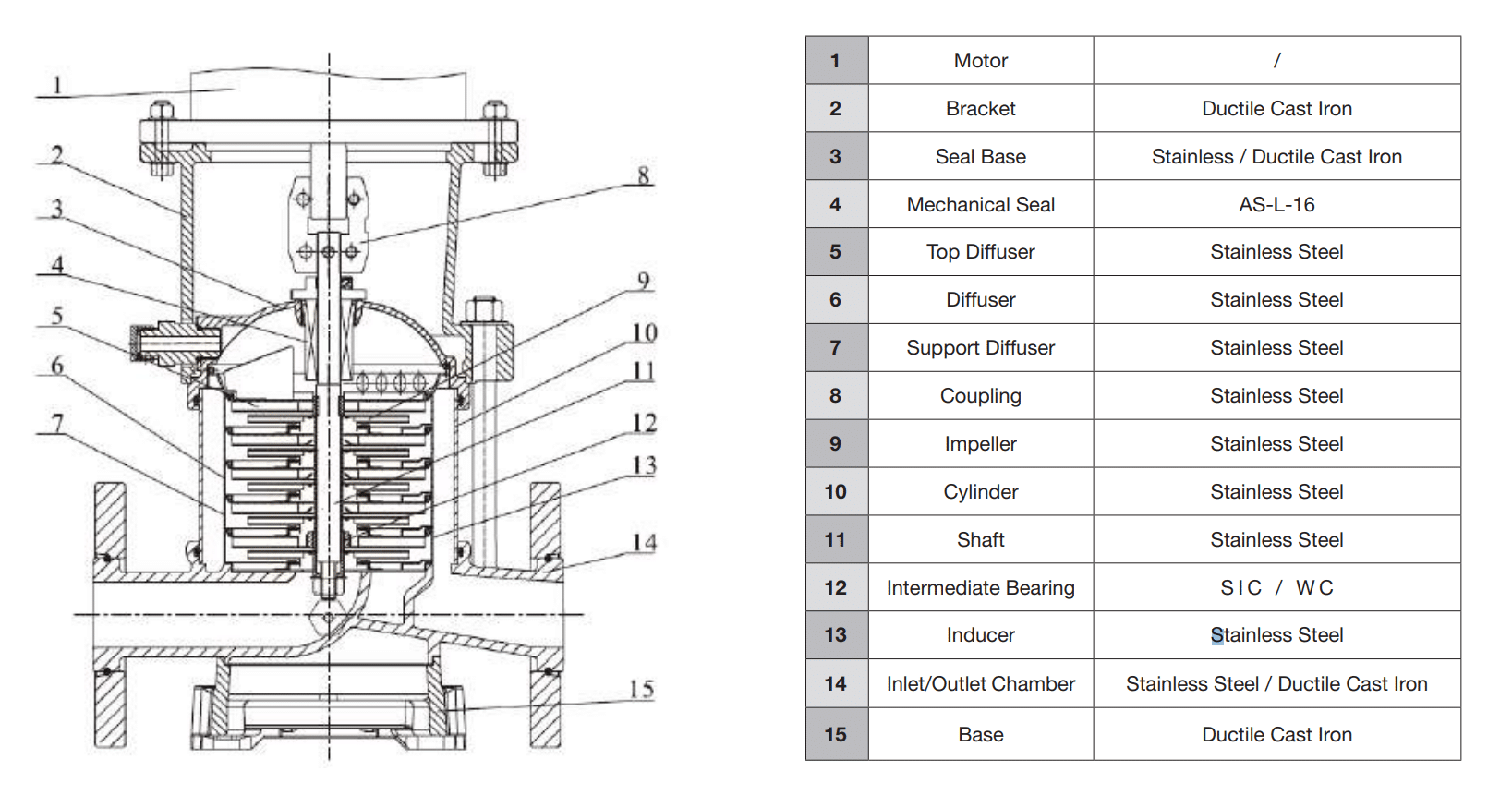

Cutaway & Materials

Brand

Bianco Pumps

Bianco Pumps is a brand of water pumps and pumping systems that specializes in providing solutions for various water-related applications. Product Range: Bianco Pumps offer a range of water pumps designed for different purposes. This could include submersible pumps, surface pumps, pressure pumps, and more. These pumps may be used for applications such as irrigation, domestic water supply, wastewater management, and industrial processes. Quality and Performance: Reputable pump manufacturers like Bianco Pumps typically focus on delivering high-quality products with reliable performance. This may involve using durable materials, precision engineering, and adherence to industry standards to ensure their pumps operate efficiently and effectively. Customer Support: ASC supports Bianco Pumps, and we provide customer support services to assist with pump selection, installation recommendation, maintenance, and troubleshooting. This can be crucial for customers who need guidance in choosing the right water pump for their specific needs or require assistance with any issues that may arise. Innovation: Leading pump manufacturers like Bianco Pumps continuously work on improving their products through research and development efforts. They may introduce innovative features and technologies to enhance pump performance, energy efficiency, and durability. Warranty and After-Sales Service: Bianco Pumps, like other reputable pump manufacturers, offer industry standard warranties on their products to provide customers with peace of mind. Additionally, they have an after-sales service network to handle repairs and maintenance. Most Bianco Pumps comes with a two year warranty. Environmental Considerations: Bianco Pumps are increasingly conscious of environmental concerns. They design and promote energy-efficient pumps to reduce electricity consumption and minimize the environmental impact of their products. Market Presence: The availability of Bianco Pumps products may vary by region, however ASC provides national delivery of the entire range of Bianco Pumps. This ensures we can find the right product and reach you efficiently. For the most up-to-date and specific information about Bianco Pumps, including their product offerings, innovations, and customer support services, contact ASC Water Tanks on (03) 8795 7715 or email at [email protected].
