Bianco BIA-DPC1-22 iCON Dual Pump Controller

Bianco BIA-DPC1-22 iCON Dual Pump Controller

$945.00

Trustpilot

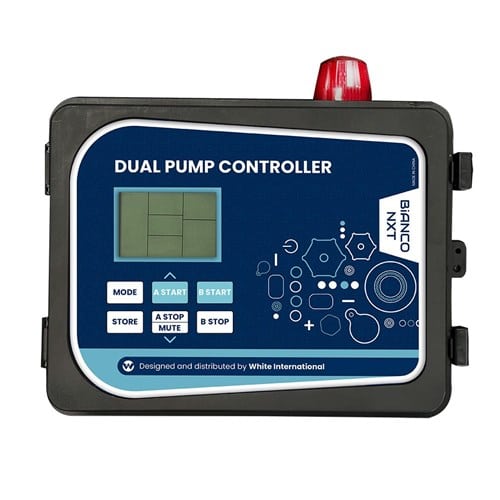

Bianco NXT-DPC1-22 Dual Pump Controller

The Bia nXt-DPC (Dual Pump Controller) is a module intended to control and protect a pair of single phase pumps. The user can select a control logic sequence to match their application and enjoy the benefits of superior control and protection for the pumps.

SKU: NXT-DPC1-22 Categories: , ,

Bianco BIA-DPC1-22 iCON Dual Pump Controller – 811199

The iCON range of intelligent controllers are suitable for installation in various industrial and domestic applications.

There are 3 primary control logic modes
• ‘Drainage’ where control concentrated at the source
• ‘Boosting’ which references pressure switching for control
• ‘Transfer’ which is a mix of source and destination control nXt-DPC has 2 x passive dry contacts and is equipped with a RS485 modbus interface to connect to a BMS

Protection functions can be set, enabled or disabled independently
• Over voltage
• Under voltage
• Dry Run (under current)
• Overload (over current)
• Pump stall
• Open phase protection
• Phase reversal (3 phase models only)
• Phase in-balance (input / output)
• Pump anti-seize (96hr default)
• Manual or Automatic operation
• nXt-DPC has an audible alarm and a flashing light to indicate an alarm state. It supports an external alarm unit
• Fault log
• Pump accumulated running time memory

Controllers are generally used in pumping applications where control of single or multiple pumps are required. Settings for drainage, pressure boosting and transfer applications are easily accomplished by function switches.

The iCON intelligent controller is user friendly with many features for controlling your pumps, protecting your pumps and also reporting of faults with live data and historical data retention. Control of your pumps is also possible from a slave controller which is included with each iCON intelligent controller as standard.

The iCON controller is supplied standard with RS485 communication interface for easy integration into your Building Management System.

The iCON controller enclosure has an ingress protection rating IP54 with an intelligent dynamic LCD display for pump running information and is suitable for installation both indoors and outdoors.

Automatic calibration of the iCON intelligent controller is easily completed to set your pump thermal overload by means of push buttons. Optional enclosure with an external door is available as required or requested.

Dual Pump Control Panel 240V 2.2kW | 2 Year Warranty
