Davey Microlene AS20DD Aquashield MAX 2.0
May be suitable for bore and surface water treatment – subject to water quality. This proven treatment system is pre-assembled and supplied in its own tamper-proof enclosure and is simple to install.
Our UV disinfection system units include a Davey pressure pump, Microlene 20μm (Poly Pleated) filtration for sediment reduction and 1μm (Poly Spun) filtration for cyst reduction and is followed by our trusted Davey Steriflo UV disinfection technology for water safety.
hese systems offer the convenience of water pressure, filtration and disinfection in a neat and tidy package. All models come preassembled in their own weatherproof enclosure.
NEW Systems
Two new systems cased in the ready to install plug and play black metal cabinets and also allow system add on modules such as UV Sensors, Solenoid Modules, 4-20mA and Remote Alarm Monitoring.
The first new system suited to connecting to tank water and controlled by our variable speed DynaDrive 90-11 with filtration and disinfection by our Microlene Centurion XtraSmart 3 Stage UV Water filtration and disinfection system.
The second new system using our RainBank2 mains/rainwater interconnection device as a means of using rainwater with the convenience of mains water back up. Partnered with the HS60-08 Multistage pump and Microlene Centurion XtraSmart 3 Stage UV Water Filtration and Disinfection System.
Original Systems
A choice of 4 models, two suited to connecting to tank water and controlled by our industry leading Torrium2 controller and two models using our Davey RainBank2 mains/rainwater interconnection device as a means of using rainwater with the convenience of mains water back up. These all cased in a plug and play plastic cover.
All System Applications
Pressure boosting and disinfection of rainwater (and bore, surface, creek water subject to water quality)
- Large home potable water supply
- School shower and toilet blocks
- Guest house potable water supply

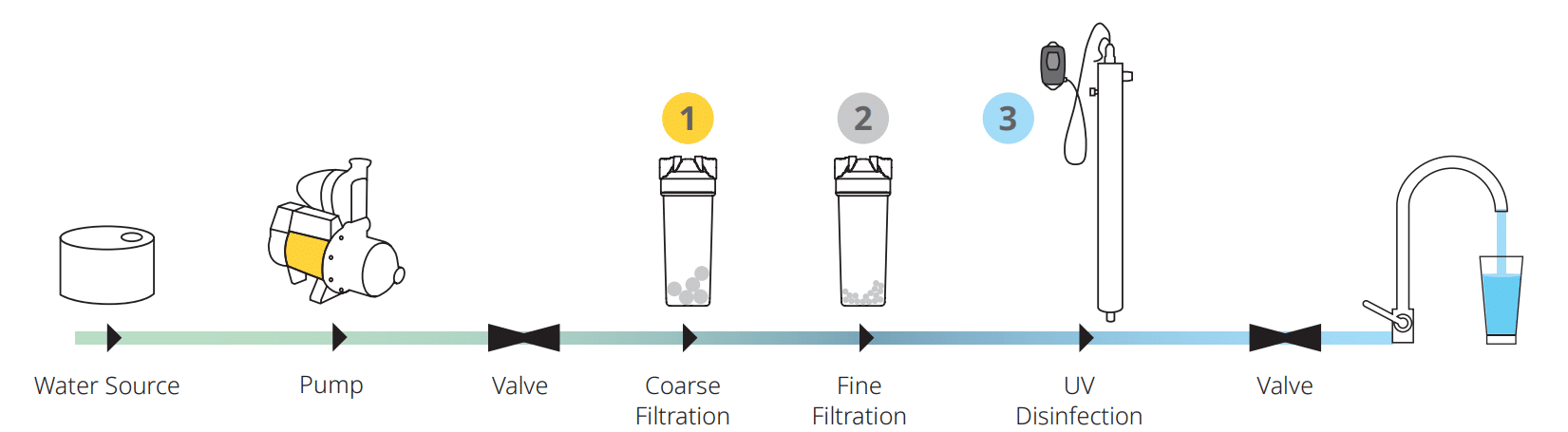

- Benefits of Microlene’s Aquashield Packaged UV Pressure System Davey’s proven 3 stage water disinfection & filtration process will ensure a safe and hygienic water supply*. Factory matched and tested package ensures the correct UV dosage is delivered with high reliability. Suitable for both tank only and mains water back-up installations, and for bore and surface water treatment – subject to water quality. Pump interlock detects lamp failure and locks pump out ensuring only disinfected water is delivered. Lamp count down timer with set limit of 10,000 hours (14 months) matches lamp life and ensures only disinfected water is delivered. Durable UV resistant cover allows for flexible, vandal resistant, exterior installation. RainBank2 controller option
• Provides seamless automatic mains water back-up and source indication
• Automatically reverts to mains water if power fails or pump is removed
DynaDrive controller option
• Variable speed intelligence that provides constant water pressure at the touch of a button
• Set and forget preferred water pressure settings. Reconfiguration not necessary, even after brownouts or blackouts.
High efficiency Microlene UV disinfection system with low pressure lamp and test tube quartz sleeve for easy cleaning and high performance. 20 micron pre-filtration for long cleaning intervals with dirt, rust, sediment and debris reduction. 1 micron filtration for parasitic cyst reduction and further sediment reduction to reduce ‘shadowing’ of bacteria and viruses.
Models in the range:
- Full treatment package including pump, UV and filtration for single water source
- NEW – AS20DD – up to 7 outlets turned on at the same time being treated at 56.8 lpm
- ASHS60-08T – up to 6 outlets turned on at the same time being treated at 50 lpm
ASHM60-10T – up to 8-9 outlets turned on at the same time being treated at 70 lpm
- Full treatment package including pump, UV and filtration offering medium pressure with Rainbank for dual water sources (tank and mains water)
- NEW AS20RB – up to 7 outlets turned on at the same time being treated at 56.8 lpm
- ASHS60-08RB – up to 6 outlets turned on at the same time being treated at 50 lpm
- ASHM60-10RB – up to 8-9 outlets turned on at the same time being treated at 70 lpm

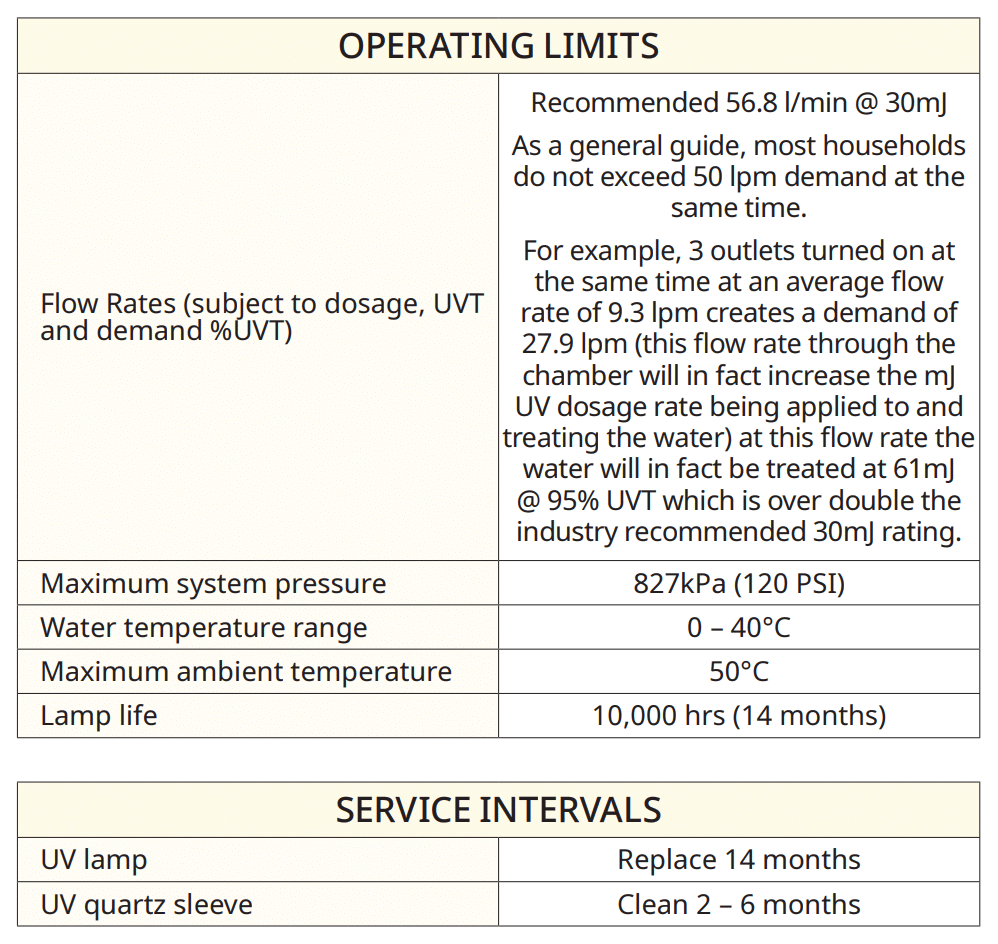

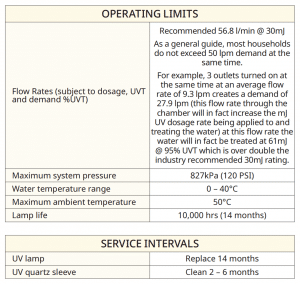

Please refer to the documentation for all features and full technical specifications.
Davey Microlene systems are also available as:
Pre-assembled, simple to install, wall mounted units: Microlene Centurion UV Water Filter Systems
UV disinfection units or un-plumbed kits with UV and filtration: Microlene UV Systems
