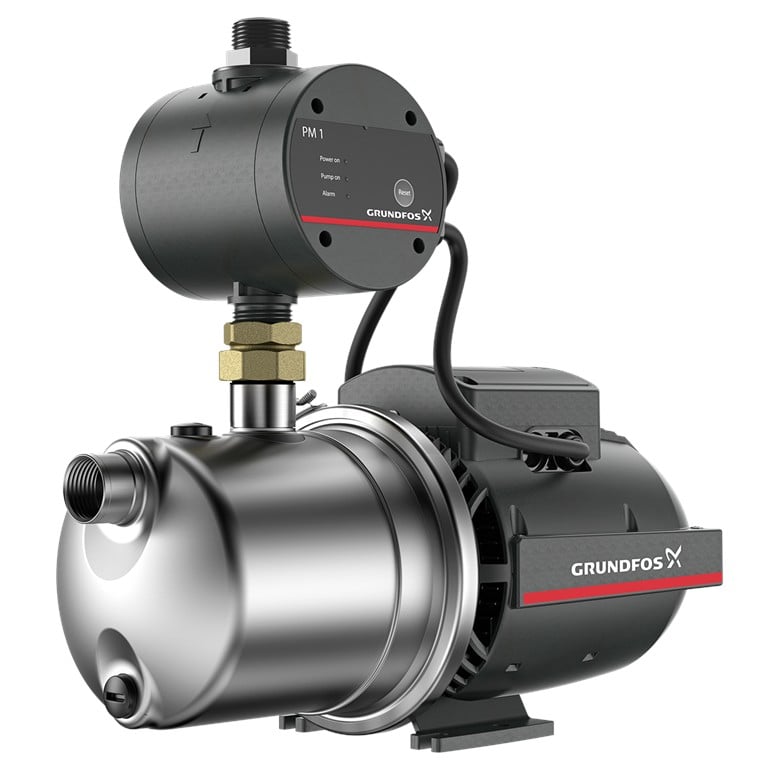

Grundfos JP 5-48 PM1 BBVP 99463901
Grundfos JP 5-48 PM1 booster consists of a Grundfos JP pump and a pressure manager. The JP 5-48 PM1 provides the comfort of constant water pressure with automatic start and stop matched to consumption by the intelligent pressure manager. The pressure manager starts the pump at 1.5 bar and the pump keeps running as long as there is flow.
The design is robust and built upon corrosion-free materials to ensure a long lifetime. This booster set ensures optimum self-priming properties, featuring a suction-lift up to 8 meters. The self-priming pump also ensures a stable operation as is it able to lift liquid from below the inlet level and can handle a mix of air and liquid until the pump reaches a fully-primed pumping condition.
The JP 5-48 PM1 incorporates dry running protection that automatically stops the pump in case of dry running. This means lower risk of pump damage and lower maintenance costs. The anti-cycling function will stop the pump in time in case of a minor leakage in the system, or if a tap has not been closed completely. When cycling occurs, the pump stops, and an alarm will be indicated. A non-return valve for backflow prevention is already integrated.
The JP pump has built-in thermal protection, which immediately stops the pump if it overheats. The motor is air cooled and equipped with oversized, sealed, greased-for-life ball bearings to ensure silent operation and minimum service.
Components: – Self-priming JP pump (see pump characteristics above)
– PM1 (1.5 bar) wired to the pump
– Automatic start/stop of the pump: > start pressure of 1.5 bar
– Dry running protection
– Anti-cycling protection
– Non-return valve integrated
– Cable 1.5 m with plug
Motor / power (p1): 1490W
Motor / power (p2): 1014W
Max. flow: 90T/min
Head: 48m
Inlet: 1″F / 25mm
Outlet:1″M / 25mm
Pressure: 460kPa
Impeller: Composite
Start pressure: PM1 – 1.5 bar
Ambient temperature: Max. 0°C to +40°C
Liquid temperature: Max. 0°C to +40°C
Suction lift: Max. 8 m
System pressure: Max. 6 bar
Supply voltage: 1 x 230 Volt 50 Hz, 1 x 115V 60Hz
Enclosure class: Suitable for covered installation (IP44)
Version with cable: Cable length 1.5 m with plug
Warranty on pump: 2 Years
Code:99463901
