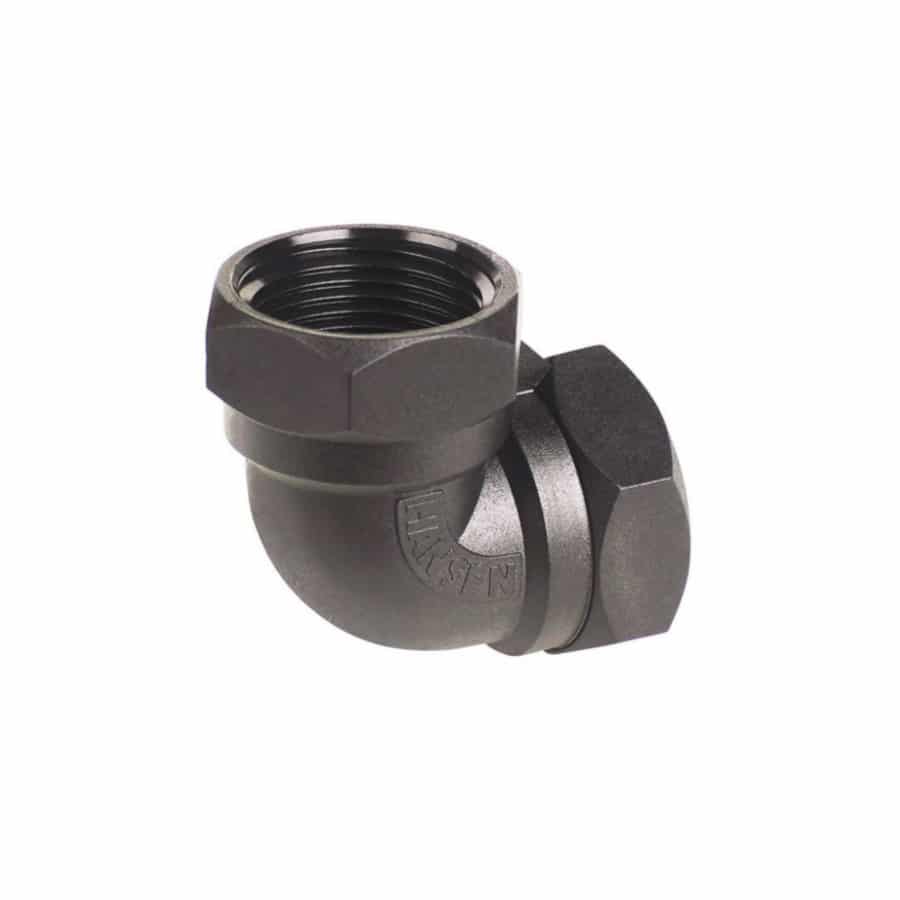

Hansen Female Threaded Elbow

Used to connect two Male Threads at a 90 degree angle. The Hansen Female Threaded Elbow is ideal for any situation where a reliable threaded connection is necessary.

Hansen Female Threaded Elbow

From: $2.40

SKU: HTE Categories: , ,

Hansen Female Threaded Elbow

SKU: HTE

Features

  • Manufactured in New Zealand using the best quality materials to withstand the harshest weather conditions.
  • Precision Heavy Duty Tapered Threads give a Strong Reliable Seal
  • Manufactured from a Raw Material Approved For Use With Potable (drinkable) Water
  • Manufactured from High Quality Glass Fibre Reinforced Nylon giving a Weather, Termite, Fungi & Bacteria Resistant
  • Common Applications Include Horticultural, Agricultural, Irrigation, Marine & Plumbing
  • Material strong enough to minimise potential cross threading
  • WRAS – Approval for use with potable (drinkable) water as they will not leach contaminants into the water.
  • Suitable for use above or below ground in varying operating pressures and temperatures
  • Strong, Lightweight and Compact
  • Available in a variety of thread combinations and connections.

Technical Info

Pressure & Flow Rate

Fitting sizes 16mm to 63mm Maximum Working Pressure; 16 Bar (1600 kPa, 235 psi) at 20 degrees C.

Fitting sizes 75mm to 100mm Maximum Working Pressure; 12.5 bar (1250 kPa, 182 psi) at 20 degrees C.

Used For

  • Medium Density Pipe
    • Blueline
      • SKU: 2500-(OD Pipe Size)PN12-5-(Coil Length)
      • e.g 2500-25PN12-5-100 (25mm = OD size, PN12.5 = Bar, 100 = Coil Length)
    • Redline
      • SKU: 360-(OD Pipe Size)PN(Bar Rate)-(Coil Length)
      • e.g 360-63PN9-100 (63mm = OD size, PN9 = Bar, 100 = Coil Length)
    • Greenline
      • SKU: 370-(OD Pipe Size)PN(Bar Rate)-(Coil Length)
      • e.g 370-32PN8-100 (32mm = OD size, PN8 = Bar, 100 = Coil Length)

Tips

  • Medium-density pipe is referred to by its outside diameter (OD)
  • Medium Density Fittings go overtop of MD Pipe
  • The pipe needs to be pushed past the o-ring in the MD fitting to seal
  • If the MD pipe is scratched or gouged, it may not create a seal on the o-ring and leak.
  • Use tools to tighten
Dimensions & Materials

HTE Fitting Measurements

Installation & Assembly

MD InstallationMD-Pipe-Fitting

Handy Tips for installing Hansen Easy Fit Compression Fittings

FAQ

Can I use MD Fittings in my house water supply?

Yes, Hansen Easy Fit MD Compression Fittings are potable (drinking) water approved.

Does this fitting carry Hansen Warranty?

Yes, all Hansen manufactured products carry our Hansen Warranty.

Can I use Hansen Easy Fit Fittings under driveways, paths and other solid foundations?
No, Hansen does not recommend the use of any Hansen Easy Fit Fittings under any driveways, paths or solid foundations.
How tight should I tighten my Easy Fit MD Compression fittings?
Up to 32mm, just tighten hand tight and all sizes above use a spanner to tighten another 1/2 to 1 turns past hand tight. Remember you already have a seal once the pipe is past the O-Ring, all the Nut is doing is compressing the Grip Ring onto the pipe to hold the pipe in place.

AS/NZS 4020:2018 TESTING OF PRODUCTS FOR USE IN CONTACT WITH DRINKING
WATER

Weight 2 kg
Dimensions 29 × 78 × 34 cm
Size

15mm HTE15, 20mm HTE20, 25mm HTE25, 32mm HTE32, 40mm HTE40, 50mm HTE50, 65mm HTE65, 80mm HTE80, 100mm HTE100

Brand

Hansen
