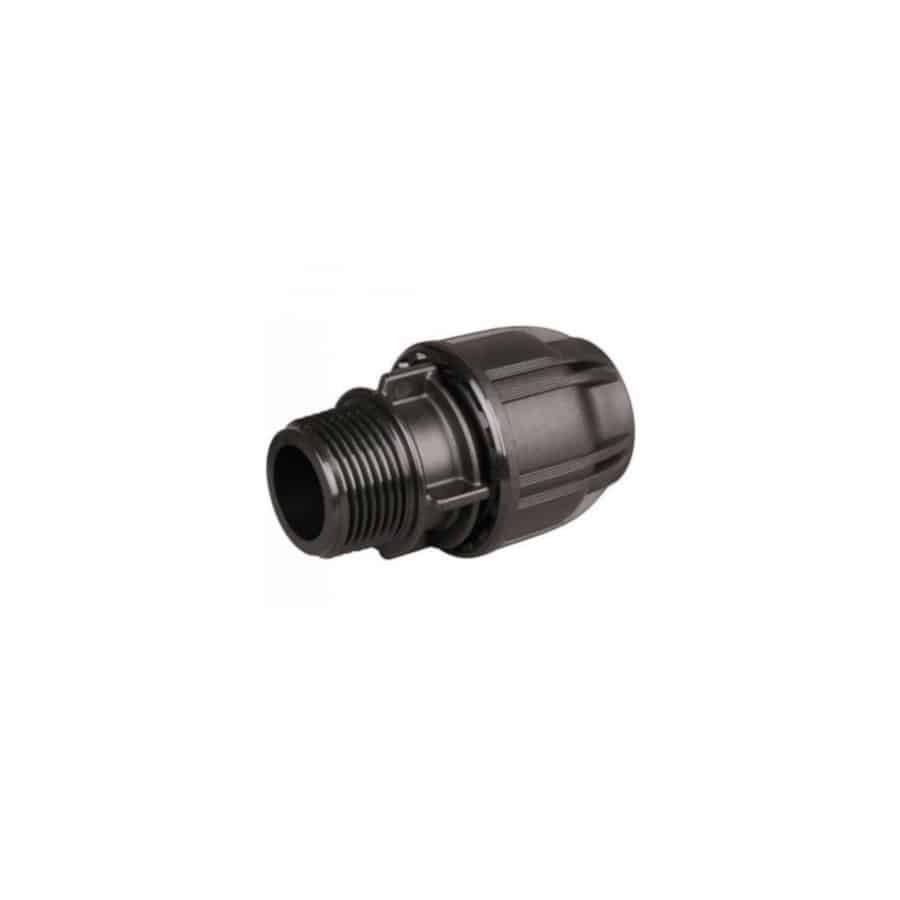

Hansen Metric Male Threaded Coupling

From: $4.15

Hansen Metric Male Threaded Coupling

SKU: HMDMC

Features

Manufactured in New Zealand using the best quality materials to withstand the harshest weather conditions.
Largest Medium Density fitting range made in New Zealand.
One piece fitting captive components when fitting assembled correctly.
Seal is pre-lubricated for easy pipe insertion and reliable leak free connections.
UV Stabilised high quality virgin polyethylene giving weather, termite, fungi and bacterial resistance.
High pressure rated.
Sleek, compact design for easy installation.
Easy grip nuts for rapid winding onto pipe.
Dependable, high quality threaded components.
Potable (drinkable) water approved.
Certificate of Conformity – Level 1 Evaluated to: AS/NZS 4129:2020 – Fittings for Polyethylene (PE) pipes for pressure applications. Certification No: WMKA21978.

Technical Info

Pressure & Flow Rate

Fitting sizes 16mm to 63mm Maximum Working Pressure; 16 Bar (1600 kPa, 235 psi) at 20 degrees C.

Fitting sizes 75mm to 100mm Maximum Working Pressure; 12.5 bar (1250 kPa, 182 psi) at 20 degrees C.

Dimensions & Materials

Installation & Assembly

MD Installation

Handy Tips for installing Hansen Easy Fit Compression Fittings

https://www.hansenproducts.com.au/video/md-compression-fitting-handy-tips

FAQ

Can I use MD Fittings in my house water supply?

Yes, Hansen Easy Fit MD Compression Fittings are potable (drinking) water approved.

Does this fitting carry Hansen Warranty?

Yes, all Hansen manufactured products carry our Hansen Warranty.

Can I use Hansen Easy Fit Fittings under driveways, paths and other solid foundations?

No, Hansen does not recommend the use of any Hansen Easy Fit Fittings under any driveways, paths or solid foundations.

How tight should I tighten my Easy Fit MD Compression fittings?

Up to 32mm, just tighten hand tight and all sizes above use a spanner to tighten another 1/2 to 1 turns past hand tight. Remember you already have a seal once the pipe is past the O-Ring, all the Nut is doing is compressing the Grip Ring onto the pipe to hold the pipe in place.

https://www.youtube.com/watch?v=n2pJYtbQIPs

AS/NZS 4020:2018 TESTING OF PRODUCTS FOR USE IN CONTACT WITH DRINKING
WATER

Weight	2 kg
Dimensions	29 × 78 × 34 cm
Size	20mm X 1/2" BSP HMDMC2015, 20mm X 3/4" HMDMC2020, 25mm X 3/4" HMDMC2520, 25mm X 1" HMDMC2525, 32mm X 1/2" HMDMC3215, 32mm X 3/4" HMDMC3220, 32mm X 1" HMDMC3225, 32mm X 1 1/4" HMDMC3232, 32mm X 1 1/2" HMDMC3240, 40mm X 1" HMDMC4025, 40mm X 1 1/4" HMDMC4032, 40mm X 1 1/2" HMDMC4040, 40mm X 2" HMDMC4050, 50mm X 1 1/4" HMDMC5032, 50mm X 1 1/2" HMDMC5040, 50mm X 2" HMDMC5050, 63mm X 1 1/2" HMDMC6340, 63mm X 2" HMDMC6350, 63mm X 2 1/2" HMDMC6363, 75mm X 2" HMDMC7550, 75mm X 2 1/2" HMDMC7563, 90mm X 2" HMDMC9050, 90mm X 2 1/2" HMDMC9063, 90mm X 3" HMDMC9075, 90mm X 4" HMDMC90100, 110mm X 2" HMDMC11050, 110mm X 3" HMDMC11075, 110mm X 4" HMDMC110100, 63mm X 1 1/4" HMDMC6332
