GRUNDFOS SCALA 1 & 2
We have supplied Scala 1 & 2 pumps nationwide across Australia in Melbourne, VIC, NSW , SA, ACT & QLD for many years. Our closeknit relationship ensures your delivery is smooth and seamless, making you a very happy customer.
“We pioneer solutions to the world’s water and climate challenges and improve quality of life for people.
Poul Due Jensen founded the company in 1945 from his basement in Bjerringbro, Denmark. The first pump made was a water pump. Through the decades, we have sharpened our skills, and to this day, we take pride in moving water to where it should be. Using as little energy as possible when doing it.
We provide quality solutions and proven performance for managing water in and around your home, garden, commercial building, industrial facility or farm, whether it’s for water supply, hot water and heating, drainage or wastewater.”
Bluetooth Connectivity
Set-up, customise, control
and troubleshoot your SCALA1
using the Bluetooth®
connected
Grundfos GO App.
Dry-run Protection
The pump will be stopped if no
water is detected at the inlet,
preventing internal damage
and protecting your motor
from damage
Auto Start/Stop
The pump will automatically
start and stop when outlets
(eg: taps) are turned on or off.
Anti-Cycling Protection
The pump will be stopped and
alarm activated if it repeatedly
turns on and off over a short
period of time (called ‘cycling’),
which could indicate a leaking
pipe or dripping tap.
SCALA1
For water sources below pump level
Designed with good suction lift capabilities, the SCALA1 is able to draw water up to 8 metres vertically below the level of the pump
Quiet operation
Super quiet operation that won’t disturb your family or neighbours
All-in-one construction
Tough, weather resistant outer casing houses the pump, motor and the controller
Free Delivery
Free Delivery for the SCALA range Australia wide.
Motor / power (P2): 600W
Max. flow: 85T/min
Head: 37m
Inlet: 1″M / 25mm
Outlet:1″M / 25mm
Pressure: 370kPa
Impeller: Composite
Warranty on pump: 2 Years
Ambient Temperature: 0°C to +55°C
Liquid Temperature: 0°C to +45°C
System Pressure: Max. 8 bar
Sound Pressure: Max. 55dB
Power Supply Voltage: 230V 50Hz
Power Supply Cable: 1.5m with plug
Enclosure Class: Suitable for outdoor installation (IPX4D)
Approvals and Markings: AS/NZS 4020, C-Tick Compliance
Code: 99530419
Motor / power (P2): 1000W
Max. flow: 115T/min
Head: 55m
Inlet: 1″M / 25mm
Outlet:1″M / 25mm
Pressure: 550kPa
Impeller: Composite
Warranty on pump: 2 Years
Ambient Temperature: 0°C to +55°C
Liquid Temperature: 0°C to +45°C
System Pressure: Max. 8 bar
Sound Pressure: Max. 55dB
Power Supply Voltage: 230V 50Hz
Power Supply Cable: 1.5m with plug
Enclosure Class: Suitable for outdoor installation (IPX4D)
Approvals and Markings: AS/NZS 4020, C-Tick Compliance
Code:99530422

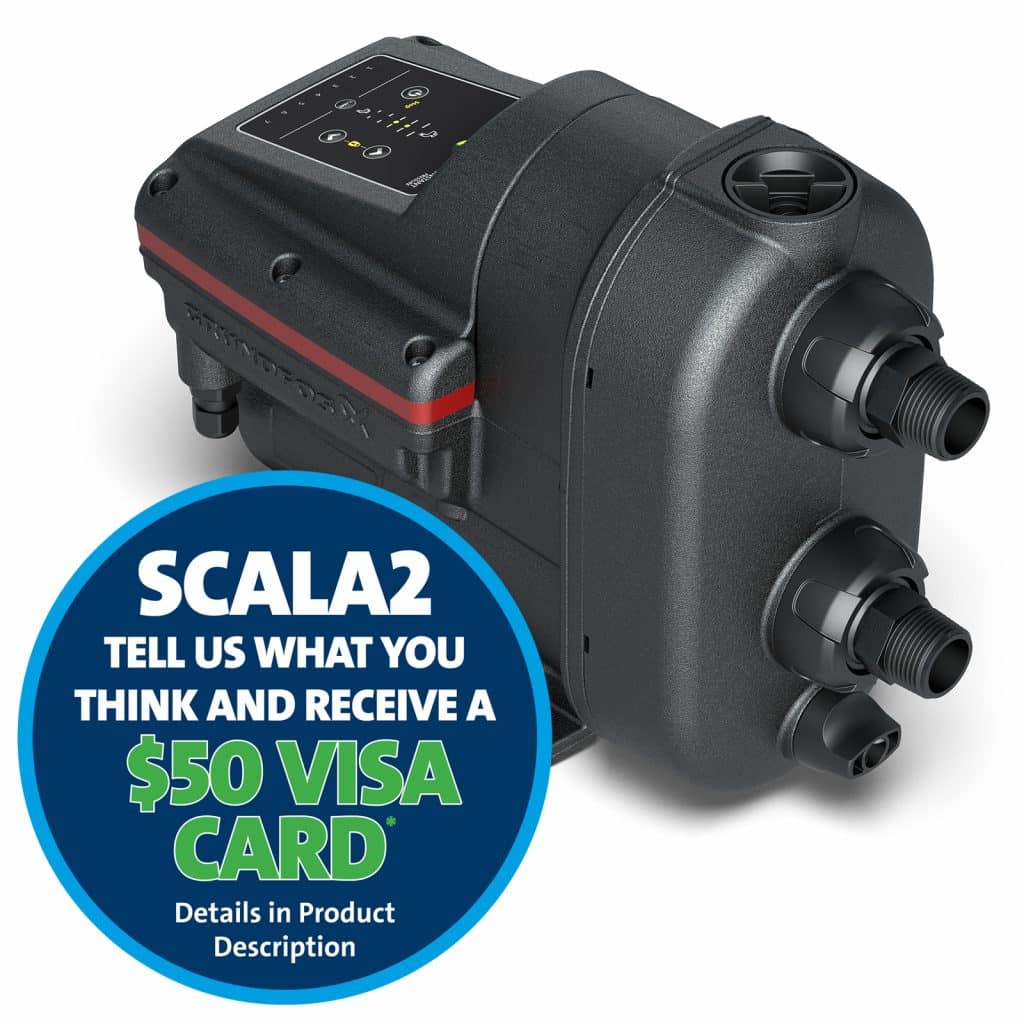

SCALA2
Variable Speed
The pump adjusts performance according to water demand, providing constant pressure to all taps regardless of variations in demand or inlet pressure.
Self-Priming
Ideal for pressurising water from above or below ground water sources with a suction lift of up to 8 metres and self-priming up to 4 metres.
Energy Efficient
The pump features a permanent magnet motor to help reduce power consumption while the frequency controller matches the power consumption with the required water output, also helping to conserve energy and reduce energy bills.
Motor / power (P1): 550W
Max. flow: 78T/min
Head: 45m
Inlet: 1″M / 25mm
Outlet:1″M / 25mm
Pressure: 470kPa
Impeller: Composite
Start pressure: PM1 – 1.5 bar
Warranty on pump: 2
Code: 98562866
