ASC Sump Pump D18VAMAG Vortex Vertical Float Pump

$275.00

ASC D18VAMAG Vortex Drainage Sump Pump

The ASC D18VAMAG Vortex pump is the perfect companion for builders, plumbers and civil earth workers. The pump comes with a stainless steel handle and a 10m power cable to make it easy to setup in small pits and dewatering applications. This pump has been designed for uses in tight spaces, where a regular float won’t work. ASC is bringing high quality, world class pumps to the Australian market designed for Australian conditions.

ASC D18VAMAG Vortex Drainage Pump Pump Quick Data

Free Delivery Australia Wide

Availability: In stock

Prevents the water in the line returning back into the pit.

None 40mm Brass Non return Flap Valve +$35.00
SKU: ASC D18VAMAG Categories: , , , , , , GTIN: 9359880000121

ASC D18VAMAG Vortex Drainage Sump Pump

The ASC D18VAMAG is a vertical float sump pump designed for use in confined spaces, where a normal float may get stuck. It can be used in grey water pumping, sump emptying, septic effluent pumping, water transfer and the pumping of light industrial and factory waste systems. The open nature of the semi vortex impeller allows for suspended solids of up to 15mm and means the pump is less susceptible to blockages.

The ASC D18VAMAG is characterised by a cast iron body and impeller for durability and the heavy handed nature of builders, plumbers and civil earth workers who throw these pumps in and out of utes and into pits for pumping of dirty water. The ASC D18VAMAG sump pump has a carry handle, 10m H07RNF power cable, an automatic float switch and pumps to heads of 6.7m. With a flow rate of up to 135LT/min, trust ASC to deliver the drainage pump solution for your project.

Pump Characteristics:

  • Cast iron pump body and impeller for durability
  • Fully automatic operation with vertical float arm.
  • Dual mechanical seal – carbon/ceramic
  • Handy carry handle
  • Universal hose tail adaptor
  • 240V single phase motor with in-built auto reset thermal overload.
  • 10m H07RNF power cable.
  • Dewatering of cellars, etc.
  • Pumping clean or slightly dirty water
  • Flows to 135 L/min
  • Heads to 6.7m
  • Pump starts at 300mm and stops at 120mm

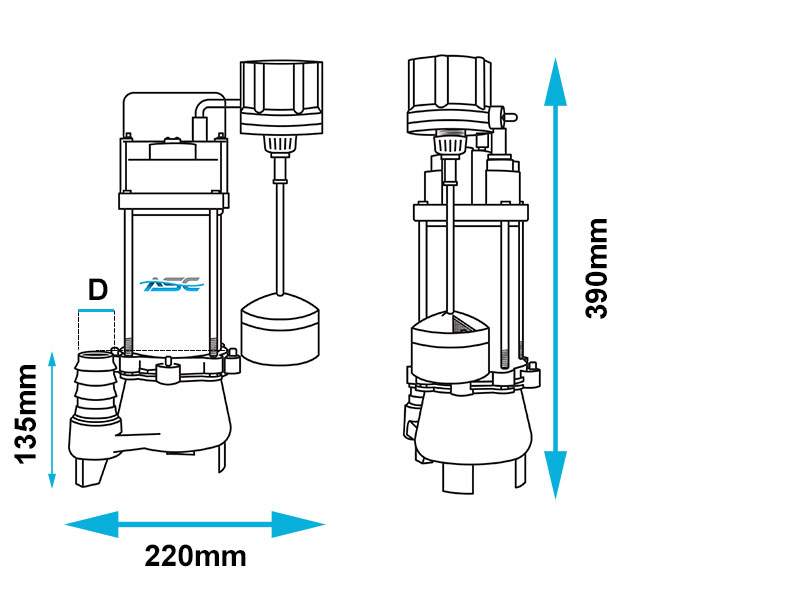

ASC D18VAMAG Vortex Drainage Sump Pump Dimensions

 Applications:
  • Suitable for grey water pumping, sump emptying, septic effluent pumping, water transfer and pumping of light industrial waste

ASC D18VAMAG Vortex Drainage Pump Pump Quick Data

Technical Specifications
Brand ASC
Product Type Vortex Drainage Pump
Suitable For Dirty water with Soft Solids
Bar 0.67 Bar
Flow Rate (L/min) 135L/min
Hp  0.24 Hp
Kilo Watts 0.18 kW
Max Head (m) 6.7m
Port Size Outlet 1½ ” BSPF (comes with hose tail adapter)
Powered Electric
Volts 240 V
Pump Start Water Height 300mm
Pump Stop Water Height 120mm
Warranty 2 Years
Pump Size (mm) 180w x 180L x 375H (mm)

ASC D18VA Vortex Drainage Sump Pump Performance

Pump Warranty Options: ASC Water Tanks offers a two year warranty for it’s drainage pump range. Need more information. Click here for more information on our pump installation guide and pump warranty.

Why Choose ASC Water Pumps?

Choose a vertical or standard Float


ASC Water Pumps offers two float options in our D18 series. Choose between a vertical float in tight pits and a normal ball float. The D18VMAG has been designed and made from requests builders and plumbers have made asking for a better float solution in small pits.

Cast Iron Body


Solid construction with a cast iron body and feet. The motor body is made of a stainless steel casing and also comes with an ergonomic stainless steel carry handle for easy access to carry the pump in and out of the ute.

10m H07RNF Lead


The ASC sump drainage pumps come with an Australian 3 pin power plug. The 10m H07RNF lead is designed to sit in water for extended life and is oil resistant and the motor has automatic thermal overload resetting to protect your pump.

Engineered Product


Our range of pumps are not a cookie cutter product. We have sat down with engineers, pump experts, designers and the factory to bring you our best product. We believe our pumps compare to the best in the market including Davey, Grundfos and Onga.

Certified Water Pumps


All ASC Water Pumps are CE (C-Tick) compliant and approved. This ensure you buy an electrically safe product that has passed the strictest of Australian an European Standards.


Weight 10 kg
Dimensions 22 × 20 × 43 cm
Product Type

Vortex Pump

Bar

0.67 Bar

Amps

1.5 Amps

Flow Rate

Hp

0.24 Hp

Kilo Watts

0.18 kW

Head (max)

6.7m

Port Size Outlet

32mm / 1¼" BSP Female

Powered

Electric

Volts

240 V / 50 Hertz

Pack Weight

10.30 KG

Operation

,

Pressure

6.7m

Suitable For

Building Sites, Drainage, Grey Water, Septic Effluent, Sump Emptying, Well Water

Warranty

2 Years

Brand

ASC
