BIA-1VMS3/8M-MP – VMS Manual Pressure Switch Kit

The Bianco NXT Summit Series vertical multi-stage pumps are an efficient solution for various fluid transfer applications – particularly in water supply, irrigation and industrial processes.

Free Delivery Australia Wide

BIA-1VMS3/8M-MP – VMS Manual Pressure Switch Kit

$3,400.00

BIA-1VMS3/8M-MP – VMS Manual Pressure Switch Kit

BIA-1VMS3/8M-MP

The Bianco NXT Summit Series Pressure Switch Kits are an all-in-one solution which offers a professional grade range of vertical multistage pumps, engineered for exceptional efficiency, durability and dependable performance. These versatile and cost-effective solutions are designed to meet a variety of needs with no unnecessary extras.

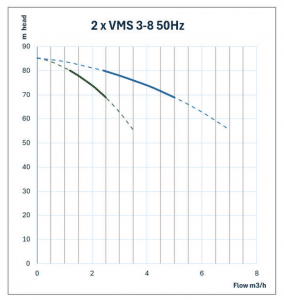

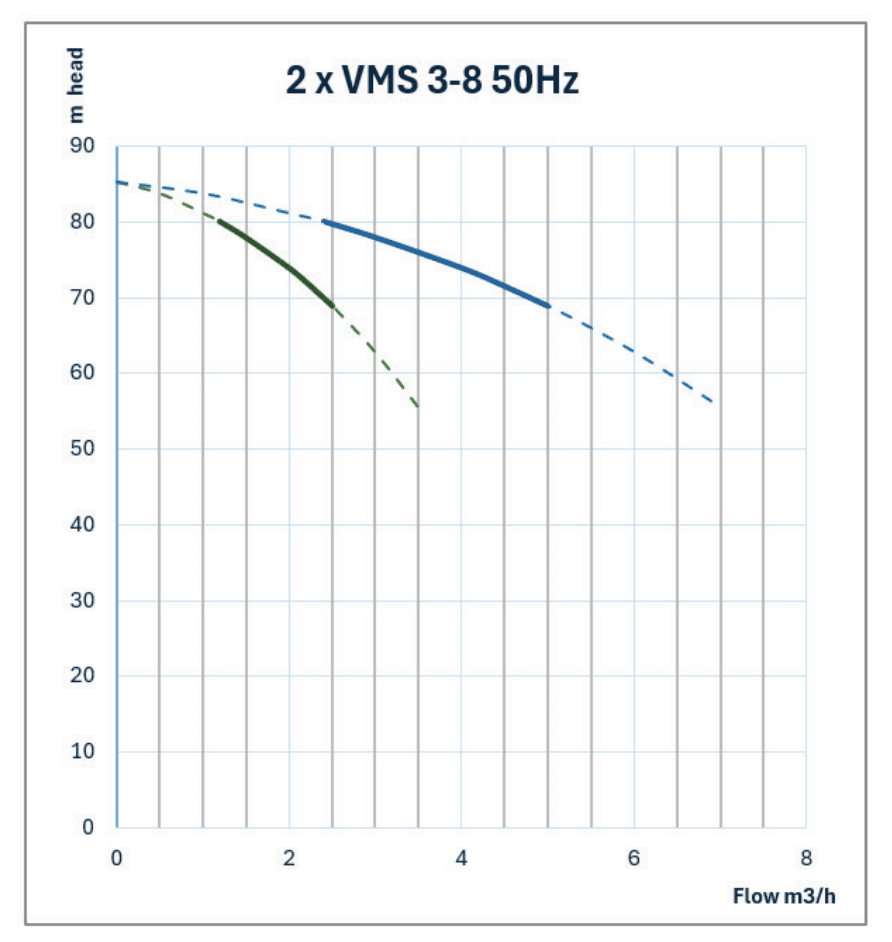

Pump Curve

Kit Includes

• VMS Pump
• Pressure Switch – 25 Bar
• Counter Flange (Available in DN25 to DN65)
• Fiber Gaskets to suit counter flanges
• Watermarked Spring Check Valve
• Manifold (304 Stainless Steel)
• 30 Bar Liquid Filled Pressure Gauge
• Galvanised Single Platform
• Ball Valve (304 Stainless Steel)
• Braided Hose 20 Bar 1.5m 1” BSPF
• Pressure Tank Included in Scope of Supply

Technical Specifications

RATED FLOW [M3/H] 2m3/hr
MAX FLOW 3.5m3/hr
MAX HEAD 85.3M
OPTIMUM OPERATING RANGE
1.2m3/hr @ 79.9m 31.7% eff
2.5m3/hr @ 68.9m 46.2% eff
WORKING AIR TEMP 0°C – 40°C
LIQUID TEMPERATURE -15°C – 120°C
HIGHEST EFFICIANCY 51.1%
MAXIMUM PUMP PRESSURE 33 bar
NET WEIGHT (KG) 25kg
RATED VOLTAGE/CURRENT Single phase 230V +10% – 6%
RATED CURRENT 3.99 amps
POWER (KW) 1.1kW 2 pole
CAPACITOR 25uF
MOTOR IP RATING IP55
MOTOR INSULATION Class F
MOTOR EFFICIENCY STD I.E.3
MOTOR EFFICIENCY 82.7%
COS ø 0.83
MECHANICAL SEAL AS-L-12
OUTLET DIN FLANGE DN25

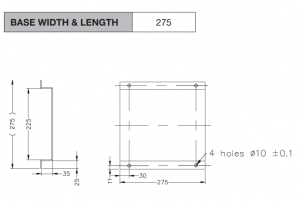

Dimensions

Cutaway & Materials
