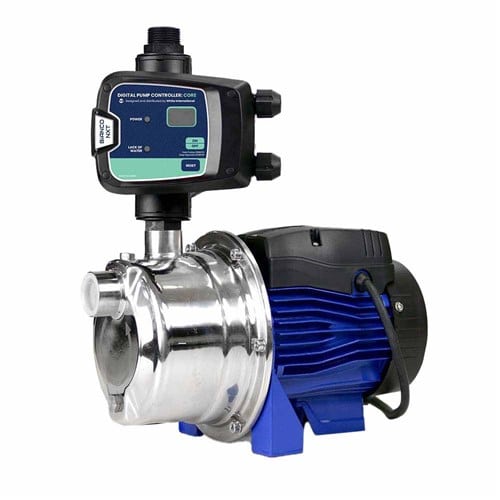

Bianco BIA-INOX90CORE Stainless Steel Surface Mount Pump with nXt Controller
PRODUCT DETAILS
The NXT BiANCO INOX90 is a stainless steel jet pump with an internal venturi which enables water to be drawn from below ground level. Equally comfortable pumping from a tank, boosting low pressure water supply or working in conjunction with a rainwater changeover device. Supplied with a pre-wired NXT CORE pressure controller, connect the inlet and outlet pipes, fill the pump with water and you’re ready to go.
APPLICATIONS
- Household water supply – small dwellings
- Light garden irrigation
- Water transfer
- Washing systems
- Pressure boosting
Features
- Pump controller pre-set to start once the pressure falls below 2.2 bar. Button press user adjustment of start pressure
- Corrosion resistant pump body, diffuser and impeller to ensure pump durability
- High quality bearings and mechanical shaft seal
- 240V single phase TEFC motor with in-built auto reset thermal overload to prevent the pump from overheating
- Automatic pump starting, stopping and restart after power loss and/or water loss
- Inbuilt dry-run protection

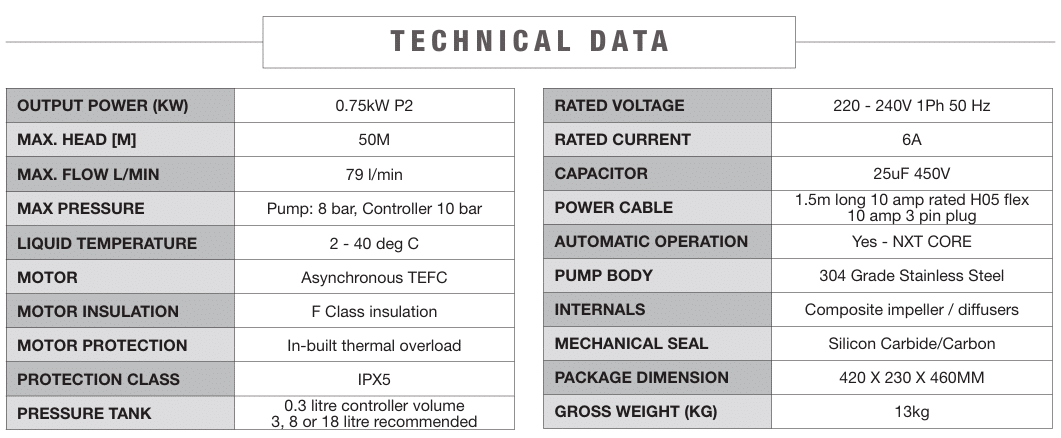

Technical Specifications
| Brand | Bianco Pumpz |
| Product Type | Pressure System |
| Suitable For | Clean Water |
| Bar | 4.9 |
| Approval | Drinking Water Approval |
| Amps | 6 |
| Flow Range Category | a. 0 – 99 L/min |
| Flow Rate (L/min) | 78 |
| Float | No |
| Hp | 1 |
| kPa | 489 |
| Kilo Watts | 0.9 |
| Max Flow (L/min) | 78 |
| Head Range Category | b. 40 – 59 m |
| Max Head (m) | 50 |
| Port Size Inlet | 1″ BSPF inlet |
| Port Size Outlet | 1″ BSPM outlet |
| Powered | Electric |
| Taps | 7 |
| Volts | 240 |
| Warranty (months) | 24 |
| Watts | 750 |
This pump includes the Bianco iCON nXt series of pump controller.
The nXt Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.
Controller Features
Digital display gives you a real time indication of system pressure Anti-cycle Protection Dry run protection with auto restart function that tests for water availability every 24hrs Anti-seize function if pump has not operated for last 24 hours Controller automatically restarts pump after a power failure
Easy assembly and removal using push-n-connect fitting with U clip Complies to AS/NZ 4020 drinking water standard Over pressure protection turns pump off when 10 bar is reached Overload protection
