BIA-MULTI103NXTP - Horizontal Multi Stage Pump with nXt PRO Pump Controller 49m 2.2kW 240V

Bianco MULTI103NXTP Pro Pressure Pump

$950.00

Product Documents

None 1" to 1¼" Union Set for nXt Controllers 808431 +$30.00 0.3L pressure tank to suit nXt Pro & nXt Pro Plus models 808432 +$30.00
None 25mm Brass Y-Strainer +$25.00 32mm Brass Y-Strainer +$35.00 40mm Brass Y-Strainer +$50.00 50mm Brass Y-Strainer +$75.00
SKU: MULTI103NXTP Categories: , , GTIN: 9312198862959

Bianco MULTI103NXTP Pro Horizontal Multistage Pressure Pump 808402

The pump is a horizontal multistage pressure system pump supplied wired and ready to install. Used especially for supplying water to domestic installations.

Technical Specifications
Brand Bianco Pumpz
Product Type Pressure System
Suitable For Clean Water
Bar 4.8
Approval Drinking Water Approval
Amps 10.8
Flow Range Category c. 200 – 299 L/min
Flow Rate (L/min) 233
Float No
Hp 3
kPa 480
Kilo Watts 2.2
Max Flow (L/min) 233
Head Range Category b. 40 – 59 m
Max Head (m) 49
Port Size Inlet 1 1/2″ BSPF inlet
Port Size Outlet 1 1/4″ BSPM outlet
Powered Electric
Taps 23
Volts 240
Warranty (months) 24
Watts 2200

Pack Weight (KG): 23.30

The pump is characterised by:

  • Automatic electronic pump control fitted and wired.
  • Automatic electronic control provides run dry protection and constant pressure at low flows. Automatic electronic control has auto restart and in-built check valve.
  •  Corrosion resistant pump body, diffuser and impeller.
  •  Mechanical shaft seal.
  •  Stainless Steel barrel union
  • Comes complete with plug and play leads.

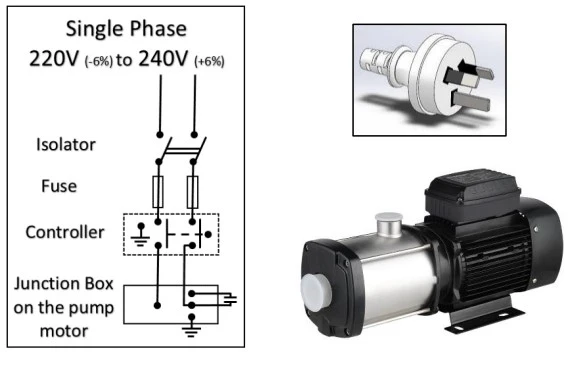

  • 240V single phase TEFC motor with in-built auto reset thermal overload.



Controller

This pump includes the Bianco iCON nXt PRO series of pump controller.

The nXt PRO Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.

Controller Features
  • Digital display gives you a real time indication of system pressure
  • Anti-cycle Protection
  • Dry run protection with auto restart function that tests for water availability every 24hrs
  • Anti-seize function if pump has not operated for last 24 hours
  • Controller automatically restarts pump after a power failure
  • Easy assembly and removal using push-n-connect fitting with U clip
  • Complies to AS/NZ 4020 drinking water standard
  • Over pressure protection turns pump off when 10 bar is reached
  • Overload protection
Controller Modes

Two operational modes:

  • Mode One – Adjustable cut in pressure setting.
    • Controller stops pump when flow drops.
  • Mode Two – Adjustable cut in and cut out pressure.
    • Shut down governed by pressure. Requires pressure tank.
Controller Flow Curve

nXt PRO Controller Data
Function ON/OFF + Config
Modes 2
Size 2.2Kw
Rated Voltage 220-240V AC
Max Amps 16
Rated Power 2200w
Rating IP65
Union Size 1″
Start Pressure Adjustable
Stop Pressure Adjustable
Max Pressure 10 bar (145PSI)
Max Liquid Temp 40°C
Cable to Pump Plug and Play
Flylead for Pump When sold as control only
Power Cable 10AMP
Communication –
Accessories (Sold Separately) 15 AMP Cable
1 ¼” Union Kit

Bianco ICON nXt PRO Pump Controller



Weight 26 kg
Dimensions 51 × 28 × 46 cm

Brand

Bianco Pumps

Bianco Pumps is a brand of water pumps and pumping systems that specializes in providing solutions for various water-related applications. Product Range: Bianco Pumps offer a range of water pumps designed for different purposes. This could include submersible pumps, surface pumps, pressure pumps, and more. These pumps may be used for applications such as irrigation, domestic water supply, wastewater management, and industrial processes. Quality and Performance: Reputable pump manufacturers like Bianco Pumps typically focus on delivering high-quality products with reliable performance. This may involve using durable materials, precision engineering, and adherence to industry standards to ensure their pumps operate efficiently and effectively. Customer Support: ASC supports Bianco Pumps, and we provide customer support services to assist with pump selection, installation recommendation, maintenance, and troubleshooting. This can be crucial for customers who need guidance in choosing the right water pump for their specific needs or require assistance with any issues that may arise. Innovation: Leading pump manufacturers like Bianco Pumps continuously work on improving their products through research and development efforts. They may introduce innovative features and technologies to enhance pump performance, energy efficiency, and durability. Warranty and After-Sales Service: Bianco Pumps, like other reputable pump manufacturers, offer industry standard warranties on their products to provide customers with peace of mind. Additionally, they have an after-sales service network to handle repairs and maintenance. Most Bianco Pumps comes with a two year warranty. Environmental Considerations: Bianco Pumps are increasingly conscious of environmental concerns. They design and promote energy-efficient pumps to reduce electricity consumption and minimize the environmental impact of their products. Market Presence: The availability of Bianco Pumps products may vary by region, however ASC provides national delivery of the entire range of Bianco Pumps. This ensures we can find the right product and reach you efficiently. For the most up-to-date and specific information about Bianco Pumps, including their product offerings, innovations, and customer support services, contact ASC Water Tanks on (03) 8795 7715 or email at [email protected].
