Davey DT37KZN Dewatering Sump Pump 415V
SKU: DT37KZN
WHY CHOOSE THE DAVEY KZN Sludge/Slurry sump pump?
Corrosion resistant 410 stainless steel shaft and stainless steel shaft sleeve
• Long service life
• Impact resistant and long lasting
• Easily replaceable shaft sleeves save on shaft wear Multivane, semi-open, wear resistant, high chrome impeller
• Ability to handle abrasive solid concentrations up to 70% by weight
Pumps have a heavy duty high chrome agitator
• Keeps the flow chamber and impeller clear by causing the solids to move in suspension, preventing the pump from clogging
Double silicon carbide mechanical seals
• Abrasion resistant
• Located in separate oil chamber to protect the motor
• Added protection of a heavy duty lip seal
Top discharge with a motor water jacket
• Slimline design reduces the chance of damage to the outlet in transit
• Allows for pumping within inches of the bottom, without risk of overheating
Hardened ductile iron volute
• Cast with extra thick walls (300 Brinnell hardness) is twice as abrasive resistant as standard ductile cast iron, which ensures greater durability
Replaceable wear plate
• Hardened surface on suction side inhibits the occurrence of erosion that could cause a reduction in pump performance
Large open strainer
• Protects from larger solids entering the pump
Lifting rings
• For easy lifting and transportation of the pump.
Dimensions (mm): 420L x 410W x 820H
Weight: 130Kg
Suitable Fluids
Water containing soft solids and/or hard solids in suspension, up to 70% by weight. Some wear should be expected with hard solid pumping. Not suitable for explosive or flammable materials or fluids.
APPLICATIONS
• Ground & nuisance water removal
• Drainage from dams, sewer systems, tunnels, river improvement projects & construction sites
• Pumping of muddy liquid generated from industrial projects

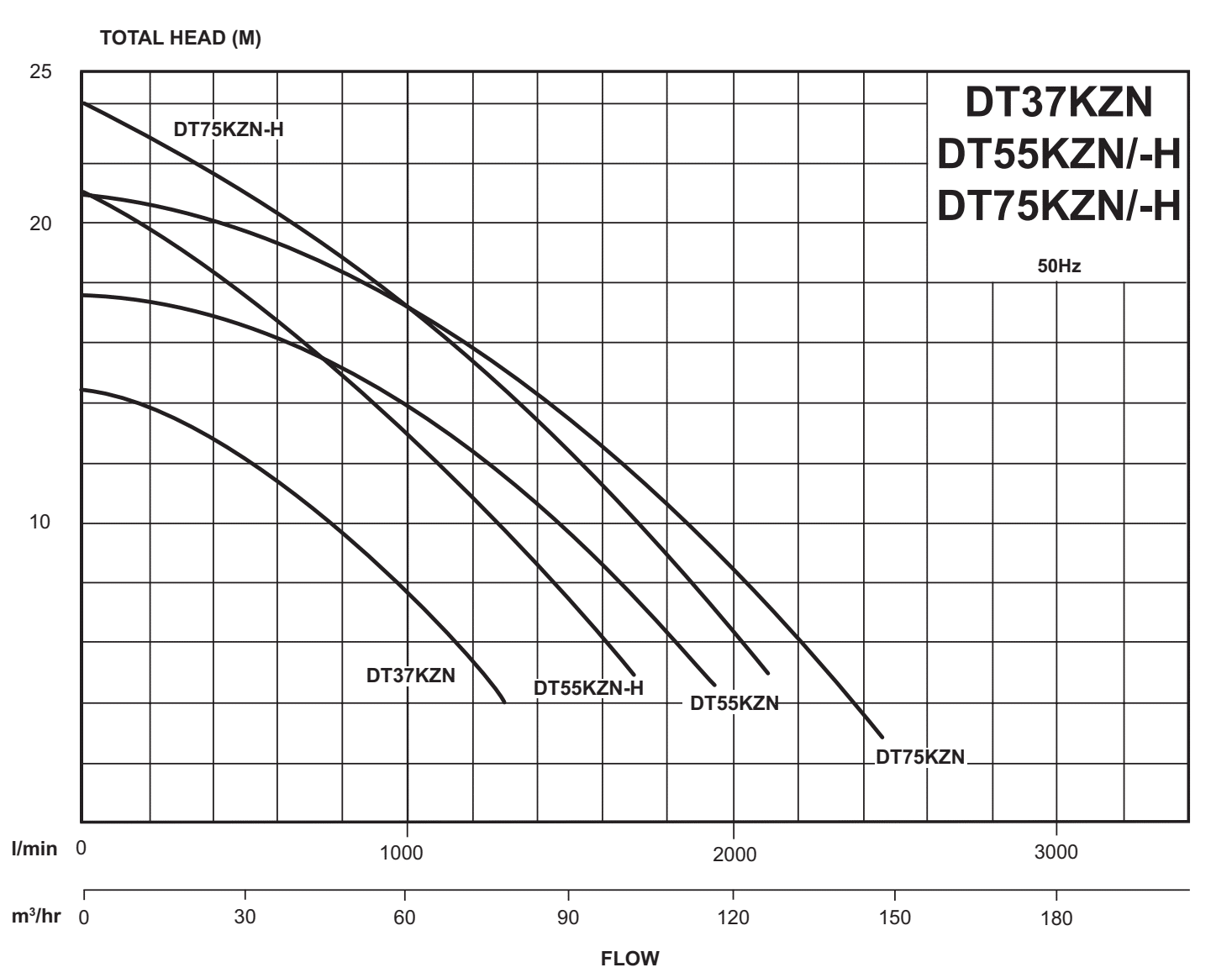

OPERATING LIMITS
Capacities to: 6500 lpm (390m3/hr)
Maximum total head: 35m
Maximum submergence: 15m
Maximum pumped water temperature: 40º C
Maximum Solids: 20mm
Discharge Port: 3″
Materials of Construction
Motor Top and Shell: FC200 cast iron
Pump body: FCD450 hardened ductile iron
Suction cover: High (23%) chrome iron
Agitator: High (23%) chrome iron
Discharge outlet: FC200 cast iron
Strainer: Steel
Impeller: High (23%) chrome iron
Lip seal: Nitrile
Pump shaft: 410 stainless steel
Mechanical seals: Dual silicone carbide
Seal and bottom bearing housing: FC200 cast iron
Fasteners and plugs: 304SS
Power supply leads: HO7RNF
ELECTRICAL DATA
Supply voltage 380-415V / 50Hz
Cable length (m) 10m
Speed (rpm) 1450
Insulation class H
IP rating x8
Starting DOL
Motor kW size (P2) 3.7/5.5
Input kW size (P1) 4.4
Start Amps 50
Run Amps 8
