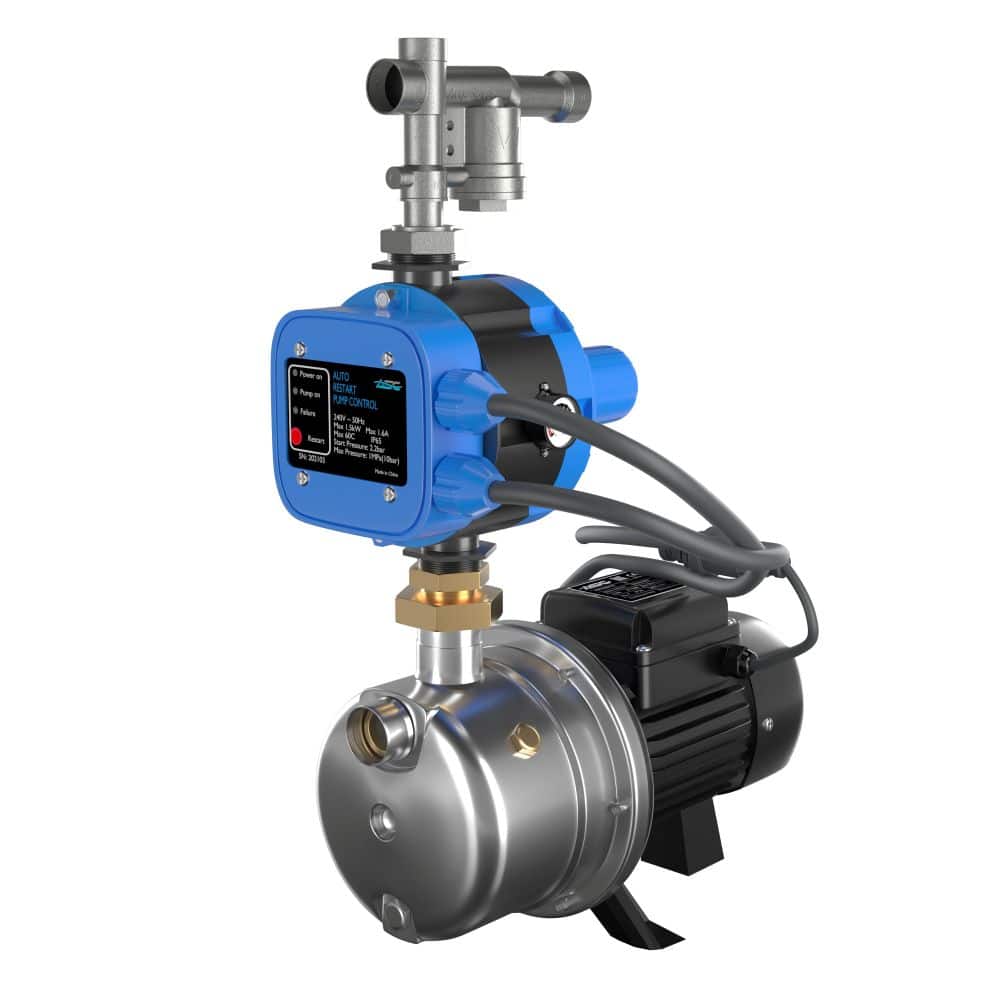

ASC AJ60 Acquasaver Water Switch Pump
The AJ60 Acquasaver water pump is an ASC J40/60 domestic pump with a ¾” Acquasaver. This is a single storey suitable self priming water pump, designed for use where you need mains backup for toilet flushing, laundry and garden use. This pump will switch between tank water supply and mains water supply automatically when the water level drops in your water tank.
The AJ60 is self priming and will automatically re-prime in the event of running dry from your water tank. The pump is suitable for domestic and garden application. The ASC AJ60 comes with an automatic restart pressure controller that will start and stop the pump on demand, and also includes dry run protection.
Pump Characteristics:
- Automatic Pressure Controller to turn the pump on and off on demand, with built in dry run protection.
- Run dry protection to prevent pump damage.
- Automatic electronic control has in-built check valve to prevent water back flow through the pump.
- 2.2bar pump cut in for greater versatility.
- Corrosion resistant pump body, diffuser and stainless steel impeller to ensure pump durability.
- High quality mechanical shaft seal and high quality bearings.
- 240V single phase TEFC motor with in-built auto reset thermal overload to prevent the pump from overheating.
- IP55 Protection / Insulation F
- 9m suction head
- Suitable for medium size garden irrigation and single storey or small townhouses.
Technical Specifications
Brand | ASC |
Product Type | Pressure Pump |
Suitable For | Toilet, Laundry, Garden domestic and commercial |
Bar | 4.0 Bar |
Approval | Drinking Water AS/NZS 4020 |
Flow Rate (L/min) | 60L/min |
Hp | 0.75 Hp |
kPa | 400 kPa |
Kilo Watts | 0.55 kW |
Max Head (m) | 40m |
Pump Inlet Size Mains Inlet Size |
1″ BSP F ¾” BSP F |
Domestic Outlet Size | ¾” BSP F |
Powered | Electric |
Taps | 3-4 Taps |
Warranty (months) | 24 months warranty |
Volts | 240 V |
Current | 2.39A |
Body | Stainless Steel |
Impeller | Polypropylene |
Mechanical Seal | Carbon/Ceramic/Nitrile |
Pump Size | 359L x 205W x 481H |
Pump Weight: | 12.34kg |
Box Weight: | 14.34kg |
Box Dimensions: | 430L x 230Wx 420H |
Pump Warranty Options: ASC Water Tanks offers a two year warranty for it’s domestic water pump range. We also offer a three year option and a five year option which must be purchased at the time of your water pump purchase. Within the warranty period, we cover the pump for all manufacturing defects. This however does not cover seals, as seals are a wearing part and need to be replaced with normal wear and tear. ASC Domestic Surface mounted pumps are need to be covered and protected from the rain. We recommend a pump cover or a suitable means to cover the pump to be eligible for warranty claims. Need more information. Click here for more information on our pump installation guide and pump warranty.
Why Choose ASC Water Pumps?
Premium Stainless Steel Housing
ASC Domestic Water Pumps are made from premium stainless steel. This ensures your pump does not rust from long term exposure to water and is suitable for both coastal and urban environments.Auto Pressure Controller
Our ASC domestic range of pumps comes standards installed with a 2.2bar cut-in auto restart pressure controller. This allows your pump to run automatically as you open and close taps, and also has a built-in run dry protection.Plug & Play Leads
The ASC surface mounted pumps include a plug and play lead between the controller and motor as well a brass barrel union. This allows for ease of installation, priming of the pump and servicing.JET & Horizontal Multistage
In our domestic surface mounted pumps, we offer a solution in both JET self priming pumps that can lift water from depths of 8m and horizontal multistage high pressure water pumps for whole of house and irrigation water pumps.![](https://asctanks.com.au/wp-content/uploads/2021/08/pump2-1.26.jpg)
